• Model NO.：ZDYG-2088T
• Deeppest Depth：Underwater 2 Meters
• Inlet Preasure：0.3~3MPa
• Resolution：0.01ntu
• Accuracy：<Fs +,- 2%
• Power Supply：12V
• Weight：3kg
• Transport Package：Carton Box
• Trademark：BOQU
• Origin：China
• HS Code：9027809900
• Production Capacity：500,M

Basic Info.

Model NO. ZDYG-2088T Deeppest Depth Underwater 2 Meters Inlet Preasure 0.3~3MPa Resolution 0.01ntu Accuracy <Fs +/- 2% Power Supply 12V Weight 3kg Transport Package Carton Box Trademark BOQU Origin China HS Code 9027809900 Production Capacity 500/M

Product Description

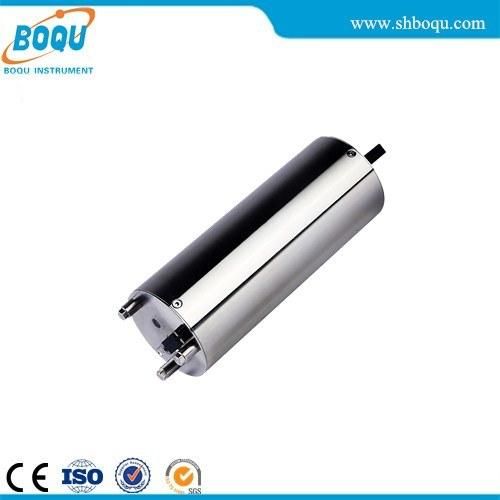

                            ZDYG-2088T Online Sludge Concentration Sensor




Technical Indexes:

1. Sludge concentration sensor: 0~50000mg/L

2. Inlet pressure: 0.3~3MPa

3. Suitable temperature: 5~60ºC

4. Output signal: 4~20mA

5. Features: Online measurement, good stability, free maintenance

6. Accuracy: <FS (Full scale) ± 2%

7. Reproducibility: <FS± 1%

8. Resolution: 0.01NTU

9. Hourly drift: <0.1NTU

10. Relative humidity: <70%RH

11. The power supply: 12V

12. Power consumption: <25W

13. Dimension of the sensor: Φ 48 x133mm (Not including the suspension attachment)

14. Weight: 3kg

15. Sensor material: 316L stainless steel

16.Deeppest depth:Underwater 2meters

Features

1. Check and clean window every month, with automatic cleaning brush, brush a half hour

2. Adopt sapphire glass realize easy maintain, when cleaning adopt scratch-resistant sapphire

glass, don't worry about the wear surface of window.

3. Compact, not fussy installation place, just put in to can complete the installation

4. Continuous measurement can be achieved, built-in 4~20mA analog output, can transmit data to

the various machine according to the need.

Online turbidity sensors for on-line measurement of scattered light suspended in the degree of opaque liquid insoluble particulate matter produced by the body
and can quantify levels of suspended particulate matter. Can be widely used in site online turbidity measurements, the power plant, pure water plants, sewage treatment plants,
beverage plants, environmental protection departments, industrial water, wine industry and the pharmaceutical industry, epidemic prevention departments, hospitals and other departments.



FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: We can offer the sample, it is extra

Q: What is your terms of payment ?
A: 100% T/T in advance ,balance before shippment.
