Laboratory Multi Parameter Semi Automatic Polarimeter Pol-200
Wincom Company Ltd.- Wavelength :589nm
- Light Source :LED + Interference Filter
- Applicable Tube Length:50,100 , 200mm
- Data Storage: 100 Groups
- Transport Package:Cartons
- Specification:ISO
Base Info
- Model NO.:POL-200
- Trademark:wincom
- Origin:Hunan
- HS Code:90275000
- Production Capacity:1000PC,Month
Description
Basic Info.
Model NO. POL-200 Trademark wincom Origin Hunan HS Code 90275000 Production Capacity 1000PC/MonthProduct Description

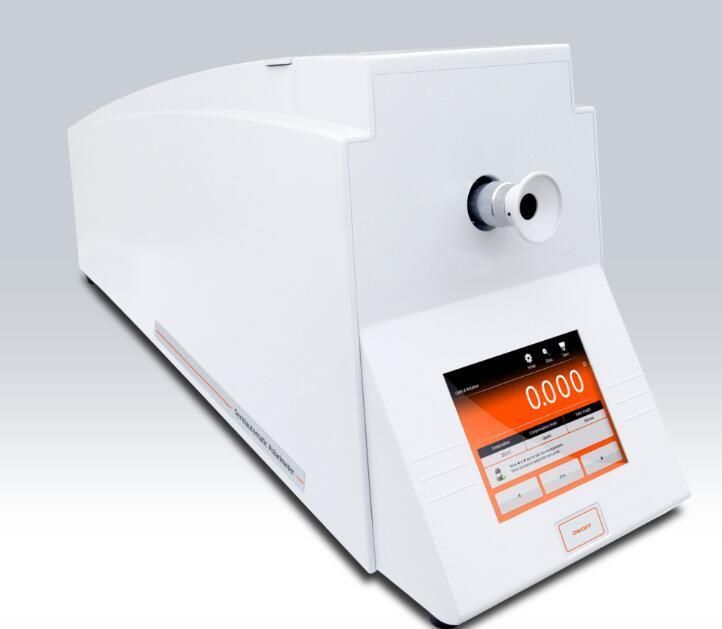

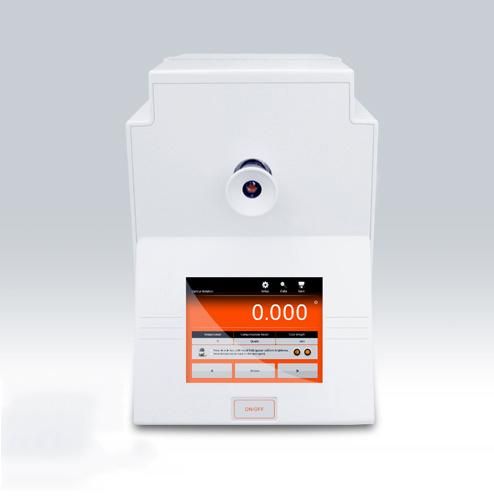

Laboratory Multi-parameter Semi automatic Polarimeter POL-200

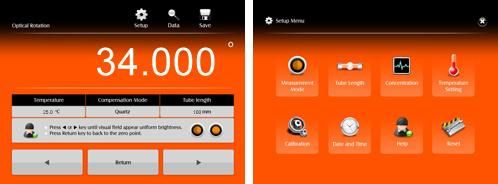

Colorful touch screen
Multi-parameter semi-automatic polarimeter is equipped with 4.5 inches touch screen, 1 to 3 point calibration, built in system menu can be set to a number of functional parameters, measuring optical rotation, Specific rotation, concentration and Brix of optically active compound solution.
Functional characteristics:
- High-performance multi-parameter semi-automatic polarimeter, equipped with 5.6 inches color touch screen.
- Four selectable measurement functions, including optical rotation, specific rotation, concentration and international Brix (International Sugar Scale).
- Long-life LED + 589nm filter, avoiding the traditional light source 200 hours of service life limit.
- Built-in temperature sensor, real-time sensing of the sample chamber temperature changes.
- Touch button design, just press <or> key to start the measurement process.
- Auto-zero system, a key recovery instrument to the optical zero.
- Automatic temperature compensation, measurement of specific rotation instant conversion to the value at 20 ° C of.
- Optional tube length (100,200mm or custom), automatic calculation of the standard measurement of non-standard tubes.
- The user to adjust the optical field of view and delete the zero error.
- 1-3 point calibration to ensure measurement accuracy over the full range.
- Automated information tips to help users understand the current executable steps.
- 100 sets of data storage, automatic marking time, date and enter the sample name in English.
- USB communication interface to store data that can be sent to the PC.
- Built-in text file detailing the instrument use.
- A key reset function (Reset), the instrument automatically restored to factory condition.
- Multi-language version of choice, fit the user's application requirements.
Technical Parameters
Measurement mode | Optical rotation, specific rotation, concentration, Brix (ISS) |
Measurement Range | ± 90 o / ± 130o Z |
Accuracy | ±0.02o / ± 0.05oZ |
Display Resolution | 0.005 o |
Wavelength | 589nm |
Light source | LED + interference filter |
Applicable tube length | 50/100 / 200mm |
Temperature measurement range | 0 ~ 100 ° C |
Temperature measurement accuracy | ± 0.5 ° C |
Display Resolution | 0.1 ° C |
Data Storage | 100 groups |
Communication output | USB |
Language | English(Order No. POL-200-EN) |
Monitor | 5.6 inches TFT touch screen |
Dimensions | 550 (L) × 300 (width) × 220 (H) mm |
Instrument | Weight 7.5kg |
Accessories | 100mm glass tubes, 200mm glass tubes, Power line |
Packaging & Shipping:
Paper packing, wooden packing or Foam packing,as your requirement.
