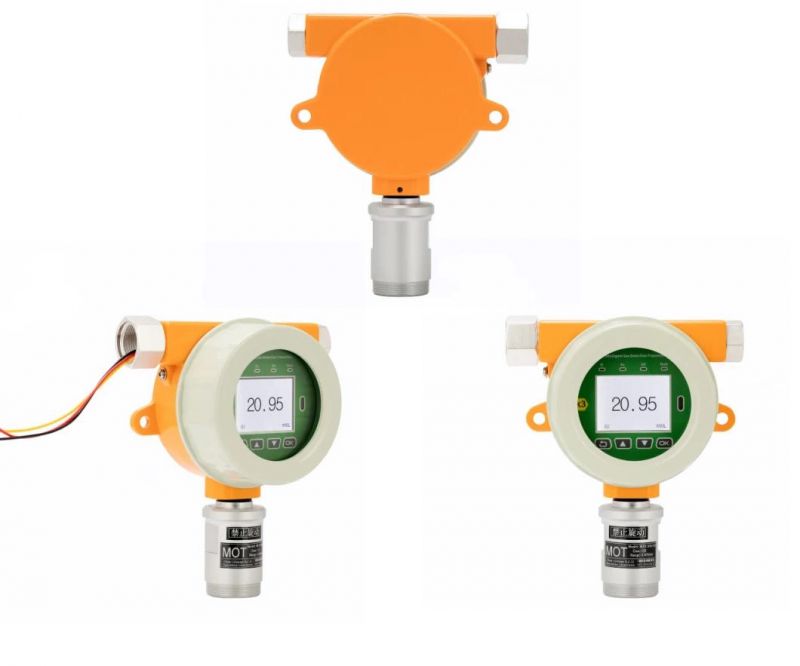

LED Display Online Fixed Propane Gas Detector (C3H8)
Shenzhen Korno Import & Export Co., Ltd.- Brand：Korno
- Customized：Customized
- Portable：Non Portable
- Certification：CE, CPA, CMC, Cnex, ISO, OHSAS
- Gas：C3h8
- Type：Infrared Absorption Analyzer
Base Info
- Model NO.：MOT500-C3H8
- Analog Digital Output：4-20mA Output(0-5V, 0-10V Optional)
- Material：Aluminum, Explosion and Corrosion Proof
- Operating Pressure：0-200kpa
- Modbus Digital Output：RS485 Output
- IP Rating：IP 66
- Explosion Proof Sign：Exdll CT4 (Ia)
- Power：24VDC
- Relay Output：2-3 Relays Output
- Display：LCD Displayed
- Sampling：Diffusion
- Transport Package：Standard Carton Packaging 26*21*14cm
- Specification：Product size: 20*17*8cm
- Trademark：Korno or customized
- Origin：China
- HS Code：9027100090
- Production Capacity：10000pieces,Month
Description
>>> Details:
4-20mA output
Commonly Gas Detection list:
| Gas | Detection Range | Resolution | |
| 1 | Ammonia(NH3) | 0-50,100,500,1000,5000PPM | 0.01(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM) |
| 2 | Bromine(Br2) | 0-10,50,100,200PPM | 0.01PPM(0-100PPM),0.1PPM(0-200PPM) |
| 3 | Combustiable Gas (EX) | 0-100%LEL | 0.1%LEL |
| 4 | Carbon Monoxide(CO) | 0-100,500,1000,2000,5000,10000,40000PPM | 0.1PPM(0-1000PPM,1PPM(0-40000PPM)) |
| 5 | Carbon Dioxide(CO2) | 0-2000,5000,10000,50000PPM,20%,50%,100%VOL | 1PPM(0-50000PPM),0.01%VOL(0-100%VOL) |
| 6 | Chlorine(CL2) | 0-10,20,50,100,200,500,1000,2000,5000PPM | 0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM) |
| 7 | Formaldehyde(CH2O) | 0-10,20,50,100,500,1000PPM | 0.01PPM(0-100PPM),0.1PPM(0-1000PPM) |
| 8 | Fluorine Gas(F2) | 0-1,10PPM | 0.001PPM(0-10PPM) |
| 9 | Hydrogen Sulfur(H2S) | 0-50,100,500,1000PPM | 0.01PPM(0-100PPM),0.1PPM(0-100PPM) |
| 10 | Hydrogen(H2) | 0-500,1000,5000,20000,40000PPM | 0.1PM(0-1000PPM),1PPM(0-40000PPM) |
| 11 | Methane(CH4) | 0-1000,5000,10000,50000PPM,0-20%,50%,100%VOL | 1PPM(0-50000PPM),0.01%VOL(0-99.99%VOL) |
| 12 | Nitrogen(N2) | 0-100%VOL | 0.01%VOL(0-99.99%VOL),0.001%VOL(0-99.999%VOL) |
| 13 | Nitric Oxide(NO) | 0-1,50,100,250,500,1000,2000,5000PPM | 0.001PPM(0-1PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM) |
| 14 | Oxygen(O2) | 0-5000,10000,30000PPM,5%,30%.100%VOL | 1PPM(0-30000PPM),0.01%VOL(0-100%VOL) |
| 15 | Ozone(O3) | 0-1,2,5,10,20,50,100,500,1000,2000,5000,10000,30000PPM | 0.001PPM(0-1PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-30000PPM) |
| 16 | Phosphine(PH3) | 0-5,20,50,100,500,1000,2000,4000PPM | 0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-2000PPM) |
Our certificates:
Company Information:
Main Products:Handle gas detector,Portable gas detector,Online gas detector,Controller,Gas pretreatment System,ect.
Mangement Team: R&D departments,Processing Plants,Assembly Plants,After-sale Technical Support Departments,Domestic Sales and Overseas Sales Departments,ect.
Main Markets:Asia ,Europe and America,more than 30 countries.
Customize Service:1) Show your company name and logo at the boot interface
2) Print your company name,information,logo at the label and manual
3) Design stainless steel nameplate with your company name for free(≥20PCS)
4) We can also silk-printing your Logo,design another color of the case for you
if you have a large order.For more details,please contact us^ ^
Our customers:Mordoch University,HUANGKUANG University ,Humboldt University Berlin, S.P.Refinery.CO.,Ltd,China National Petroleum Corporation,etc.
Our service:
- All products and accessories have been 100% tested before shipping.
- We provide 12-Mounths warranty for non-deliberate damage.
- OEM & ODM are welcomed~
