• Model NO.：IT-800
• Testing Range：0-200mn,M
• Sensitivity：0.1mn,M
• Transport Package：International Standard Export Wooden Case
• Specification：185*260*360mm
• Trademark：TOP Oil Tester
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：2000 Sets Per Month

Basic Info.

Model NO. IT-800 Testing Range 0-200mn/M Sensitivity 0.1mn/M Transport Package International Standard Export Wooden Case Specification 185*260*360mm Trademark TOP Oil Tester Origin Chongqing, China HS Code 9027809900 Production Capacity 2000 Sets Per Month

Product Description

Automatic Transformer Oil Diesel Oil Lube Oil Surface Tensiometer (IT-800)

Application
IT-800 analyzer, adopts ASTM D971 "platinum ring method", testing interfacial tension for various liquids (between liquid and air) and also between mineral oil and water(between liquid and liquid) by means of automatic control of internal microcomputer under circumstances of nonequilibrium.You only need to pour the sample into sample cup and  press "start" button. Then the tester will finish the whole test and calculate the tension value automatically according to concrete input parameters.

Features
1.Large color LCD screen, English prompt, menu operation, fully automatic testing.
2.Automatic temperature compensation within 25ºC  prevents the temperature from affecting the tension value.
3.Functions of auto correction, auto testing, calculation, results displaying, and storage under power off state.
4.The main body is equipped with hurricane globe, which lessens the influence that outer matters impose on testing results.
5.Automatic lift of the lift platform ensures a stable environment and high accuracy.
6.It adopts enclosed magnetic pot type sensor and multi-point calibration of uniform space technology, which improves the repeatability and reproducibility of the results.
7.It can work independently and can also realize network management via connection with laptops or microcomputers through USB interface.
8.Tester program can be updated accordingly if related national standard is revised.

Technical Parameters

Method of Display	large LCD display screen, in English
Method of Testing	Platinum ring method
Testing Range	0-200mN/m.
Sensitivity	0.1mN/m
Accuracy	±0.1mN/m
Self-checking	Breakdown auto diagnostics
Temperature Compensation	Automatic temperature compensation
Power	Less than 40W
Dimension	185×260×360mm
Working Environment	Temperature:10ºC-40ºC; Humidity: ‹80%
Power Supply	AC220V±10%, 50HZ±2.5HZ
Weight	About 15kg

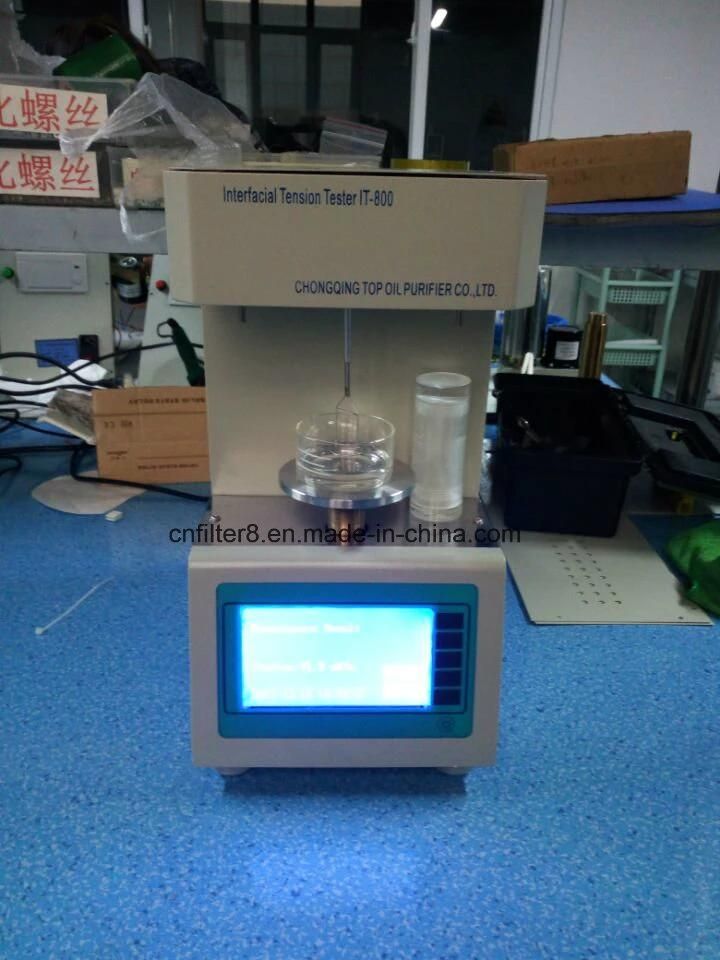

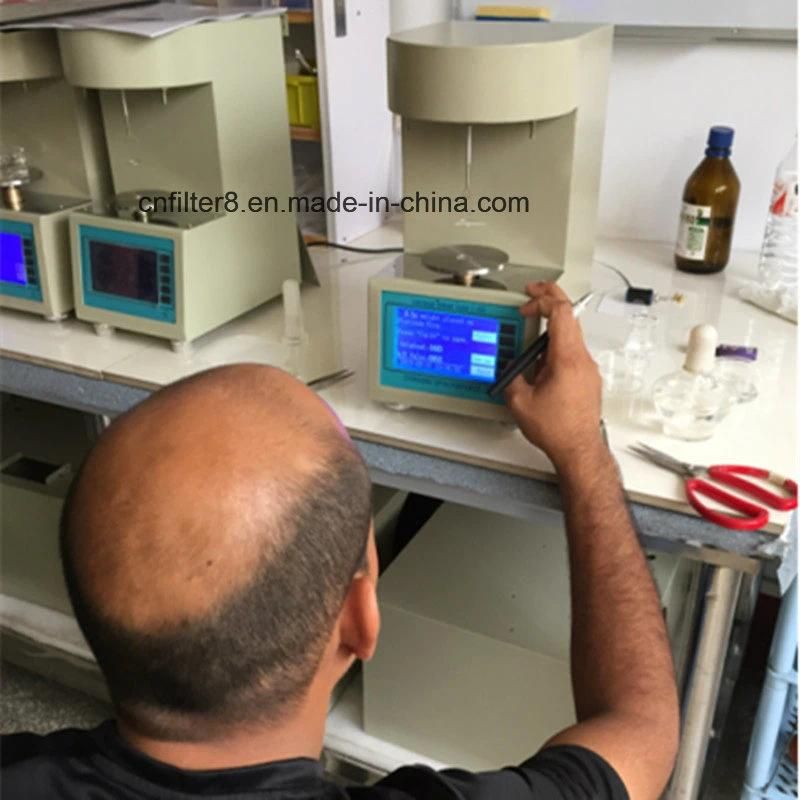

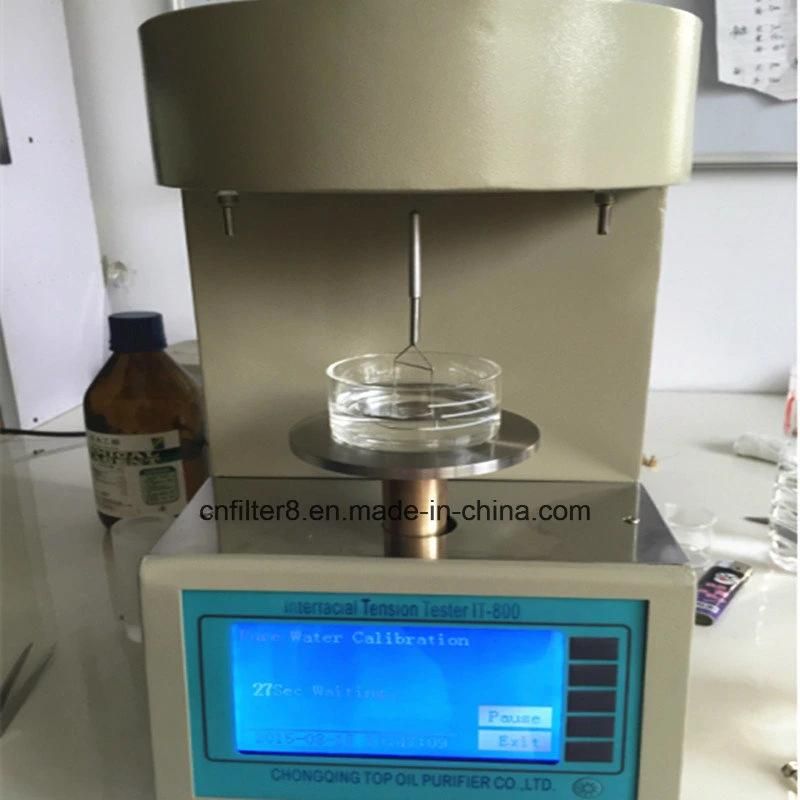

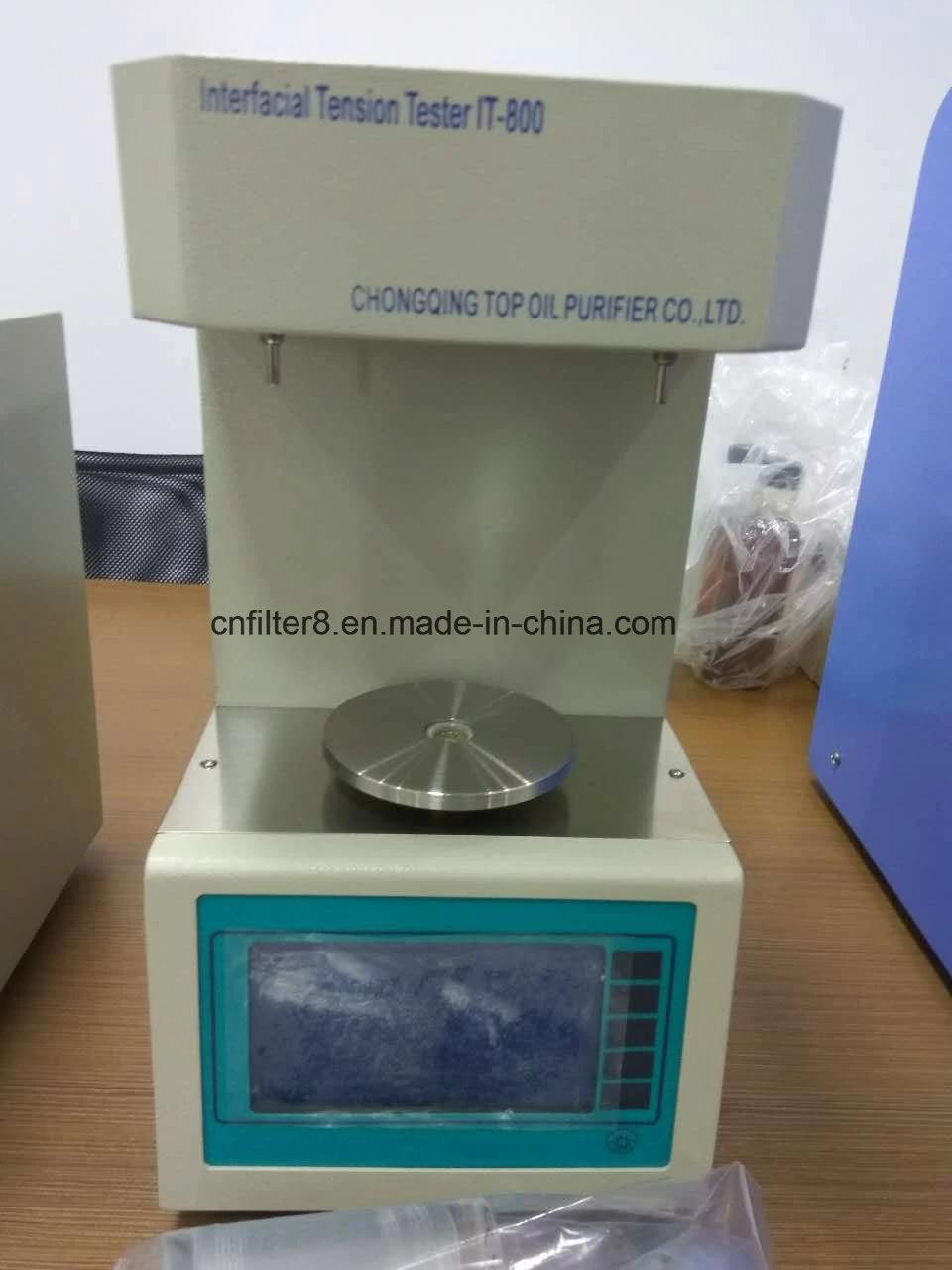

Detailed Image





For more details, please contact me freely!


About Us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They play a great role in reducing energy consumption for clients as well as environmental pollution. We provide you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, and waste oil recycling equipment etc.

TOP Testers work on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers,and  high voltage testing equipment etc.

Our Testers
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Multi-functional Vibration Tester VBT-2000
9.Petroleum Products Density Tester DST-3000
10.Distillation Range Tester DIL-201
11.Liquid Phase Corrosion Tester TPS-05
12.Copper Corrosion Tester TP-113
13.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
14.Dew Point Tester DPME-P
15.Vehicle Gear Oil Channel Point Tester Model TP-0030
16.Anti-Corrosive Oil/Grease Salt Spray Corrosion Tester Model TP-0081
17. Mechanical Impurities Tester Model PC-511
18. Air Release Value Tester Model TP-0308
19.Distillate Fuel Oil Oxidation Stability Tester Model TP-175
20. Foam Characteristics Tester Model FC-892
21.Dark Petroleum Products Sulfur Content Tester Model TPC-120
22. Petroleum Products Aniline Point Tester Model TP-262A
23.Petroleum Products Ash Tester Model TP-508
24.Petroleum Products Chroma Tester Model TP-225
25. Automatic Petroleum Products Carbon Residue Tester (Micromethod) CS-0625
26.Spontaneous Ignition Point Tester FP-706
27.Fully Automatic Glassware Washing Machine TP504
28. Lube Oil/Grease Evaporation Loss Tester EL-7325
29. Crude Oil And Fuel Oil Sediment Tester TP-130
30. Wide Temperature Range Lubricating Grease Drop Point Tester TLS-22
31. Crude Oil And Petroleum Products Salt Content Tester SCA-068
32. Petroleum Products Saturated Vapor Pressure Tester(Reid Method) TP-8017
33.Petroleum Products Freezing Point Tester TP-2430
34. Oxygen Bomb Calorimeter TP-1B
35. Existent Gum Tester TP-509A
36.Octane and Hexadecane Value Tester TP-131
37.Automatic Gasoline Oxidation Stability Tester TP-148
38. Light Petroleum Products Sulfur Content Tester (Lamp-Kindled Method) TP-119
39. Resistant oil Chlorine Content Tester TP388
40. Distillate Fuel Mercaptan Sulfur Tester TP-624

Service Commitment
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.

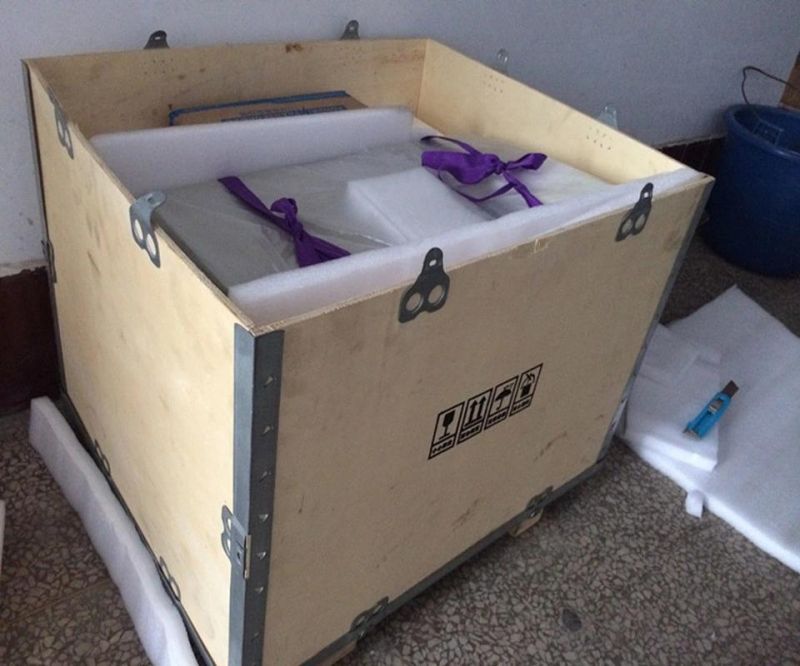

Package & Delivery
Packaged in international standard export wooden case

*Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.
*Appointed logistics company could be used according to customers demands.
* Do our best to make sure customers can get their goods in time.
