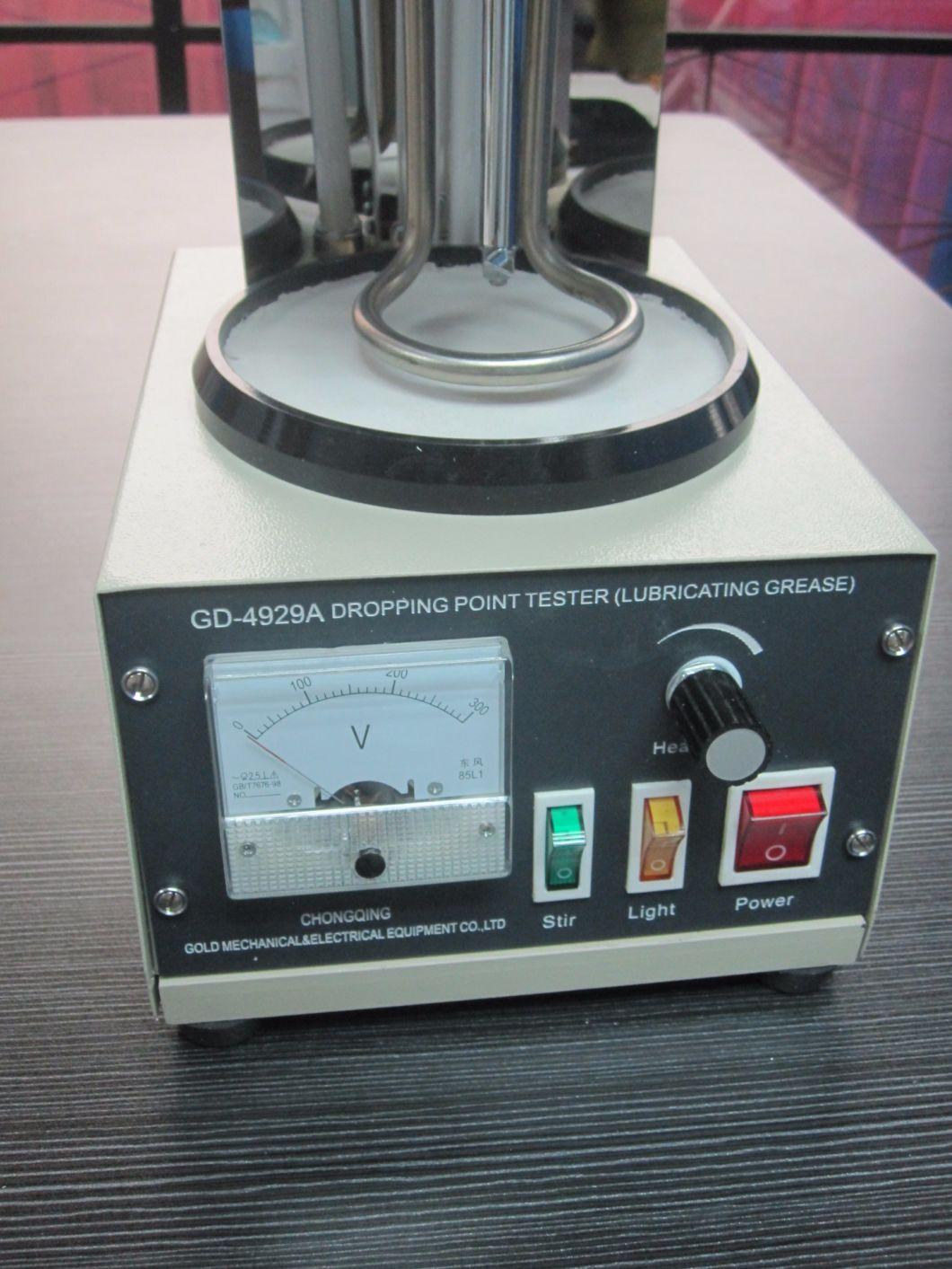

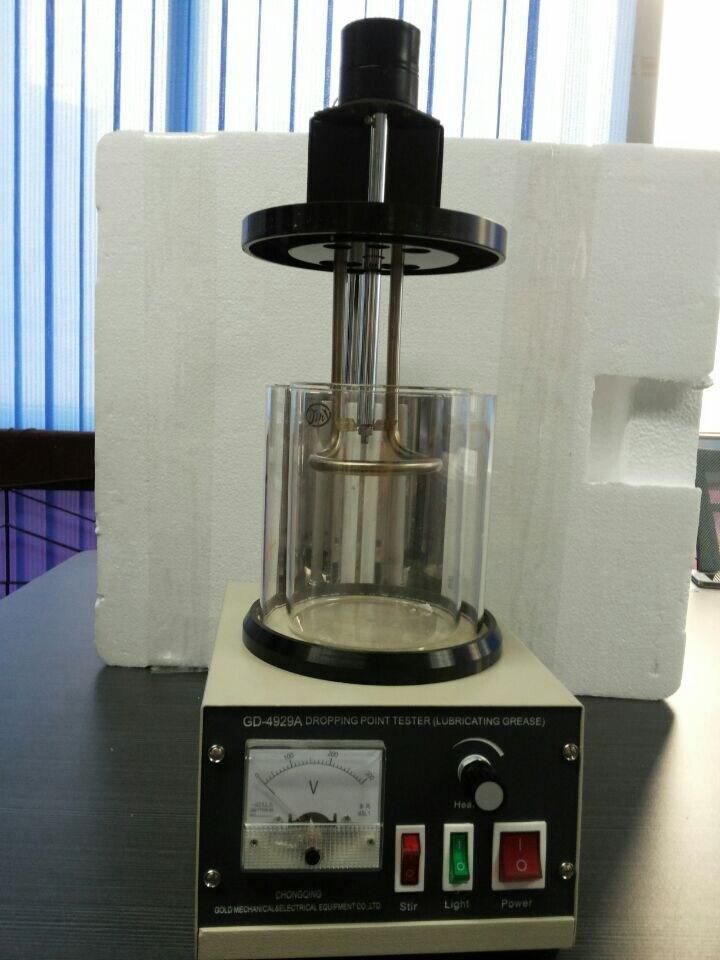

• Model NO.：GD-4929A
• Distillation Flask：125 Ml
• Warranty：1 Year
• Maximum Power Consumption：900 W
• Test Standard：ASTM D566
• Transport Package：Plywood Case
• Specification：350mm*180mm*410mm
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Set,Sets Per Month

1Power supplyAC 220 V±10%, 50 Hz2Oil bath600 ml beaker.3Grease cupMade of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.4Test tubeA tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.5Thermometer-5ºC~300 ºC,scale value is 1 ºC. Its total length is 390 mm and the depth immersed is about 76 mm.6HeaterTubular. Power 800 W.7Stirring motorRotating speed 60 RPM8Ambient temperature-10ºC~+40 ºC9Relative humidity≤85%10Maximum power consumption900 W11Dimension350mm×180mm×410mm
