• Model NO.：OZORP1000
• Control Method：on,off Relay Tip
• Control Range：0~14pH
• Resolution Ratio：0.01pH 1mv
• Definition：0.01 pH 1mv
• Temperature Compensation：0~99.9 Degre
• Specification：Single package size: 30X25X20 cm
• Trademark：AQUAPURE
• Origin：Shenzhen, China
• HS Code：9031809090
• Production Capacity：10, 000, 000PCS,Year

Basic Info.

Model NO. OZORP1000 Control Method on/off Relay Tip Control Range 0~14pH Resolution Ratio 0.01pH 1mv Definition 0.01 pH 1mv Temperature Compensation 0~99.9 Degre Specification Single package size: 30X25X20 cm Trademark AQUAPURE Origin Shenzhen, China HS Code 9031809090 Production Capacity 10, 000, 000PCS/Year

Product Description

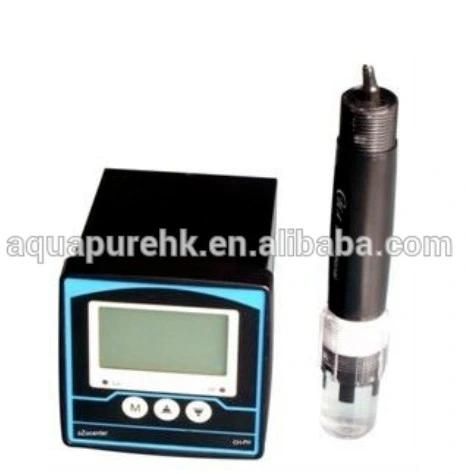

Ozone Ozone ORP Meter

Specification:

This small wall-mounte ORP meter is used for ozone measuring and controlling.

The LCD digital display makes it easy to set up and read for ozone water treatment applications.

It uses the Platinum or Gold electrode, which reversibly looses its electronis to the oxidizer (ozone) .

It measures very small voltages that generated with a probe placed in the ozonated water.

It is an ideal solution for you to control your ozone doing to the water automatically.



Features:

1 . With a probe that be placed in the ozonated water

2. The electrode of the probe is made of Platinum or Gold
3 .Can measure small voltages that generated from the probe.

4. Available for on-line measurements (24 Hours)

5. Available for water pressures <30 psi





Ozone ORP Meter/PH Meter for swimming pool / fish farm /sewage water purification

Product details

ORP Measuring Range	0~14pH  -1000~+1000mV
Control method	ON/OFF relay tip
Resolution ratio	0.01pH 1mV
Control range	0~14PH
Definition	±0.01 pH 1mV
Stability	≤0.02pH/24h
pH adjust range	0±4.5pH slope±30%
Output signal	4~20mA
Temperature compensation	0~99.9°C
Output signal load	MAX ≥10MΩ



What is ORP Meter?

ORP Meter is commonly used in measurement of Water Disinfection. ORP stands for Oxidation-Reduction Potential. So what is that? The best definition is that "ORP is a measure of the cleanliness of the water & its ability to break down contaminants". It has a range of -2,000 to + 2,000 and units are in "mV" (millivolts).



Properties and effect:

Since ozone is an oxidizer, we are only concerned with positive ORP levels (above 0 mV).

ORP sensors work by measuring the dissolved oxygen. More contaminants in the water result in less dissolved oxygen because the organics are consuming the oxygen and therefore, the lower the ORP level. The higher the ORP level, the more ability the water has to destroy foreign contaminants such as microbes, or carbon based contaminants. The chart on the below identifies ORP levels for various applications.



ORP Level (mV)	Application
0-150	No practical use
150-250	Aquaculture
250-350	Cooling Towers
400-475	Swimming pools
450-600	Hot Tubs
600	Water Disinfection *
800	Water Sterilization **

ORP level can also be viewed as the level of bacterial activity of the water because a direct link occurs between ORP level and Coliform count in water. The chart to the right lists ORP levels and relative Coliform counts.

ORP Level	Coliform count in 100 ml of water
200	300
300	36
400	3
600	0



Packaging & Shipping


PACKAGE:

Carton box

DELIVERY TIME:

1> samples------------within 3 days after payment arrive
2> batch orders-------2-30 days after payment deposit

About AQUAPURE

AQUAPURE is a company founded by German investors at the beginning. We are a professional ozone generator and plasma generator manufacturer specializing in the R&D, design, manufacture and processing of ozone/anion products.

We now have a series of high performance ozone generators /plasma generators with patents. We can design and manufacture products according to the customers' special demand.

We can offer you ideal products not only in high performance, but also with good price, because we combine high technology from Germany with low labor cost from China.

AQUAPURE products are making the world a much healthier place to live in, as they improve the quality of the air we breathe and the water we use.
