• Model NO.：HRLD600
• Sensitivity：5ppm.M
• Detection Distance：150m(Adjustable)
• Battery Voltage：DC3.7V
• Alarm Method：Visual and Audible
• Measuring Range：0-100, 000ppm.M
• Response Time：T90<0.05s
• Sensor Life：10 Years
• Audible Alarm：85dB@1m
• Protection Grade：IP66
• Explosion-Proof Degree：Ex Ib Iib T4 GB
• Dimension：220mm×80mm×90mm
• Weight：About 600g
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. HRLD600 Sensitivity 5ppm.M Detection Distance 150m(Adjustable) Battery Voltage DC3.7V Alarm Method Visual and Audible Measuring Range 0-100, 000ppm.M Response Time T90<0.05s Sensor Life 10 Years Audible Alarm 85dB@1m Protection Grade IP66 Explosion-Proof Degree Ex Ib Iib T4 GB Dimension 220mm×80mm×90mm Weight About 600g Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description

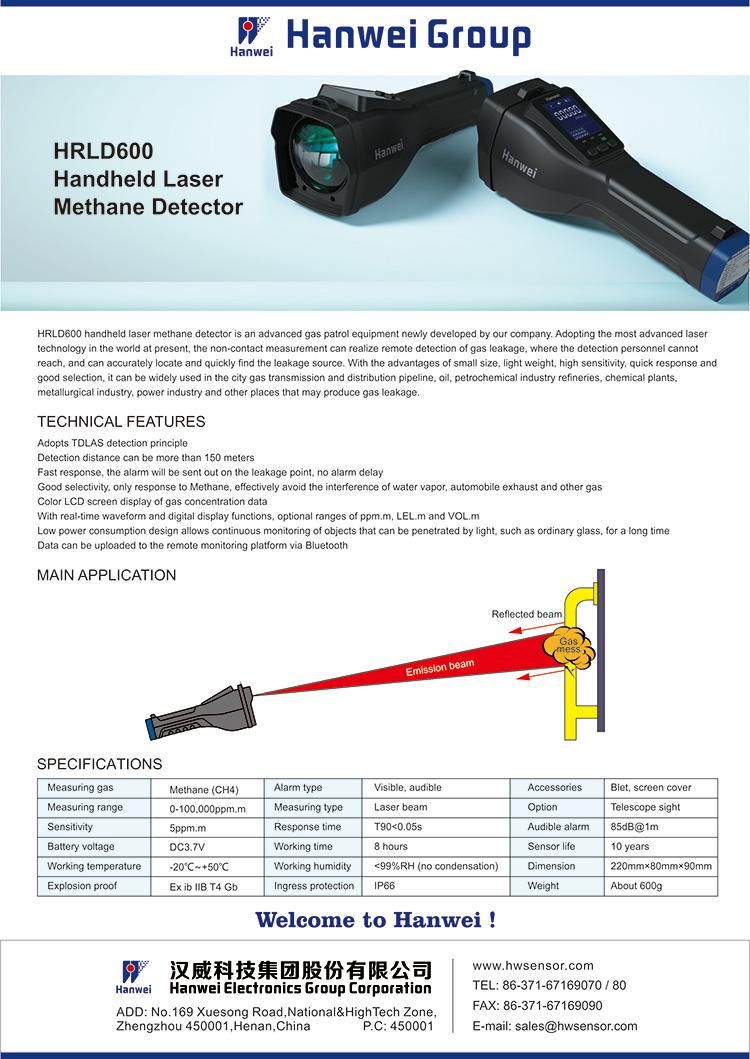

HRLD600 handheld laser methane detector is an advanced gas patrol equipment newly developed by our company. Adopting the most advanced laser technology in the world at present, the non-contact measurement can realize remote detection of gas leakage, where the detection personnel cannot reach, and can accurately locate and quickly find the leakage source. With the advantages of small size, light weight, high sensitivity, quick response and good selection, it can be widely used in the city gas transmission and distribution pipeline, oil, petrochemical industry refineries, chemical plants, metallurgical industry, power industry and other places that may produce gas leakage.

Applications
It can be widely used in the city gas transmission and distribution pipeline, oil, petrochemical industry refineries, chemical plants, metallurgical industry, power industry and other places that may produce gas leakage.

Features
Adopts TDLAS detection principle
Detection distance can be more than 150 meters
Fast response, the alarm will be sent out on the leakage point, no alarm delay
Good selectivity, only response to Methane, effectively avoid the interference of water vapor, automobile exhaust and other gas
Color LCD screen display of gas concentration data
With real-time waveform and digital display functions, optional ranges of ppm.m, LEL.m and VOL.m
Low power consumption design allows continuous monitoring of objects that can be penetrated by light, such as ordinary glass, for a long time
Data can be uploaded to the remote monitoring platform via Bluetooth

Technical Data
Measuring gas: Methane (CH4)
Alarm type: Visible, audible
Accessories: Blet, screen cover
Measuring range: 0-100,000ppm.m
Measuring type: Laser beam
Option: Telescope sight
Sensitivity: 5ppm.m
Response time: T90<0.05s
Audible alarm: 85dB@1m
Battery voltage: DC3.7V
Working time: 8 hours
Sensor life: 10 years
Working temperature: -20oC~+50oC
Working humidity: <99%RH (no condensation)
Dimension: 220mm×80mm×90mm
Explosion proof: Ex ib IIB T4 Gb
Ingress protection: IP66
Weight: About 600g

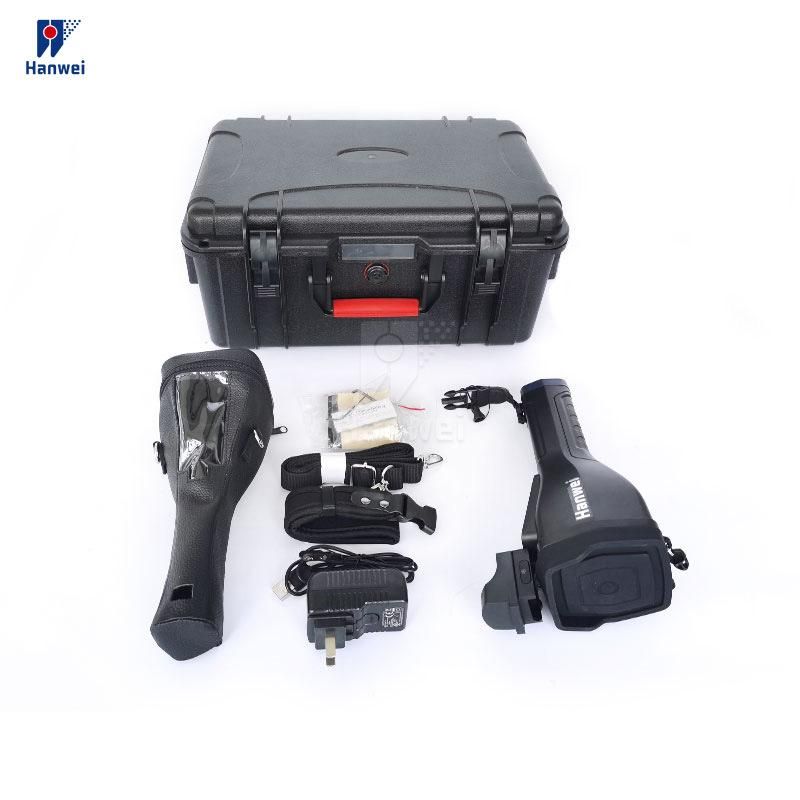

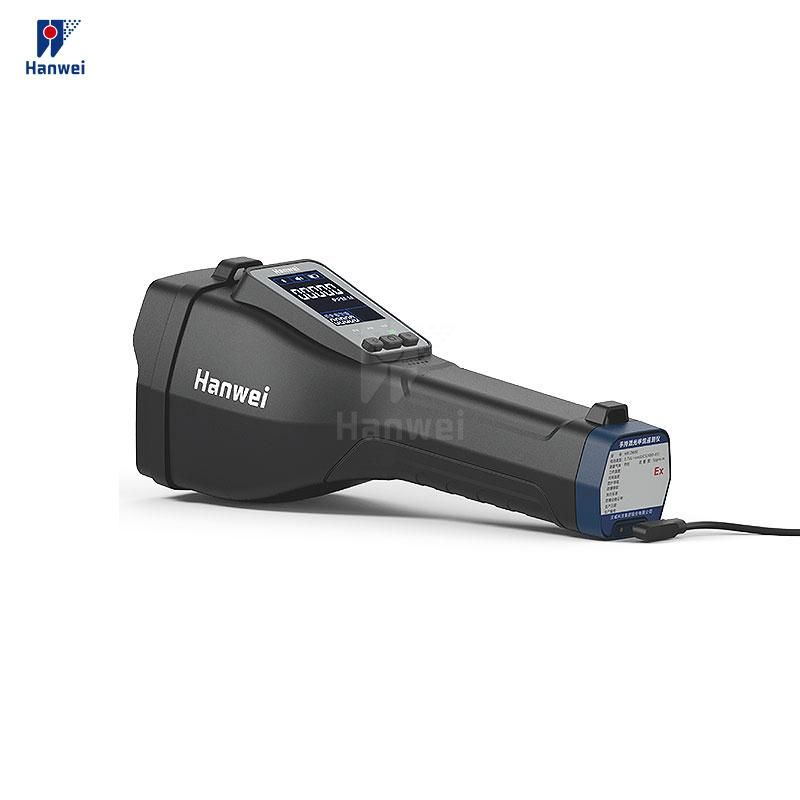

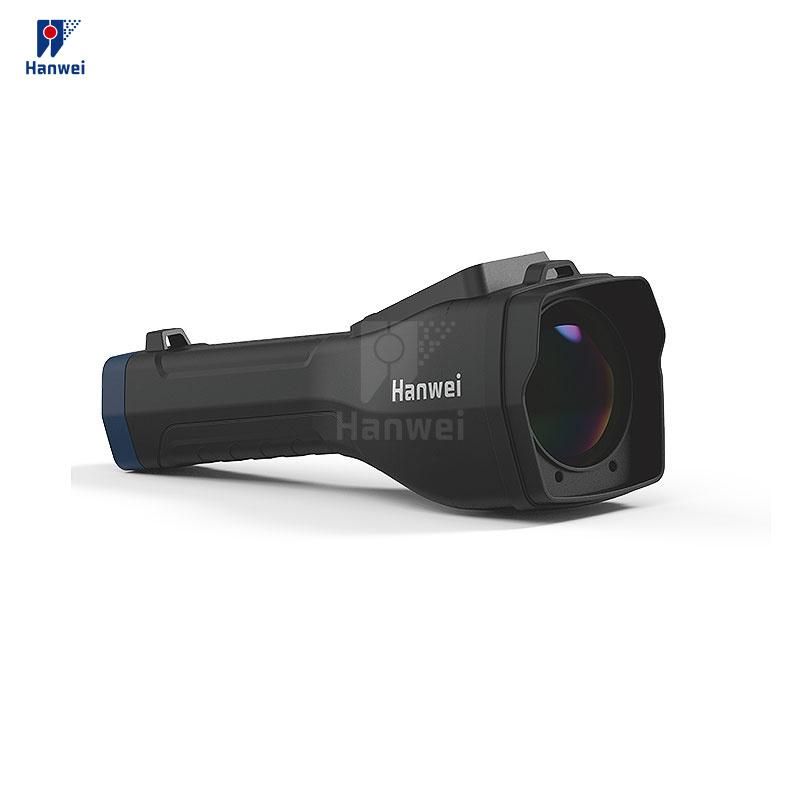

Product Pictures
