• Model NO.：CY-1000
• Accuracy：+-3%Fs
• Repeatability：1.5%Fs
• Response Time：T90<=5s
• Probe Length：0.6m, 0.7, 0.9m, 1m
• Transport Package：Standard Export Wooden Box Packaging
• Specification：144 * 144 * 250mm (W*H*D)
• Trademark：CYKY
• Origin：Zhengzhou, China
• HS Code：8411820000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-1000 Accuracy +-3%Fs Repeatability 1.5%Fs Response Time T90<=5s Probe Length 0.6m, 0.7, 0.9m, 1m Transport Package Standard Export Wooden Box Packaging Specification 144 * 144 * 250mm (W*H*D) Trademark CYKY Origin Zhengzhou, China HS Code 8411820000 Production Capacity 100pieces/Month

Product Description

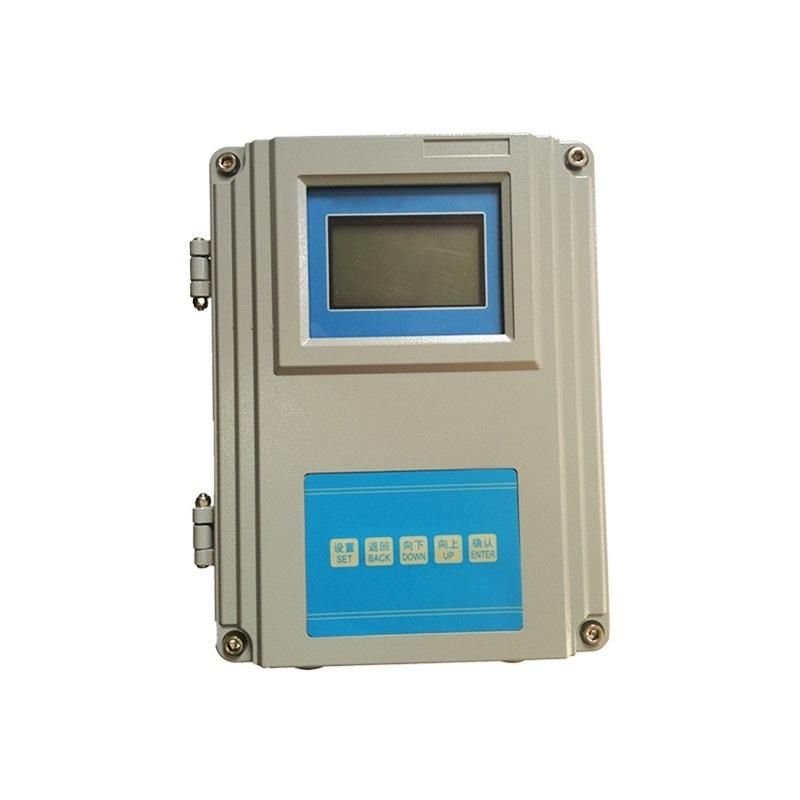

laboratory Zirconia Analyzer (Wall-mounted) with a full ceramic structure

Introduction of Zirconia Analyzer:
The zirconia probe adopts a floating temperature instrument with a full ceramic structure for applications where the measured gas temperature is 600 to 1200°C. It is suitable for all kinds of boiler, furnace, heat treatment and petroleum chemical industry, power plants and other furnace chamber that need coal and oil burning and heating and the measurement of oxygen content in flue, particularly suitable for the measurement of heat treatment furnace carbon potential, if used in conjunction with an automatic control device, it can timely and effectively control the flue baffle, throttle, damper, etc., to improve the combustion thermal efficiency, save energy, reduce pollution.

Application of Zirconia Analyzer:
It is widely used in power, metallurgy, heating, building materials, electronics and other departments to analyze the oxygen content of flue gas in various industrial boilers and kilns to improve combustion efficiency, save energy and reduce environmental pollution.

Technical parameters of Zirconia Analyzer:

Measuring range	0.1~25%O2
Accuracy	±3%FS
Repeatability	1.5%FS
Response time	T90≤5s
Output signal	4~20mA (load resistance≤750Ω), the measurement range corresponding to the output signal is: 0.1~5%, 0.1~10%, 0.1~25% and standard RS-232 interface
Measured value alarm upper and lower limit settings	The upper and lower limit setting values can be arbitrarily set within the measurement range corresponding to the output signal, and the alarm contact capacity is 220 VAC, 1 A
Sample gas temperature (temperature of oxygen probe insertion point)	600~1200ºC
Working environment temperature	converter: -5~50ºC, probe: -10~80ºC
Probe length	0.6m, 0.7, 0.9m, 1m
External dimensions and hole dimensions of the converter	Dimensions (disc mounted): 144 × 144 × 250mm (W×H×D) Hole size (disc mounted): 138 1×138 1mm Dimensions (wall-mounted): 240×293×155mm (W×H×D)

Related photos of Zirconia Analyzer:

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
