• Model NO.：JAY-120
• Accuracy：+,-3%
• Max Pressure：100kpa
• Max.Flow：8 Liters,Minute
• Power off Automatically：in 15 Minutes Without Singnal
• LCD Purity Display,：Between 21.0-99.9%
• Transport Package：Standard Carton Box
• Specification：120*70*30mm
• Trademark：LONGFIAN
• Origin：Hebei, China
• HS Code：90192000
• Production Capacity：60000PCS,Year

Basic Info.

Model NO. JAY-120 Accuracy +/-3% Max Pressure 100kpa Max.Flow 8 Liters/Minute Power off Automatically in 15 Minutes Without Singnal LCD Purity Display, Between 21.0-99.9% Transport Package Standard Carton Box Specification 120*70*30mm Trademark LONGFIAN Origin Hebei, China HS Code 90192000 Production Capacity 60000PCS/Year

Product Description

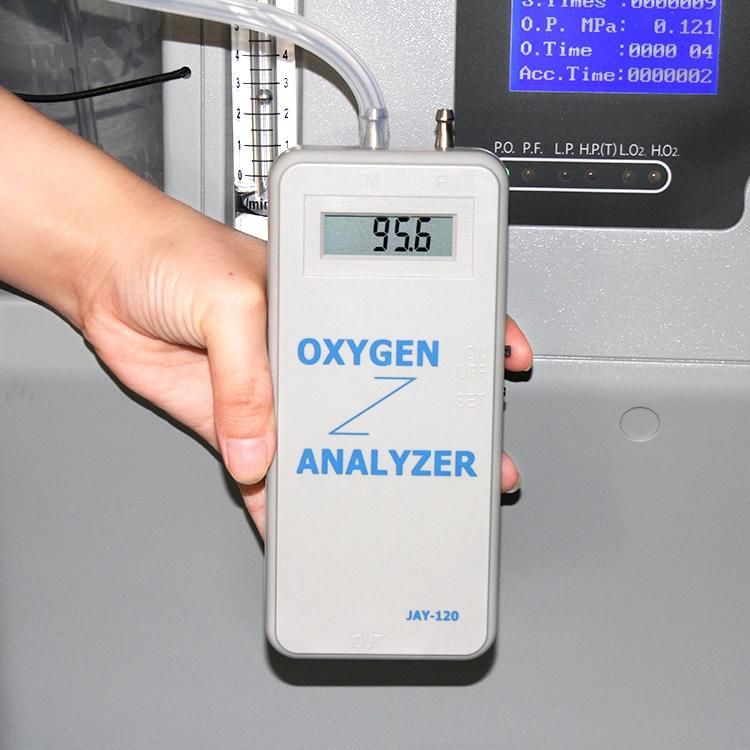

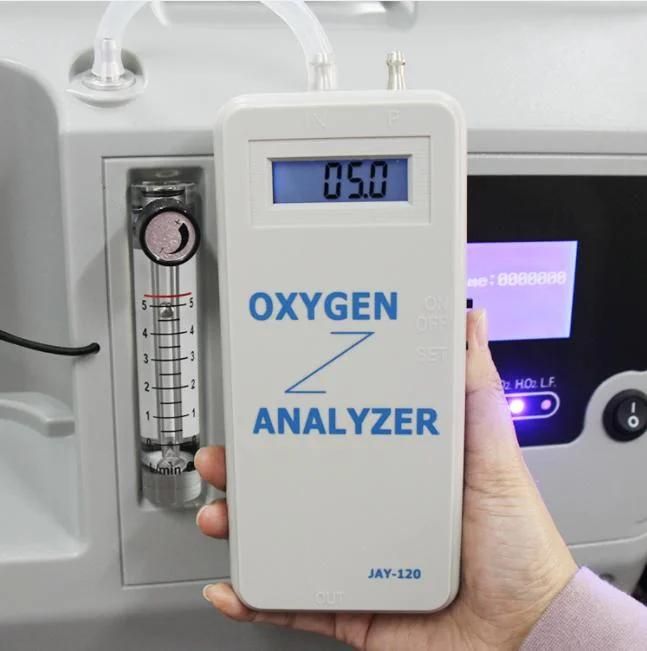

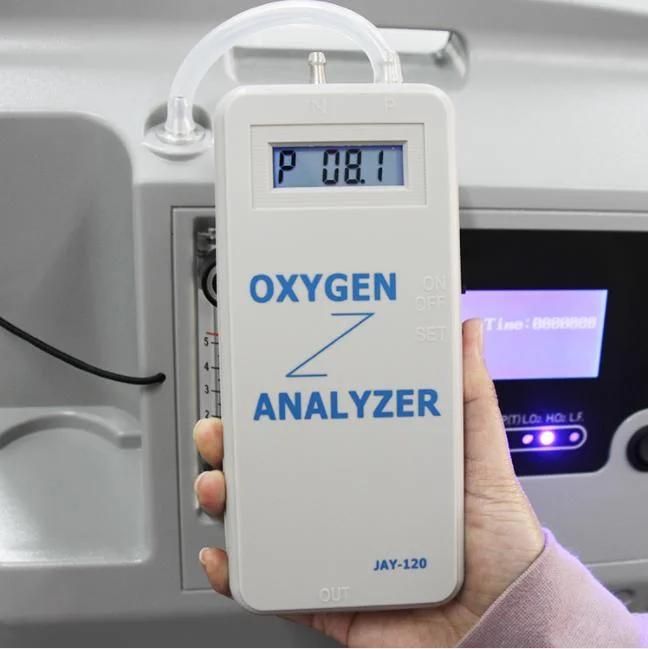

oxygen analyzer for PSA oxygen concentrator1.The oxygen analyzer is specially used for detecting the concentration of oxygen generated by molecular sieve oxygen concentrator. 2.The oxygen measurement we offer has high sensitivity. 3. Due to stable quality, our oxygen analyzer instrument can last over 5 years.4. This analyzer can measure the oxygen purity, oxygen flow rate and oxygen pressure
 Specifications

1. Accurancy: +/-2%
2. Max. Pressure: 60PSI
3. Max. Flow: 15liters/min.
4. Low battery Voltage reminding
5. Power off automatially in 15min. Without signal
6. LCD purity display, betwiin 21.0~96.0%.

Technical Parameter


Concentration Indication Range	21.0 % ~96.0 %
Measurement Accuracy	+/-2% F.S.
Operating Ambient Temperature	5~40 ºC
Operating Ambient Humidity	< 90%
Response Time	8s
Overall Dimension	83mm×31mm×190mm
Battery Model	6F22/9V tandem battery
Weight	250g with battery, 205g without battery
Max. Pressure	60PSI
Max. Flow	10L/min

Longfian Scitech Co., Ltd was established in year 2005, located in Baoding City, Hebei province, China. We are a professional manufacturer, specialized in the development, production and export of medical serial oxygen concentrators 1-120LPM with CE and ISO certificate, which have been widely applied in home care, hospital, clinics, beauty salon, sports, industry and high altitude area etc. In the meantime, some oxygen related products, such as ozone, oxygen cocktail device, are developed also upon the demands of the market. Our products has been exported to Unite States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 160 countries, enjoy a high reputation in interational market.

Our goal is professional in quality, focus on various oxygen concentrator&oxygen related products, and continue to bring you not only reliable, quality products, but also bring you a better life!
