• Model NO.：K500-NO2
• Voltage：DC 24 V,AC 220V
• Operating Temperature：-20 Degree ~ 55 Degree
• Signal Output：4-20 Ma
• Explosion-Proof Grade：Ex D Iic T6
• Certificate：Ce,CMC,Ex,Ma
• Sevice Life：2 Years
• Detection Range：0-20 Ppm
• Low Alarm：3 Ppm
• High Alarm：10 Ppm
• Outer Case Material：Aluminium Alloy and Stainless Steel
• Transmission Distance：Max 1000m
• Related Humidity：15%~90%Rh(Non-Condensing)
• Wiring：3-Core Shield Cable, 3*1.0mm
• Package：Box, Carton
• Sampling：Diffusion
• Transport Package：Carton
• Specification：3.5 kg
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：500 PCS Per Month

Basic Info.

Model NO. K500-NO2 Voltage DC 24 V/AC 220V Operating Temperature -20 Degree ~ 55 Degree Signal Output 4-20 Ma Explosion-Proof Grade Ex D Iic T6 Certificate Ce/CMC/Ex/Ma Sevice Life 2 Years Detection Range 0-20 Ppm Low Alarm 3 Ppm High Alarm 10 Ppm Outer Case Material Aluminium Alloy and Stainless Steel Transmission Distance Max 1000m Related Humidity 15%~90%Rh(Non-Condensing) Wiring 3-Core Shield Cable, 3*1.0mm Package Box/ Carton Sampling Diffusion Transport Package Carton Specification 3.5 kg Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 500 PCS Per Month

Product Description

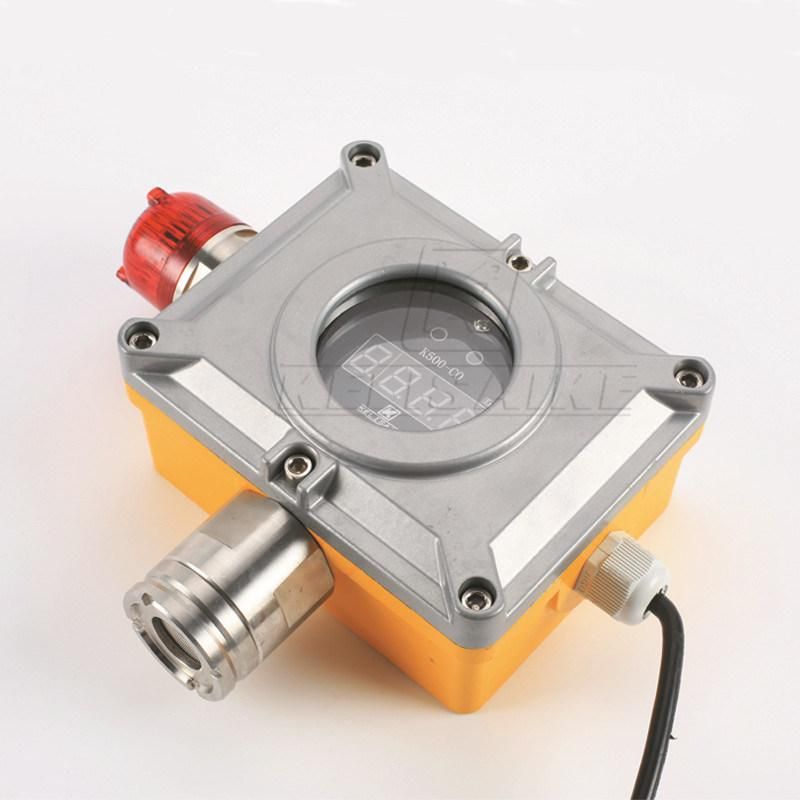

DC 24V Wall-Mounted NO2 Gas Detector LED Display with Acousto-optic Vibration Alarm

K500 series wall-mounted gas detector is a device with long service life,adopting high sensitivity imported sensors and the explosion proof design.The wall-mounted gas detector operates as parts of an integrated system (with 4-20mA output analog) or as  a stand-alone system only.2 discrete alarm levels (high level & low level),audible and visual alarm.



>>>Key Feature
1) High sensitivity world famous imported sensor
2) Bright,red flashing visible alarm and loud 90dB audible alarm on the spot
3) Waterproof and dustproof design for normal and continuous working in harsh environments
4)Compatible with DCS (Distributed Control System)
5) Flameproof body design acc.to IEC61508,simple and easy installation and maintenance
6)Programmable alarm operation value,low or high level alarm indication
7)220V AC or 24V DC power supply,4-20mA output analog,three core shield cable DCS system
8) Certifications: CE, CMC, EX, MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)

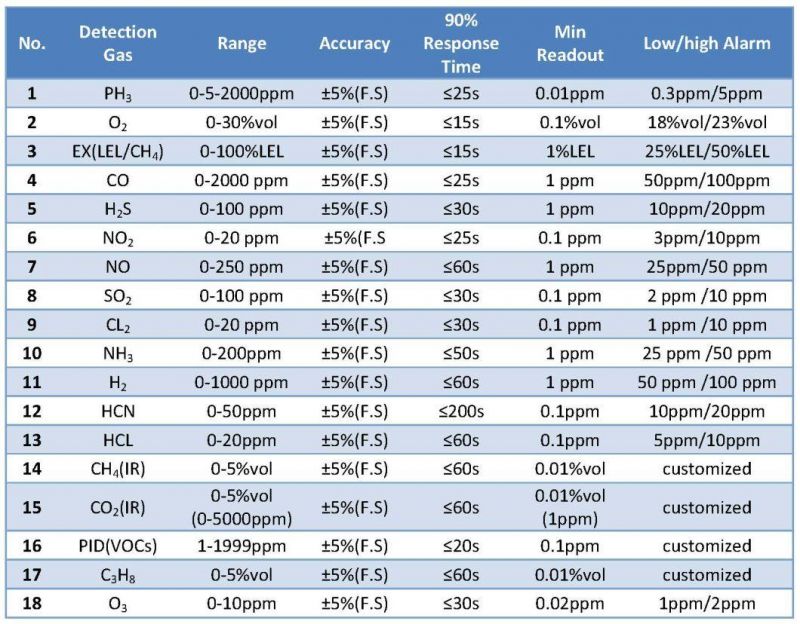

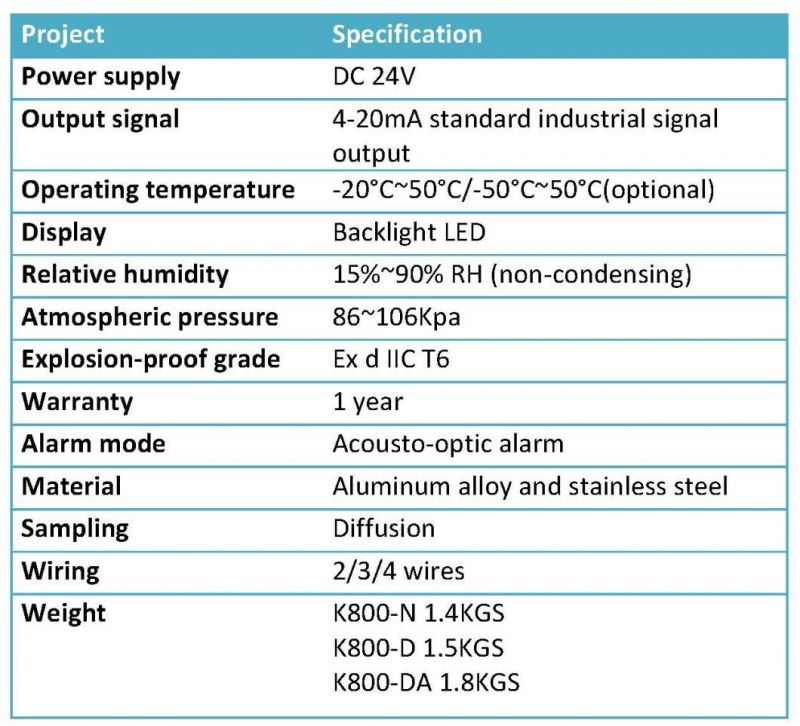

>>>Specification




>>>Related Product


	Catagory	Search Name on MIC
1	Portable Multi Gas Detector	Diffusion Multi Gas Detector Handheld Security Products Sensor with Display
2	Dust Meter	Wt-602 Factory Customized Dust Concentration Monitoring Meter Smoke Analyzer
3	Portable Single Gas Detector	3V Lithium Battery Handheld Operated Sensor Ozone Gas Leak Detector

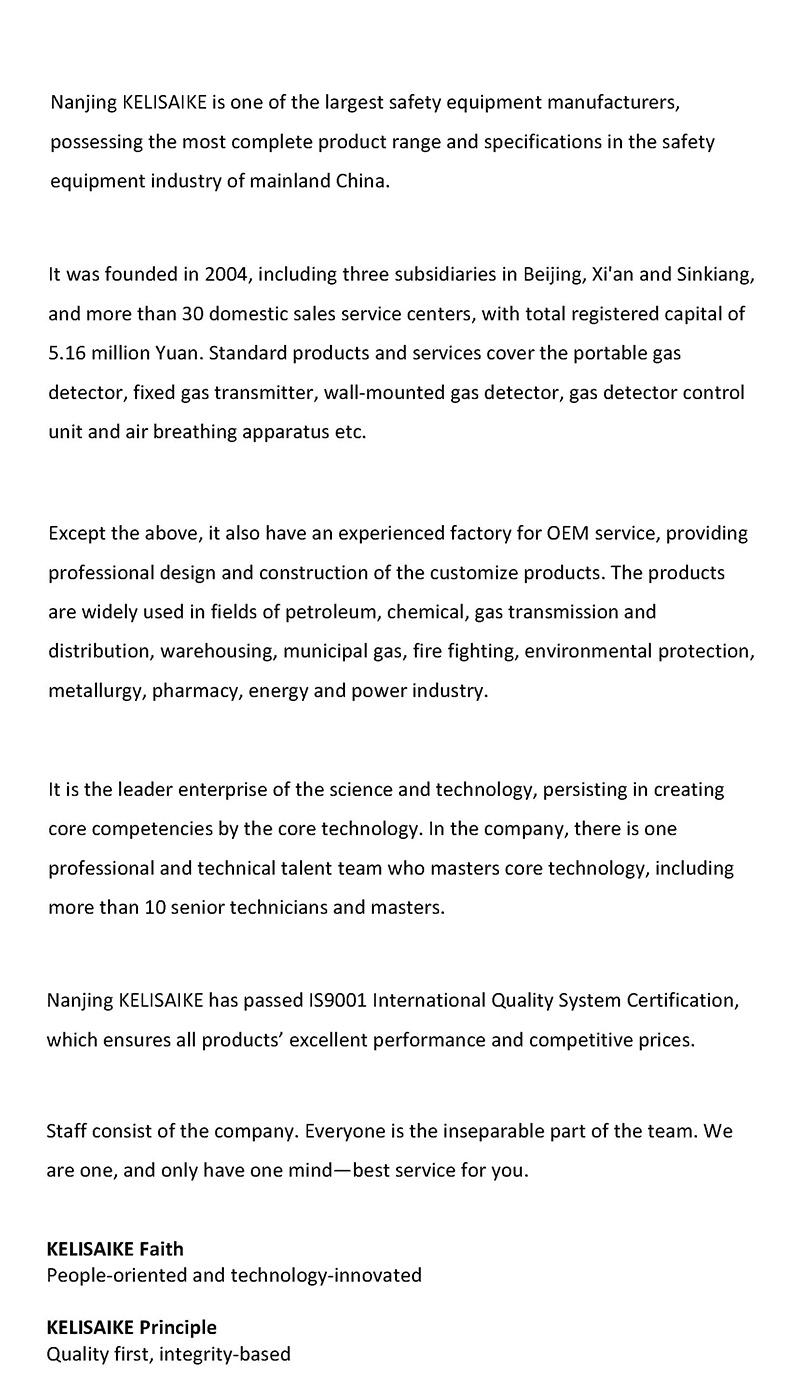

>>>Company
