• Model NO.：DOG-3082
• Operating Mode：Keyboard
• Off Mode：Manual
• Measuring Range：0-100ug,L;0-20mg,L;0-60%
• Accuracy：Ug,L:+,- 1.0% Fs Mg,L: +,- 0.5%Fs
• Resolution：0.1ug,L;0.01ug,L
• Dimension：146mm*146mm*150mm
• Color：White+Blue
• Power Supply：AC220V+,-10% 50Hz
• Protection Grade：IP65(Aluminium Shell)
• Installation：Wall Hanging, Flushbonading Type
• Transport Package：Carton
• Specification：144*144*104mm
• Trademark：Boqu
• Origin：Shanghai
• HS Code：9027809900
• Production Capacity：100sets,Weeks

Basic Info.

Model NO. DOG-3082 Operating Mode Keyboard Off Mode Manual Measuring Range 0-100ug/L;0-20mg/L;0-60% Accuracy Ug/L:+/- 1.0% Fs Mg/L: +/- 0.5%Fs Resolution 0.1ug/L;0.01ug/L Dimension 146mm*146mm*150mm Color White+Blue Power Supply AC220V+/-10% 50Hz Protection Grade IP65(Aluminium Shell) Installation Wall Hanging/ Flushbonading Type Transport Package Carton Specification 144*144*104mm Trademark Boqu Origin Shanghai HS Code 9027809900 Production Capacity 100sets/Weeks

Product Description

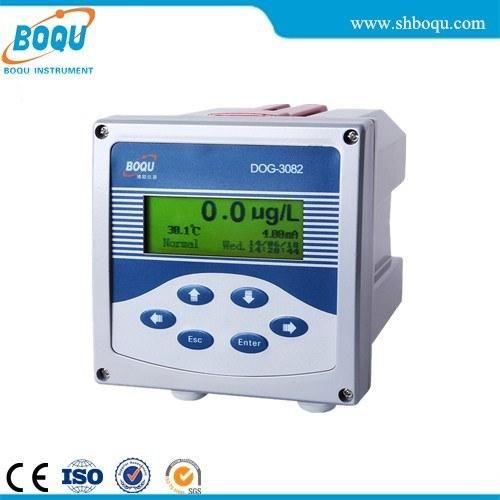

                                       DOG-3082 Industrial Dissolved Oxygen Meter

Features:

All the data are displayed in English. It can be easily operated:

It has a complete English display and elegant interface: Liquid crystal display module with high resolution is

adopted. All the data, status and operation prompts are displayed in English. There is no symbol or code that is

defined by the manufacturer.

Simple menu structure and text-type man-instrument interaction: Compared with traditional instruments,

DOG-3082 has many new functions. As it adopts classified menu structure, which is similar to that of a computer,

it is clearer and more convenient. It is not necessary to remember the operation procedures and sequences. It can

be operated according to the prompts on the screen without the guidance of an operation manual.

Multi-parameter display: The oxygen concentration value, input current (or output current), temperature values,

time and status can be displayed on the screen at the same time. The main display can show the oxygen

concentration value in a 10 x 10mm size. As the main display is eye-catching, the displayed values can be seen

from a long distance away. Six sub-displays can display such information as the input or output current,

temperature, status, week, year, day, hour, minute and second, so as to adapt to different users' habits and to

conform with different reference times set by the users.




Technical Indexes

1. Measuring range: 0~100.0ug/L; 0~20.00 mg/L (automatic switching); (0-60ºC);(0-150ºC)Option

Resolution: 0.1ug/L; 0.01 mg/L; 0.1ºC

2. Intrinsic error of the whole instrument: ug/L: ±l.0%FS; mg/L: ±0.5%FS, temperature: ±0.5ºC

3. Repeatability of the indication of the whole instrument: ±0.5%FS

4. Stability of the indication of the whole instrument: ±1.0%FS

5. Automatic temperature compensation range: 0~60ºC, with 25ºC as the reference temperature.

6. Response time: <60s (98% and 25ºC of the final value) 37ºC: 98% of the final value < 20 s

7. Clock accuracy: ±1 minute/month

8. Output current error: ≤±l.0%FS

9. Isolated output: 0-10mA (load resistance <1.5KΩ); 4-20mA (load resistance <750Ω)

10. Communication interface: RS485 (optional) (Double power for option)

11. Data storage capacity: l month (1 point/5 minutes)

12. Saving time of data under a continuous power-failure condition: 10 years

13. Alarm relay: AC 220V, 3A

14. Power supply: 220V±10% 50±1HZ, 24VDC(option)

15.Protection: IP54, Aluminium shell

16. Size: secondary meter: 146 (length) x 146 (width) x 150(depth) mm;

dimension of the hole: 138 x 138mm

17. Weight: 1.5kg

18. Working conditions: ambient temperature: 0-60ºC; relative humidity <85%

19. The connection tubes for inlet and outlet water: Pipes and hoses
