• Model NO.：K700
• Type：Electrochemical Gas Analyzer
• Voltage：DC 24V
• Operating Temperature：-10 Degree ~ +70 Degree
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Exd Iict6
• Detection Range：0-250ppm
• Low Alarm：25ppm
• High Alarm：50ppm
• Transport Package：Carton
• Specification：1.8kg
• Trademark：KELISAIKE
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：300PCS,Month

Basic Info.

Model NO. K700 Type Electrochemical Gas Analyzer Voltage DC 24V Operating Temperature -10 Degree ~ +70 Degree Signal Output 4 to 20mA Explosion-Proof Grade Exd Iict6 Detection Range 0-250ppm Low Alarm 25ppm High Alarm 50ppm Transport Package Carton Specification 1.8kg Trademark KELISAIKE Origin Nanjing, China HS Code 8531100000 Production Capacity 300PCS/Month

Product Description

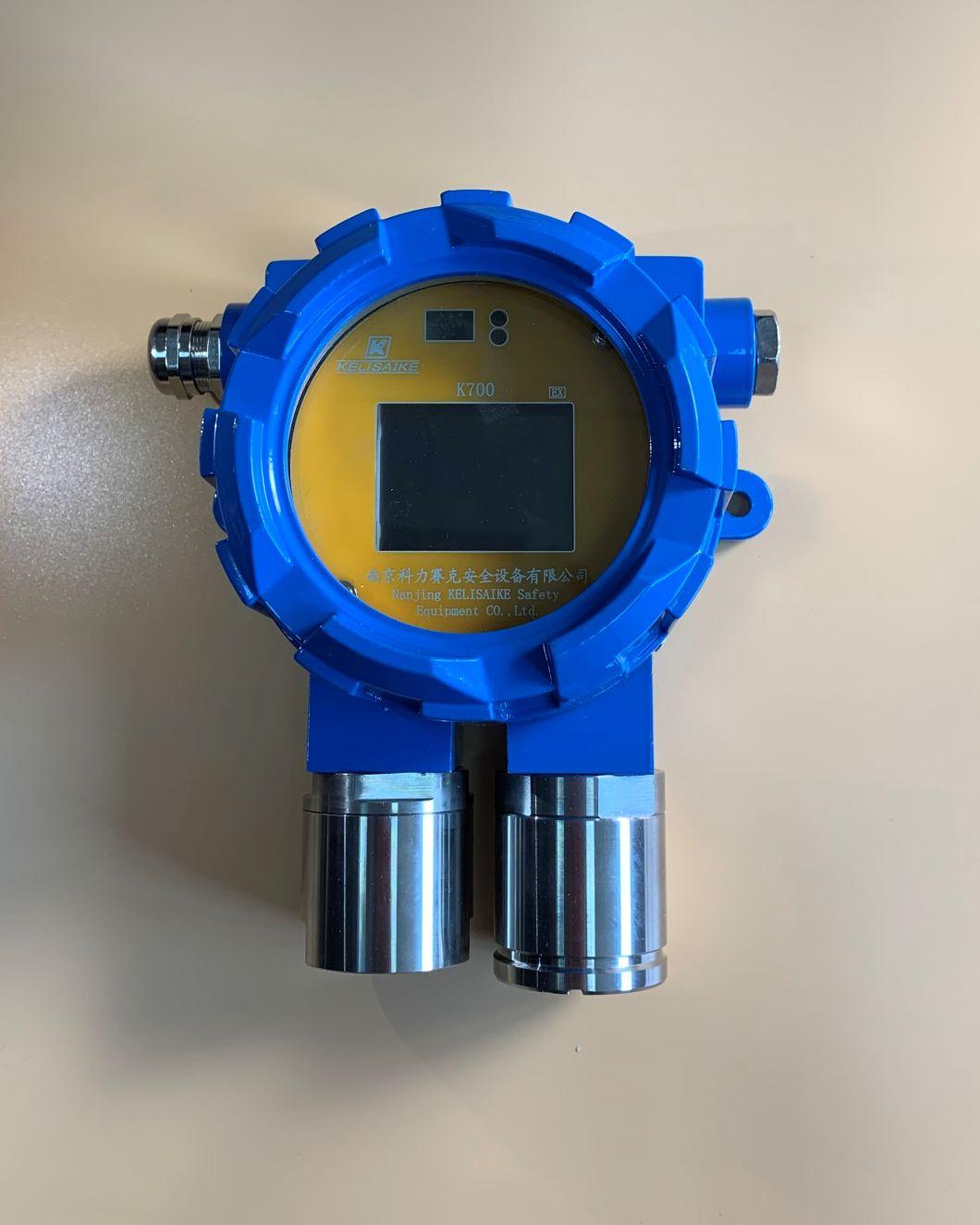

K700 fixed dual gas detection transmitter

Technical performance and parameters



Detection gas	range	Accuracy	Minimum reading	response time
Combustible gas (Ex)	(0~100)%LEL	±5%(F.S)	1	≤ 25 seconds
Carbon monoxide (CO)	(0~1000)PPM	±5%(F.S)	1	≤ 25 seconds
Oxygen (O2)	(0~30)%Vol	±1.5%(F.S)	0.1	≤ 25 seconds
Benzene (C6H6)	(0~1000)PPM	±5%(F.S)	1	≤ 25 seconds
Carbon dioxide (C02)	(0-5)%VOL	±0.5%(F.S)	0.01	≤ 25 seconds
Hydrogen sulfide (H2S)	(0~100)PPM	±5%(F.S)	1	≤ 25 seconds
Hydrogen (H2)	(0-1000)PPM	±5%(F.S)	1	≤ 25 seconds
Ammonia (NH3)	(0~100)PPM	±8%(F.S)	1	≤ 25 seconds
Chlorine (Cl2)	(0~10)PPM	±5%(F.S)	1	≤ 25 seconds
Nitrogen dioxide (NO2)	(0~10)PPM	±5%(F.S)	1	≤ 25 seconds
Hydrogen chloride (HCl)	(0~100)PPM	±5%(F.S)	1	≤ 25 seconds
Hydrocyanic acid (HCN)	(0~100)PPM	±5%(F.S)	1	≤ 25 seconds
Sulfur dioxide (SO2)	(0~100)PPM	±5%(F.S)	1	≤ 25 seconds
Nitric oxide (no)	(0~100)PPM	±5%(F.S)	1	≤ 25 seconds

	Instrument performance	performance index
Working conditions	supply voltage	(17-30)VDC
	power waste	< 4W
	ambient temperature	( -10~70) °c
	ambient humidity	10%RH ~ 95%RH
	Pressure range	86 KPa~106 KPa
Output mode	output signal	(4-20) MA / RS485 optional
Technical indicators	Detection gas	See the specific table above
	response time	≤30S
	Detection error	≤ 5% f · s
	Zero drift	< 2% f · s / year
	Explosion proof sign	ExdIlCT6
	Degree of protection	lP65
other	transmission distance	The longest distance is more than 1000m (RVVP 3 is selected for use with the controller)×1.5 mm2 shielded cable)
	Operation mode	Infrared remote control
	Audible and visual alarm	Explosion proof audible and visual alarm lamp can be selected
	weight	With display ≤ 1.5kg; without display ≤ 1.2kg
	Overall dimension	183mm×143mm×107mm (display type)
		183mm×143mm×92mm (no visible type)
	Installation mode	Wall type, pipe type



Key Features

1)  Providing digital LCD displayer, alarm facility with sound and light, and solid relay output on the spot, allowing contol the equipments easily.

2)  Supporting 4 to 20mA analog signal output (DC24V), connecting with the remote host contoller, and having direct access to the DCS.

3)  Connecting  3 - core shield cable, 3x1.0mm.

4)  Special transmitter mounting kit making the installation and performing calibration easier and better.

5)  Ambient temperature: -20°C~+50°C

6)  Explosion-proof grade: ExdIICT6

7)  High sensitivity, short response time and good stabilization
