• Model NO.：GE4T
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Non-Customized
• Temperature Range：0-100ºC
• Heating Rate：4ºC,S
• Cooling Rate：3ºC,S
• Uniformity：≤±0.2ºC
• Accuracy：≤±0.1ºC
• Transport Package：Standard Carton Packing
• Specification：390mm*270mm*255mm(L*W*H)
• Trademark：WESTTUNE
• Origin：China
• HS Code：9027809990
• Production Capacity：1000

Basic Info.

Model NO. GE4T Power Supply 220V Weight 0-50kg Certification CE Customized Non-Customized Temperature Range 0-100ºC Heating Rate 4ºC/S Cooling Rate 3ºC/S Uniformity ≤±0.2ºC Accuracy ≤±0.1ºC Transport Package Standard Carton Packing Specification 390mm*270mm*255mm(L*W*H) Trademark WESTTUNE Origin China HS Code 9027809990 Production Capacity 1000

Product Description

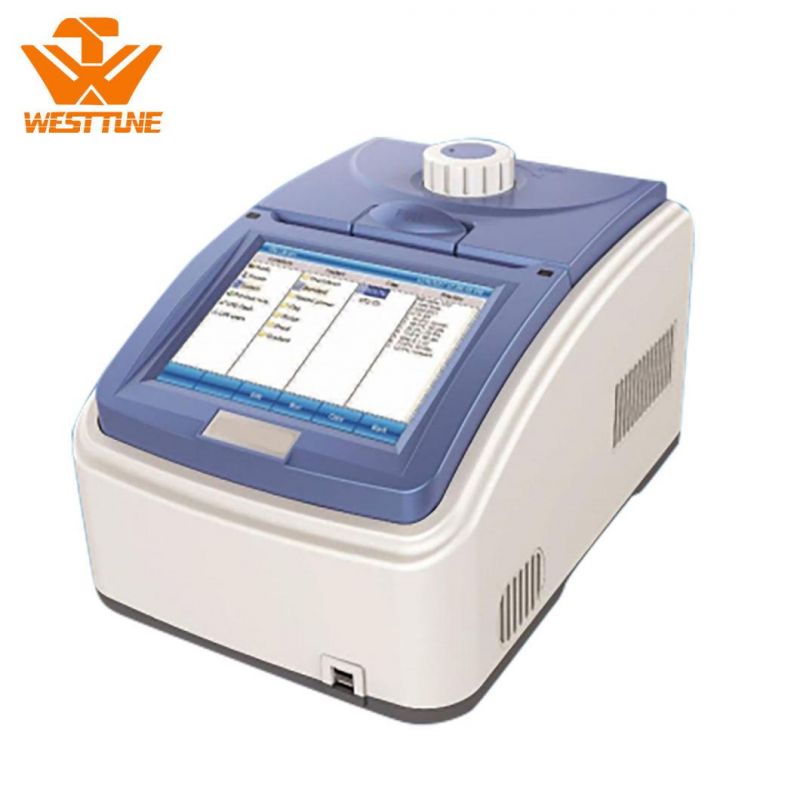

 GE4T In-situ Stepless Adjustable Thermal Cycler PCR
   GE4T In-situ thermal cycler uses long service life peltier. Its max. ramping rate is 4ºC/s and cycle times is more than 1000,000.The product combines a variety of advanced technologies:Windows system;color touch screen;several block as options;PC on-line function;printing function;big storage capacity and support USB device.All above functions allow PCR's excellent performance and meet higher experiment's need.






Features:

1. Six pieces of long service life Peltier heating units and form 3 circuits to control 3 temperature zones.
2. High heating and cooling rate, max. ramping rate 4 °C/s, can save your precious time.
3. Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
4. Stepless adjustable hot lid, fit tubes of different heights to avoid tube melt and evaporation.
5. Windows interface, 8"( 800600,16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
6. Built-in 11 standard program file template, can quickly edit the required files.Folder management, user can build directory.
7. The running program and left time can be displayed in real time, allow to edit file when program is running.
8. One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
9. Internal flash memory for 10000 typical PCR files in free configurable folders.
10. Hot lid temperature and hot lid work mode can be set to meet different experiment's need.
11. Automatic restart after power failure. When power is restored it can continue to run unfinished program.
12. GLP report records every step to provide accurate data support for experiment result analysis.
13. User Login Management, three-tier permission, password protectionfunction to ensure data security.
14. Mini type Bluetooth printer as an option, easily record information.
15. Support email-alert function when experiment is over.
16. Support USB and LAN to update software.
17. One computer can control many sets of PCR via network connection.
18. Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
   Specification:


Model	GE4T
Temperature Range	0-100ºC
Heating Rate	4ºC/s
Cooling Rate	3ºC/s
Uniformity	≤±0.2ºC
Accuracy	≤±0.1ºC
Display Resolution	0.1ºC
Temperature Control	Block/Tube
Ramping Rate Adjustable	0.1-4ºC
Hot Lid Temperature	30-110ºC
Hot Lid Height Adjustable	Stepless Adjustable
Number of Programs	10000+(USB FLASH)
Max. No.of Step	30
Max. No.of Cycle	100
Time Increment/Decrement	1 Sec-600Sec
Temp.Increment/Decrement	0.1-10.0ºC
Pause Function	Yes
Auto Data Protection	Yes
Hold at 4ºC	Forever
Touchdown Function	Yes
Long PCR Function	Yes
Language	English
LAN to computer	Yes
LCD	8 inch,800*600pels
Communication	USB2.0,LAN
Dimensions	390mm*270mm*255mm(L*W*H)
Weight	8.5kg
Power Supply	85~264 VAC,47~63HZ,600W
