• Model NO.：K60-IV
• Working Voltage：3.7V Rechargeable Lithium Battery
• Weight：Approx. 300g
• Alarm Type：Vibration Alarm with Light, Sound
• Sensor Life：2-5 Years
• Explosion-Proof Grade：Ex Ib Iic T3
• Sampling：Pump,Diffusion
• Accessories：Detection Probe&Rubber Protection Case
• Transport Package：Carton
• Specification：133x70x36mm
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000PCS

Basic Info.

Model NO. K60-IV Working Voltage 3.7V Rechargeable Lithium Battery Weight Approx. 300g Alarm Type Vibration Alarm with Light, Sound Sensor Life 2-5 Years Explosion-Proof Grade Ex Ib Iic T3 Sampling Pump/Diffusion Accessories Detection Probe&Rubber Protection Case Transport Package Carton Specification 133x70x36mm Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 1000PCS

Product Description

Explosion-Proof 4 Multi Gas Detector





The K60-IV is a full-featured, compact, one- to four-sensor gas detector for oxygen, combustibles, hydrogen sulfide,carbon monoxide or sulfur dioxide. Key features include easy-to-operate design, a water-resistant case and high sensitivity sensors

>>>Key Features

1)      Light weight and small size design(less than 300g), easy to operate

2)      Excellent built-in vibration alert for use in areas of high ambient noiseapplications

3)      90dB audible vibration alarm

4)      Strong, protective, concussion-proof shockproof design for normal working in harsh enviroments

5)      Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage

6)      Rechargeable lithium battery for over 10 hours continuously operation

7)      Intuitive simple-to-operate four-button

8)      User interface with built-in pump

9)      2+2 digits LCD real time displays gas concentration and corresponding gas types

10)  Full featured self-test:sensors, lithium battery, circute integrity and acousto optic vibration alarm function

11)  Accessories:operator's manual, calibration hose, charger and conversion plug

12)  CERTIFICATIONS: CMC,Ex,MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)


>>>Technical Specification

Dimension	133 L×70 W×36 H mm
Weight	Approx. 300g

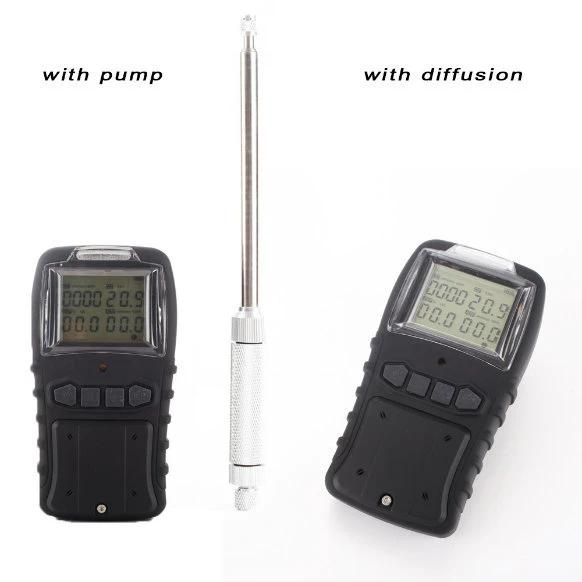

Sampling	Pump, diffusion
Working Temperature	- 10 °C ~ 40 °C
Relative Humidity	15%~90% RH (non-condensing)
Power	3.7V rechargeable lithium battery, continuously work for over 10 hours
Sensor Life	One year for combustible gas sensor; two years for oxygen and toxic gases sensors
Display	LCD display
Alarm Mode	Acousto optic alarm
Explosion-proof Grade	Ex ib IIC T3
Warranty	1 year



GAS TYPE	DETECTION RANGE	RESOLUTION	RESPONSE TIME
O2	0-30%Vol	0.1%Vol	T90≤15s
LEL gas	0-100%LEL	0.1%LEL	T90≤5s
CO	0-1999ppm	1ppm	T90≤25s
H2S	0-100ppm	0.1ppm	T90≤30s

>>> CE Certificate


>>> Package

>>> Our Services

1. For all our products, we offer a 1 year warranty and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support; our engineers will help to solve the problems you met.
4. We can provide OEM and ODM service.
5. Our factory is located in Nanjing city. Welcome to visit our factory.
6. All products will be fully checked and well packed before shipment, and qualification certificate will be  provided.


>>> Calibration

For the calibration of KELISAIKE products, please feel free to contact us for help.

Why choose KELISAIKE?
1. Mutual benefit : We have our own factory .So compared with other competitors ,the price will be more favorable in the same quality..
2. Professional engineers: We have 3 engineers who have experience more than 10 years and more than 5 engineer assistants works on the gas detection line, with Hi-Tech equipments .We offer more accurate and stable products.
3. Customize : We have strong R&D team that can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS).  (b) Design your color box(≥500PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service:(a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.

>>> FAQ
Q: Are you a manufacturer?
A: Sure. We are the professional safety equipment manufacturer and have the experience of produce and market over 12 years in this field.
Q: Are you provide customization?
A: Of course. It includes gas type, gas detection range, gas alarm point etc. Please contact us about the detailed specifications.
Q: Could I order one piece sample for the quality test? And do you charge for the samples?
A: Sure. We recommend to check the sample before order.
According to our company policy, we just charge the samples based on EXW price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q:How about the Delivery time?
A: Samples will be prepared  within 15 Days after 100% T/T in advance payment. QTY order will be delivered in 30 days.
Q:What kind of payments does KELISAIKE support?
A: T/T, L/C, Western Union, Cash all are accepted.
Q:What's the MOQ?
A:The MOQ is 1 PC. Please never mind the quantity.


>>>Company View

Nanjing KELISAIKE company is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan.

We are the leader enterprise of the science and technology, persisting in creating core competencies by the core technology. In the company, there is one professional and technical talent team who masters core technology, including more than 10 senior technicans and masters.

Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc. Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
