• Model NO.：TPO-3000
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：280 Sets,Month

Basic Info.

Model NO. TPO-3000 Trademark TOP Origin China HS Code 9027809900 Production Capacity 280 Sets/Month

Product Description

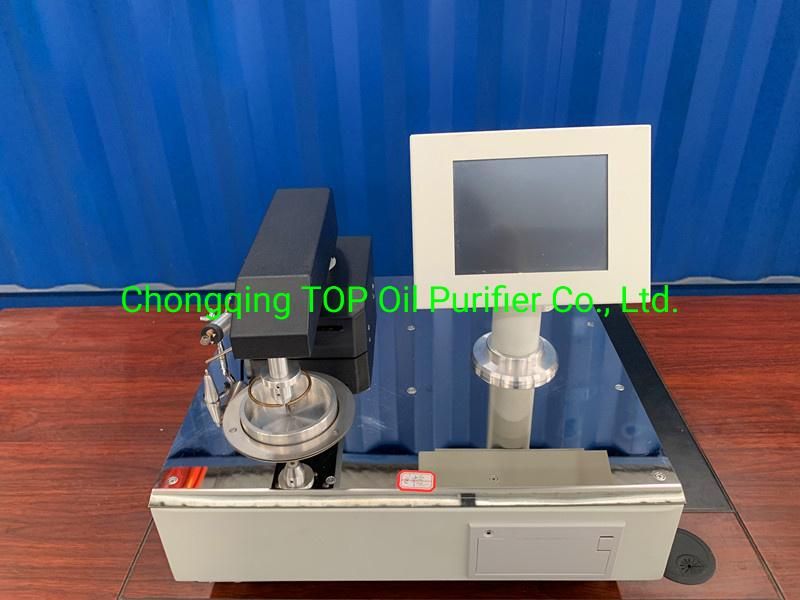

 Fully Automatic ASTM D93 D92 Oil Flash Point Apparatus (TPO-3000)


No need of gas source; electronic ignition; imported sensor; automatic correction of air pressure; alerting if over value


Application:
The automatic flash point analyzer(open-cup) is designed in accordance with ASTM D92, IS02592,GB267,GB3536 etc. It adopts microcomputer technology
that makes realization of completely automatic. It equips with color touch screen operations system and auto-high speed thermal printer.Most important,it has the function of self-checking.It is an ideal flash point analyzer(open-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.






Main Features:
1.7-inch color touch screen and man-machine conversation LCD display in English.
2.Adopts high speed signal processor: precision simulation/digital converter circuit.
3.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure;self-adjust the flash point.
4.Data storage function: store 300 groups testing data. It is timely to check historical records
5.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
6.Stirring,ignition,testing,alerting,cooling,printing are fully automatic.
7.Adaptive PID control algorithm: automatically adjust the heating curve according to standards
8.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
9.Security airless source of platinum alloy to ignite:stable,reliable and high precision

Technical parameter

Display	7-inch color touch LCD display screen
Test method:	Thermocouple differential detection
Test range:	Room temperature-400ºC
Repeatability:	±2ºC
Printer:	High speed thermal printer,paper size:44mm
Ignition mode:	Automatically electronic ignition
temperature Detection	Imported precision platinum resistance
Self-checking :	Printer, igniter, electromagnetic valve, detection arm movements, ignition rod stroke ect.
Power consumption:	<700w
Temperature:	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power:	AC220V±10%
Dimension	400×300×240mm
Weight:	20 kg
