• Model NO.：0563 3100
• Product Name：Flue Gas Analyzer
• Model Number：Testo 310
• Order Number：0563 3100
• Operating Temperature：-5 to +45 °c
• Display Type：LCD
• Display Function：Backlit 2-Line Display
• Power Supply：Battery: 1500 mAh, Mains Unit 5V,1A
• Storage Temperature：-20 to +50 °c
• Transport Package：One Piece,Box
• Specification：201 x 83 x 44 mm
• Trademark：Testo
• Origin：Germany
• HS Code：9030311000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. 0563 3100 Product Name Flue Gas Analyzer Model Number Testo 310 Order Number 0563 3100 Operating Temperature -5 to +45 °c Display Type LCD Display Function Backlit 2-Line Display Power Supply Battery: 1500 mAh, Mains Unit 5V/1A Storage Temperature -20 to +50 °c Transport Package One Piece/Box Specification 201 x 83 x 44 mm Trademark Testo Origin Germany HS Code 9030311000 Production Capacity 10000PCS/Year

Product Description

Original Testo 310 Entry level flue gas analyzer No.0563 3100 For O2/CO

Feature


• Direct O₂, CO, flue gas and ambient temperature measurements

• Integrated measurement menu for flue gas, draft, CO ambient air and pressure

• Quick sensor zero in only 30 seconds

• Large, backlit digital display, rechargeable lithium battery with up to 10 hours life

Being a systems mechanic you know only too well how tough things can get when you're working out in the field. That's why your measuring tools need to be rugged and reliable. Like the testo 310 flue gas analyzer. Designed especially for use in the field.

Product Description

Accurate readings, rugged design, easy-to-use: That's what you as a professional want from a measurement tool so that you can carry out quick and reliable checks on heating systems. And that's exactly what you get with the testo 310 flue gas analyzer.

The testo 310 entry-level flue gas analyzer. For reliable heating system checks

The testo 310 has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.

But that is by no means all. The compact flue gas analyzer has a wide range of useful features that make it the ideal companion for plumbing and heating fitters. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.

To round things off, the readings can also be transferred directly to your testo turbo printer (optional) via the analyzer's infrared interface, allowing you to print out on site.

What's included

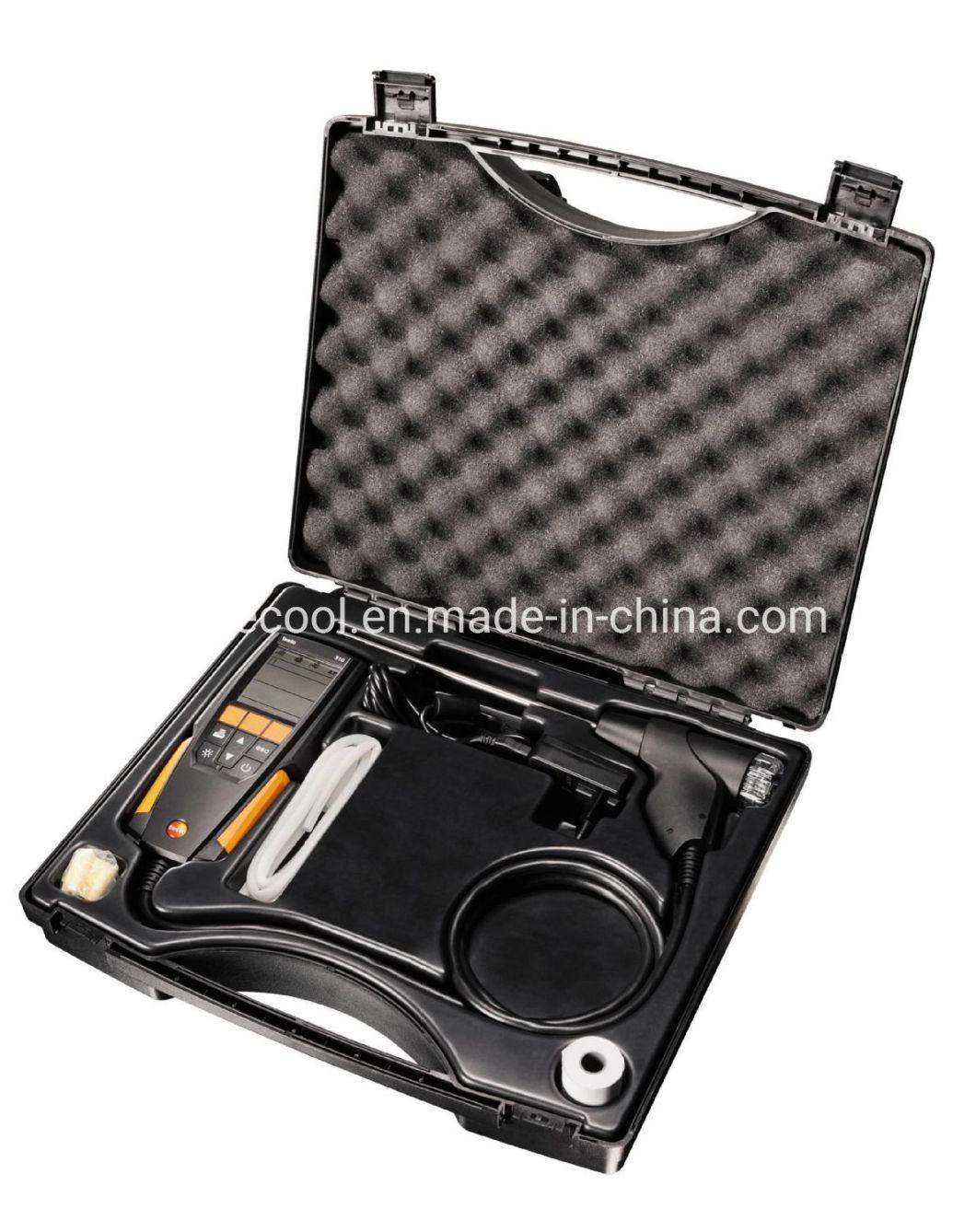

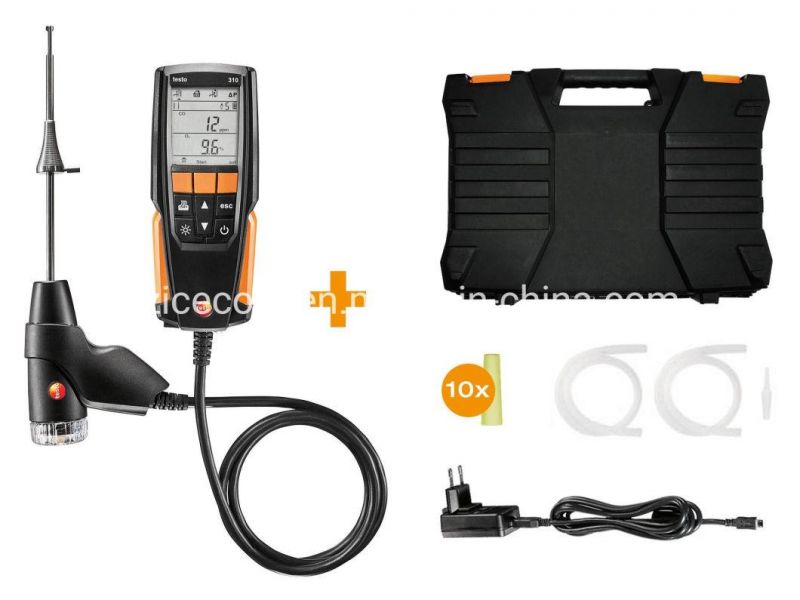

testo 310 flue gas analyzer, rechargeable battery, calibration certificate for O₂, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 10x particle filters, case.

Delivery Scope

testo 310 flue gas analyzer, rechargeable battery, calibration certificate for O₂, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 5x particle filters, case.

Technical Data:


Temperature - TC Type K (NiCr-Ni)
Measuring range	-20 to +100 °C
Accuracy	±1 °C
Resolution	0.1 °C
Reaction time	< 50 s

Temperature (ambient temperature)

Temperature - TC Type J (Fe-CuNi)
Measuring range	0 to +400 °C
Accuracy	±1 °C (0 to +100 °C) ±1.5 % of mv (> 100 °C)
Resolution	0.1 °C
Reaction time	< 50 s

Temperature (flue gas)

Flue gas O2
Measuring range	0 to 21 Vol.%
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t90	30 s

Flue gas Draught
Measuring range	-20 to +20 hPa
Accuracy	±0.03 hPa (-3.00 to +3.00 hPa) ±1.5 % of mv (Remaining Range)
Resolution	0.01 hPa

Flue gas degree of effectivity, Eta (calculated)
Measuring range	0 to 120 %
Resolution	0.1 %

Flue gas loss (calculated)
Measuring range	0 to 99.9 %
Resolution	0.1 %

Flue gas CO2 calculation (calculated from O2)
Measuring range	0 to CO2 max (Display range)
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t90	< 40 s

Pressure measurement
Measuring range	-40 to +40 hPa
Accuracy	±0.5 hPa
Resolution	0.1 hPa

Flue gas CO (without H2-compensation)
Measuring range	0 to 4000 ppm
Accuracy	±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm)
Resolution	1 ppm
Reaction time t90	60 s

Ambient CO
Measuring range	0 to 4000 ppm
Accuracy	±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm)
Resolution	1 ppm
Reaction time	60 s

General technical data
Dimensions	201 x 83 x 44 mm
Operating temperature	-5 to +45 °C
Display type	LCD
Display function	Backlit 2-line display
Power supply	Battery: 1500 mAh, mains unit 5V/1A
Storage temperature	-20 to +50 °C
Weight	(with probe) Approx. 700 g
