• Model NO.：test finger probe
• Standard：IEC61032
• Product Name：125mm Apron Jointed Test Finger Probe
• Transport Package：Silver Package for Test Probe
• Specification：iec61032
• Trademark：bnd
• Origin：China
• HS Code：9023000000
• Production Capacity：1000PCS Per Month

Basic Info.

Model NO. test finger probe Standard IEC61032 Product Name 125mm Apron Jointed Test Finger Probe Transport Package Silver Package for Test Probe Specification iec61032 Trademark bnd Origin China HS Code 9023000000 Production Capacity 1000PCS Per Month

Product Description

IEC61032 Jointed Test Finger Probe with 125mm Baffle
1. Introduction :
Bending test ( IEC 61032 ) is the necessary implement in protection against electric shock test for household and other have similar matter electrical appliances.

1.Reference standard: IEC61032,  IEC60065, IEC60335-1, IEC60884-1
2. The Standard Test Knurled Finger Probe is the necessary appliance to prevent electric
shock for household and similar electrical problem.
3. This test probe similar to that of test probe B of IEC 61032 but having a circular stop
face with a diameter of 125 mm instead of the noncircular face, the distance between the
tip of the test finger and the stop face being 100 mm.

This is the "International" test finger required by most IEC61032 , EN and CSA Standards, in addition to many UL Standards. Built in strict accordance to the newest requirements with integral palm simulator. The handle and stop face are made of nylon.  Finger is made of stainless steel. All parts precision machined.

2. Using Methods :
1. The joint portion of Standard test finger can not touch the live parts or hazardous parts ,and it can't enter 20mm-50mm baffles
2. Prevent access to dangerous parts of the test requirements, Test B need to bring 30 ± 3N thrust. Usually use with force gauge
3. In the electric shock test, we need to wire and configure the power supply(mains), the lamp unit.

3. Note :
Test probe is precision stainless steel products, please use of gently and pay attention to maintenance

4. Specification :

Nodular Finger Length	100mm
The First Finger Length	30mm
The Middle Finger Length	30mm
The Last Finger Length	40mm
Dam-board Diameter	125mm

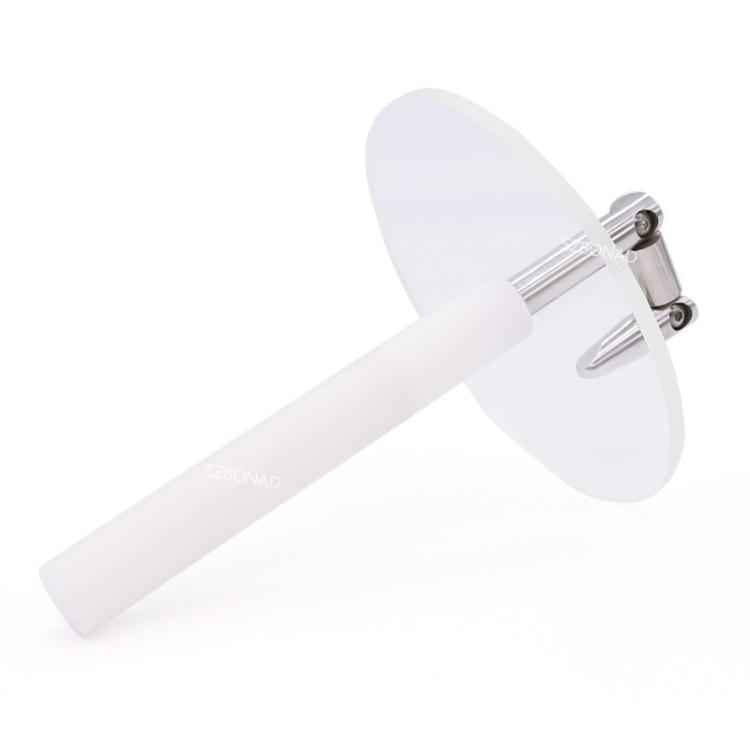

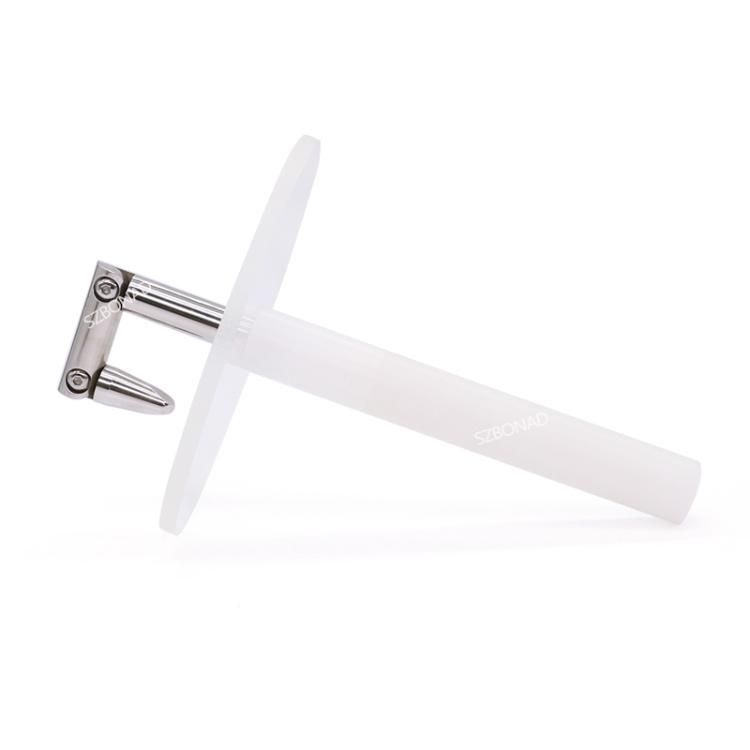

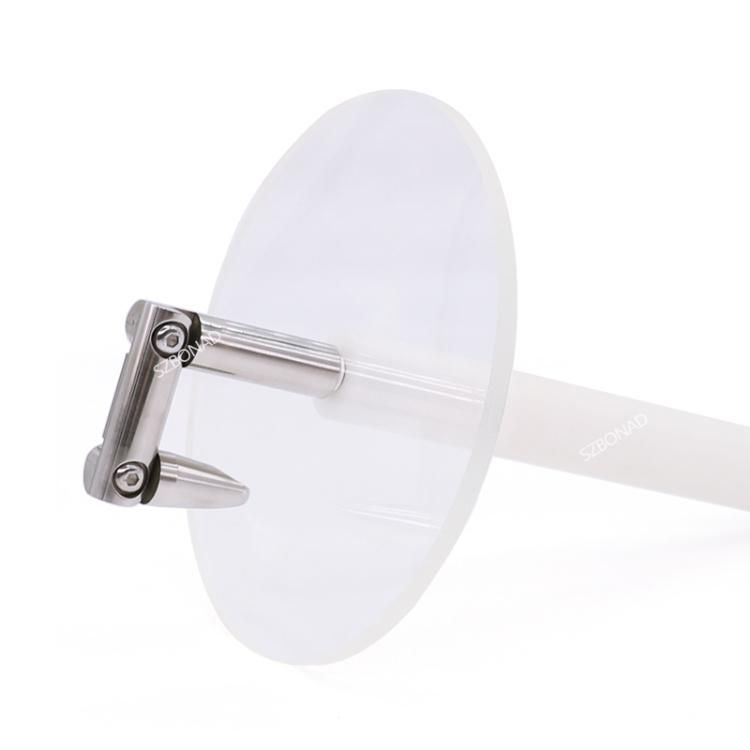

5. Product Pictures :

FAQ
1.What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

2.What is the MOQ ?
Most instruments support MOQ one set.

3.How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before
you made an order .

4.What is the warranty of the products?
One year ,but we can provide you life long support .

5.What is the package?
Export standard Solid wooden case

6.What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

7.What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc

Company  Profile :Certifications :

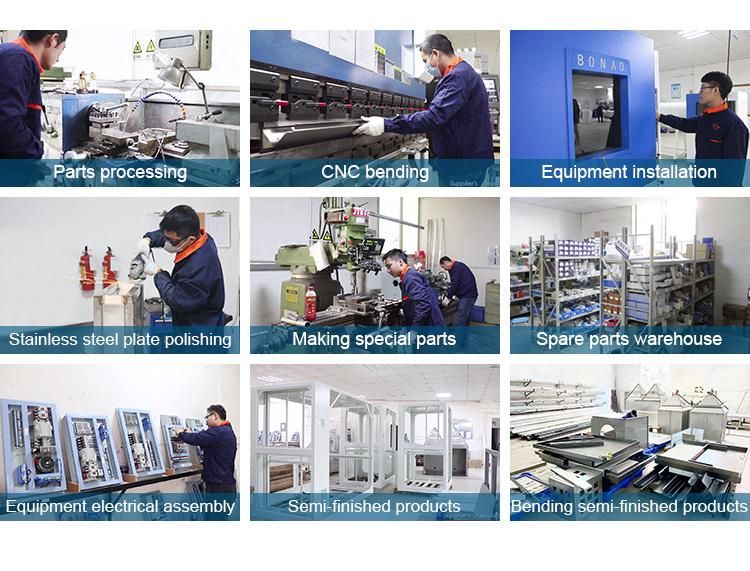

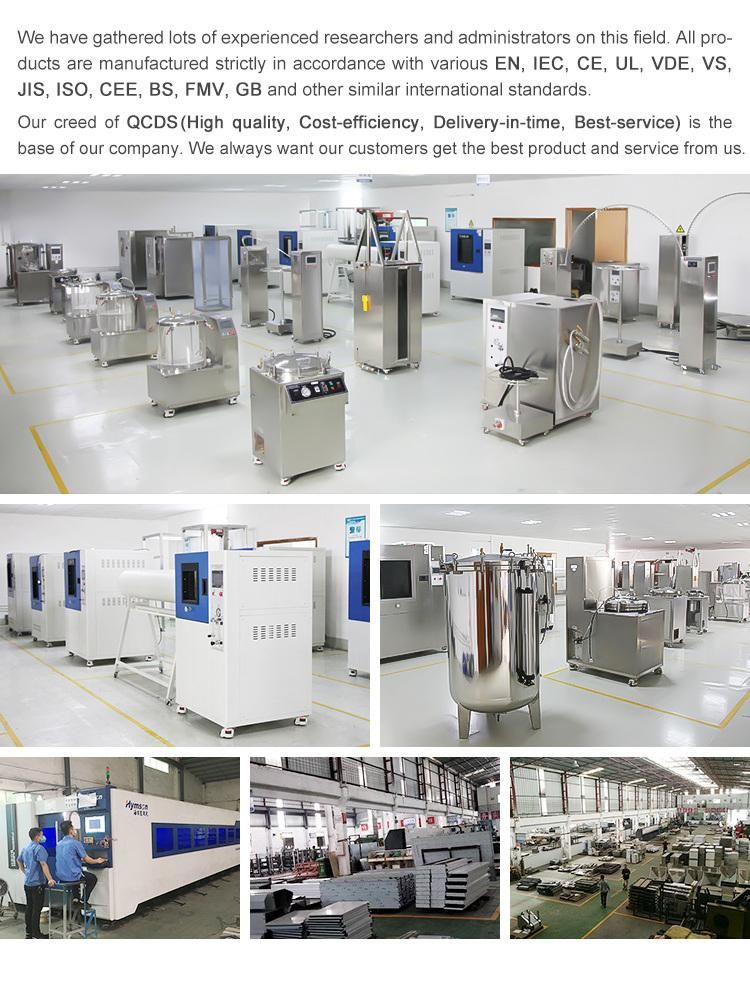

Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:
