0-30%Vol O2 Sensor Gas Leak Detector Fixed Oxygen Security Monitor
Nanjing KELISAIKE Safety Equipment Co., Ltd.- Brand：Kelisaike
- Customized：Kelisaike or OEM
- Portable：Fixed
- Certification：CE
- Gas：O2
- Type：Electrochemical Gas Analyzer
Base Info
- Model NO.：K800-O2
- Voltage：DC 24V
- Operating Temperature：-20 Degree ~ +50 Degree
- Signal Output：4 to 20mA
- Explosion-Proof Grade：Ex D Iic T6
- Certificate：Ce
- Warranty：1 Year
- Detection Range：0-30%Vol
- Low Alarm：18%Vol
- High Alarm：23%Vol
- Outer Case：Aluminum Alloy and Stainless Steel
- Display：4-Digit LED Display
- Pressure：86-106kpa
- Wiring：2,3,4 Wires
- Temperature：-20 Degree ~ 55 Degree
- Sampling：Diffusion
- Transport Package：Carton
- Specification：1.8kg
- Trademark：KELISAIKE
- Origin：Nanjing, China
- HS Code：8531100000
- Production Capacity：500 PCS
Description
Basic Info.
Model NO. K800-O2 Voltage DC 24V Operating Temperature -20 Degree ~ +50 Degree Signal Output 4 to 20mA Explosion-Proof Grade Ex D Iic T6 Certificate Ce Warranty 1 Year Detection Range 0-30%Vol Low Alarm 18%Vol High Alarm 23%Vol Outer Case Aluminum Alloy and Stainless Steel Display 4-Digit LED Display Pressure 86-106kpa Wiring 2/3/4 Wires Temperature -20 Degree ~ 55 Degree Sampling Diffusion Transport Package Carton Specification 1.8kg Trademark KELISAIKE Origin Nanjing, China HS Code 8531100000 Production Capacity 500 PCSProduct Description

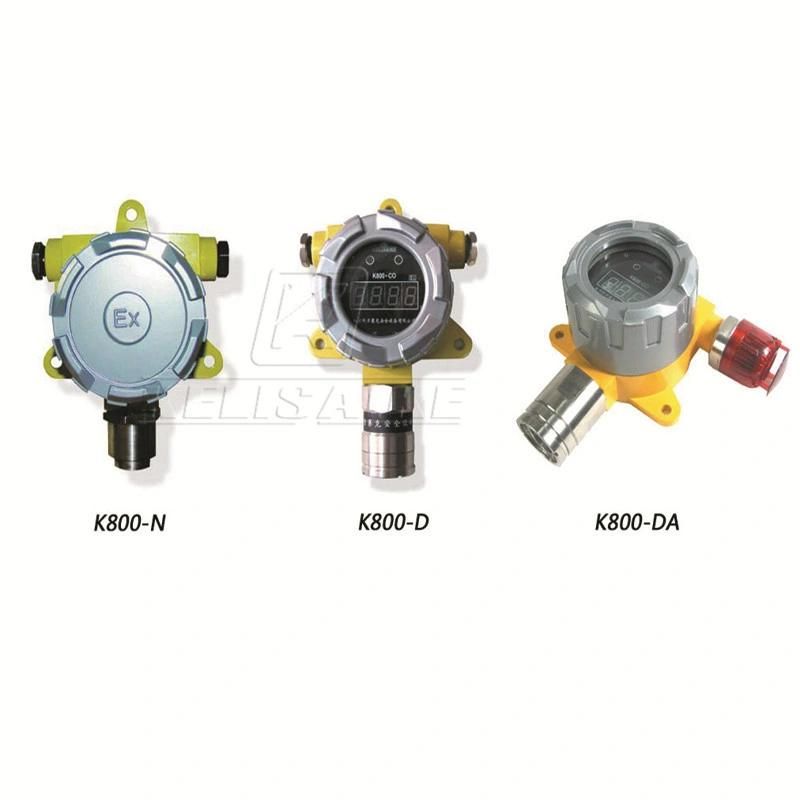

0-30%Vol O2 Sensor Gas Leak Detector Fixed Oxygen Security Monitor
The 2/3/4 wire,4-20mA and RS485 Modbus output K800 series fixed device provides continuous detection and monitoring of gases for a wide range of industrial environments.The fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable,toxic and oxygen hazards.
>>>Key Feature
1) Light weight and small size design (less than 300 g) , easy to operate
2) LED light status indicator for alarm conditions
3)The relay can trigger alarms or process controls
4)Three models available measure toxic gases, VOCs or combustible
5)Explosion-proof enclosure
6) Certifications: CE, CMC, EX, MA(SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)
7)Wireless type fixed detector is also available

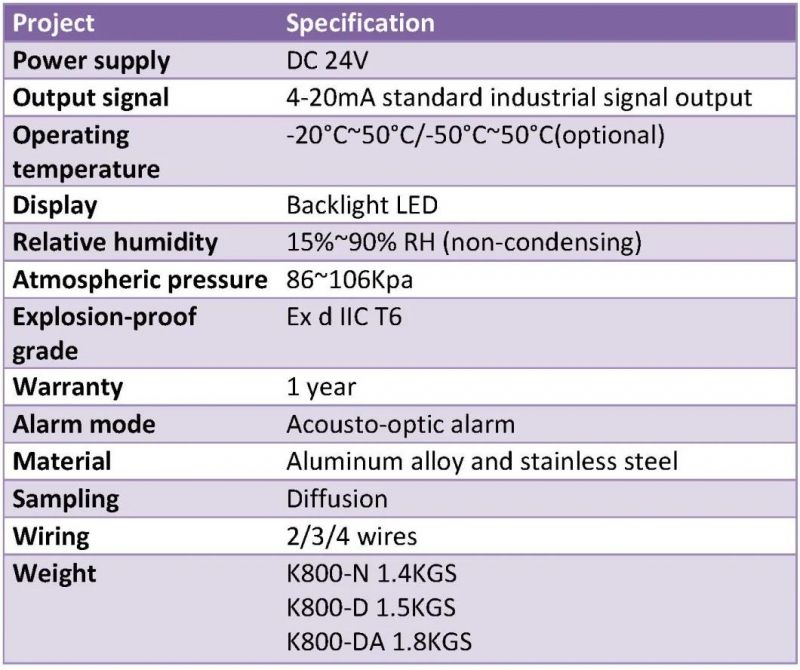

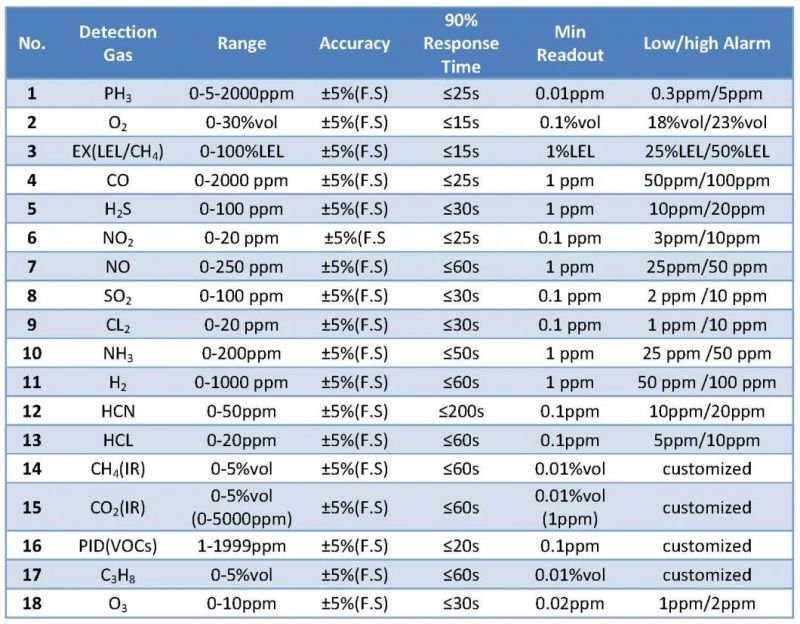

>>>Techinical Specification
>>>Related Product
| Catagory | Search Name on MIC | |
| 1 | Controller | K1000-4 Gas Detection Analyzer with Dynamic Displaying |
| 2 | Portable Multi Gas Detector | Kelisaike Latest IP67 Portable Multi Gas Detector Co O2 H2s Combustible Sensor |
| 3 | Portable Single Gas Detector | Ce Portable Ammonia Gas Leak Detector |
>>>Company
