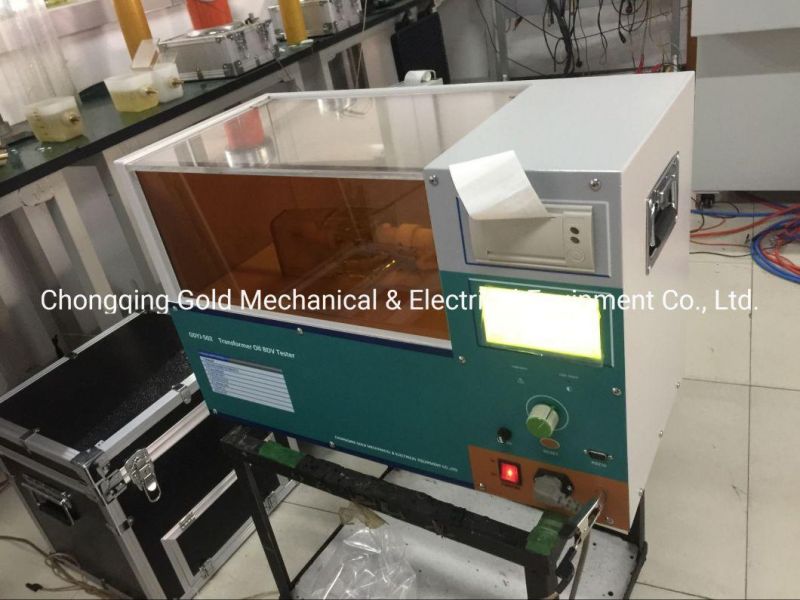

Transformer Oil Dielectric Strength Breakdown Voltage Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Test Standard：IEC60156,Astmd 1816,Astmd877
  • Output Voltage：AC 0V~100kv
  • Max Test Times Setting for User-Defined：9
  • Stir Time Setting for User-Defined Mode：0~999s
  • Waiting Time Setting for User-Defined Mo：0~999s
  • Test Error：3%Rdg+0.3%Fs

Base Info

  • Model NO.：GDYJ-502
  • Display：256´128 LCD
  • Maximum Storage Capacity：100 Groups of Test Data
  • Power Supply：AC220V±10%, 50Hz,60Hz
  • Working Environment：0-50ºC, ≤80%Rh
  • Transport Package：Standard Wooden Case
  • Specification：ISO
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：500PCS,Month

Description

Power SupplyAC220VOutput voltageAC 0V~100KVRate of voltage rise0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%Max test times 9Stir time0~999sWait time0~999sTest error3% max in the range of 10kv~100kvWeight41kgSize630 mm*400mm*3000mm
Transformer Oil Dielectric Strength Breakdown Voltage Tester
