High Sensitivity Ce Certified Handheld Mini Argon Gas Alarm (Ar)

Shenzhen Korno Import & Export Co., Ltd.
  • Brand：Korno
  • Customized：Non-Customized
  • Portable：Portable
  • Certification：CE, CPA, CMC, Cnex, ISO
  • Gas：Ar
  • Type：Thermal Conductivity Gas Analyzer

Base Info

  • Model NO.：GT903-Ar
  • N.W：0.35kg
  • G.W：0.7kg
  • Detection Range：0-100%Vol
  • Screen Size：2.4 Inch LCD HD Color Screen
  • Explosion Proof Sign：Exdll CT4 (Ia)
  • IP Rating：IP 66
  • Power：4000mA High Capacity Polymer Rechargeable Battery
  • Alarm Type：Audible and Visual Alarm
  • Sampling：Pumping, Build-in Pump
  • Case Material：ABS+PC
  • Transport Package：Size: 26*21*14cm
  • Specification：Product size: 21*8*7cm
  • Trademark：Korno or customized
  • Origin：China
  • HS Code：9027100010
  • Production Capacity：10000,Month

Description

Portable,Ar ArgonDetection Range:0-100%VOLResolution:0.01%VOLTemperature and  relative humidity:
(Optional)Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RHDetection pattern:Pumping, the flow rate is adjustable.Detection Accuracy:≤±3%F.SLinearity Error:≤±1%F.SReaction Time:≤20 S(T90)Zero drift:≤±1%(F.S/Year)Detection Method:Real-time detection mode, timing detection mode and cycle detection mode can be switch freelyStorage Method:Automatically saving and manually saving is available,
Up to 30,800 group data ,user can view history data on the display.Explosion Proof Sign:Exdll CT4 (IA)Case material:ABS+PCIP rating:IP66Operating Temperature:-30 ~ 60ºC(-22~144ºF) Power:4000mA high capacity polymer rechargeable batteryOperating Humidity:≤90%RH,Non-condensingDimensions / Weight:180*88*55 mm(L×W×H)
0.5 Kg(net weight)Operating Pressure:-30Kpa ~ 100KpaStandard Accessories:-Portable aluminum Case
-User manual
-Certification
-USB charger+Data cable
-Calibration coverOptional Accessories:-Vapor filter
-Hose
-Sampling handle(stainless steel ,approx 60cm)
>>> Details

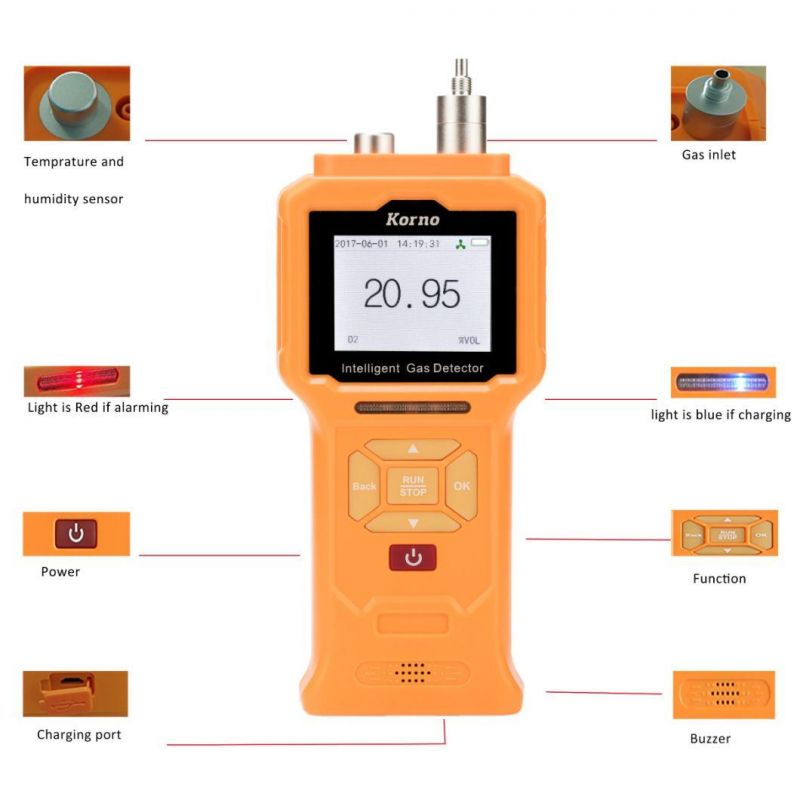

 High Sensitivity Ce Certified Handheld Mini Argon Gas Alarm (Ar)

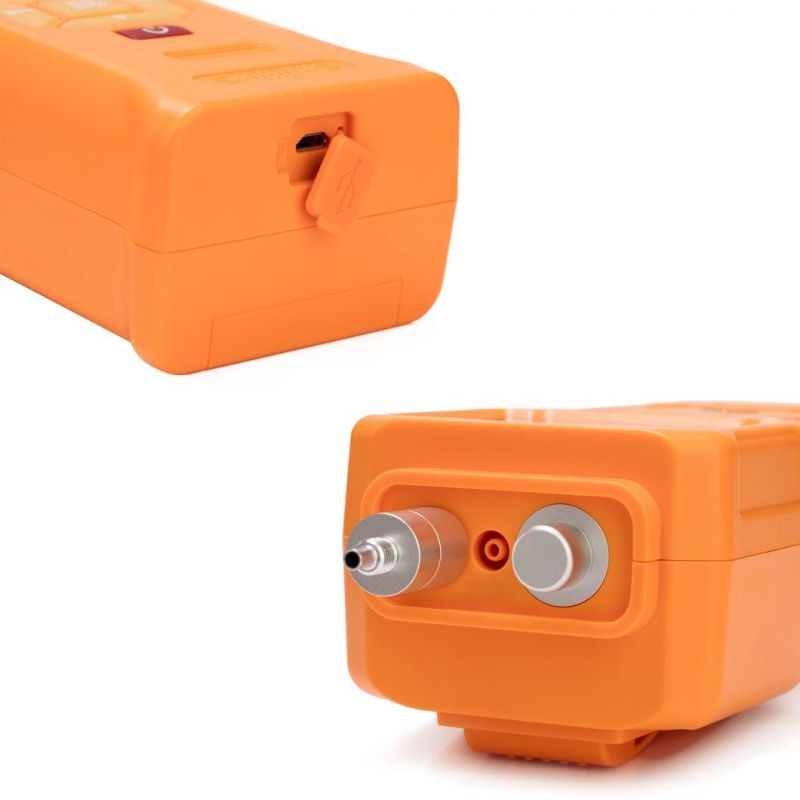

High Sensitivity Ce Certified Handheld Mini Argon Gas Alarm (Ar)

>>> Sensor list

GasDetection RangeResolution
Ammonia(NH3)0-50,100,500,1000,5000PPM0.01(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
Argon(Ar)0-10%,50%,100%VOL0.01%VOL
Acetaldehyde(C2H4O)0-100,500,1000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM)
Arsine(AsH3)0-1,10PPM 0.001PPM(0-10PPM)
Acetylene(C2H2)0-1%,2%VOL0.01%VOL
Bromine(Br2)0-10,50,100,200PPM0.01PPM(0-100PPM),0.1PPM(0-200PPM)
Combustiable Gas (EX)0-100%LEL0.1%LEL
Carbon Monoxide(CO)0-100,500,1000,2000,5000,10000,40000PPM0.1PPM(0-1000PPM,1PPM(0-40000PPM))
Carbon Dioxide(CO2)0-2000,5000,10000,50000PPM,20%,50%,100%VOL1PPM(0-50000PPM),0.01%VOL(0-100%VOL)
Chlorine(CL2)0-10,20,50,100,200,500,1000,2000,5000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
Carbonyl Chloride(COCL2)0-1,10,20,100,2000.001PPM(0-10PPM),0.01PPM(0-200PPM)
Chlorine Dioxide(CLO2)0-1,5,10,20,50,100,200,1000,2000,5000PPM 0.001PPM(0-10PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
Carbon Disulfide(CS2)0-50,100,500,1000,5000PPM0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-5000PPM)
Dimethoxymethane(C4H8O2)0-5000,10000,40000PPM1PPM(0-40000PPM)
Diborane(B2H6)0-1,10PPM 0.001PPM(0-10PPM)
Ethylene(C2H4)0-10,50,100,200,500,1000,2000PPM,0-3%VOL 0.001PPM(0-10PPM),0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-2000PPM),0.1%VOL(0-3%VOL)
Ethanol(C2H60)0-1%,5%VOL0.1%VOL
Ethylene Oxide(ETO)0-10,20,50,100,500PPM,0-3%VOL 0.01PPM(0-100PPM),0.1PPM(0-500PPM)0.01%VOL(0-3%VOL)

P.S if you want to know more information,please feel free contact us.
