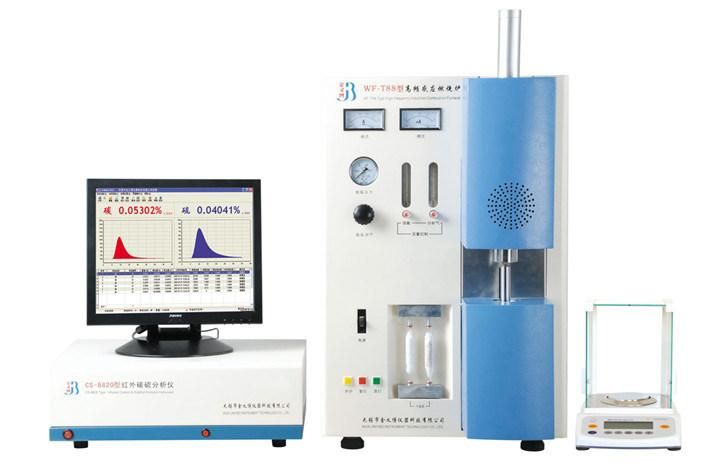

CS-8820-Desktop High Frequency Infrared Carbon Sulfur Analyzer
Wuxi JinyiBo Instrument Technology Co., Ltd.- Measuring Range：C: 0.0001%-10.0000% S: 0.0001%-3.5000% (Can Extend
- Electronic Balance：Weight The Sample in Variable Amount Accuracy of
- High Frequency Furnace：Power ≥2.7kVA Oscillation Frequency:20MHz
- Analysis Time：25-60 Seconds Can Be Set ( Usually 35 Seconds)
- Power Supply：Voltage:AC220V±5%, Frequency:50Hz±2%
- Oxygen：Purity: ≥99.5%, Input Pressure : 0.18MPa + 5%
Base Info
- Model NO.：CS-8820
- Transport Package：Wooden Package
- Specification：CS-8820
- Trademark：wuxi jinyibo
- Origin：Jiangsu Wuxi
- HS Code：9027809900
- Production Capacity：30 Sets,Month
Description
Measuring range
C: 0.0001%-10.0000% ( can extend to 99.9999%)
S: 0.0001%-3.5000% (can extend to 99.9999%)
Analysis of error
With GB / T20123-2006/ ISO15350: 2000 standard
Analysis time
25-60 seconds can be set ( usually 35 seconds)
High frequency furnace
power ≥2.7KVA Oscillation frequency:20MHz
Electronic balance
weight the sample in variable amount Accuracy of reading:0.0001g
Working environment
indoor temperature:10-30ºC,relative humidity:<90%
Power supply
voltage:AC220V±5%,frequency:50Hz±2%
Oxygen
Purity: ≥99.5%, input pressure : 0.18MPa + 5%

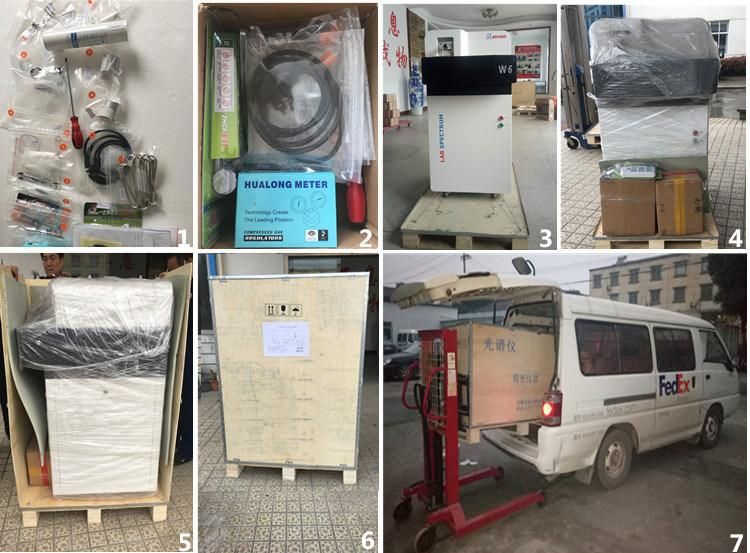

Packing & Shipping
