• Model NO.：BI-620
• Type：Conductivity Meter
• pH Range：-1.00~15.00pH
• Mv Range：±1000mv
• Temperature Range：0~100°c, 32~212°f
• Transport Package：Export in Standard Packing
• Specification：150(L)× 120(W)× 90(H)mm
• Trademark：Westtune
• Origin：Shanghai
• HS Code：9030899090
• Production Capacity：50000,Yeas

Basic Info.

Model NO. BI-620 Type Conductivity Meter pH Range -1.00~15.00pH Mv Range ±1000mv Temperature Range 0~100°c, 32~212°f Transport Package Export in Standard Packing Specification 150(L)× 120(W)× 90(H)mm Trademark Westtune Origin Shanghai HS Code 9030899090 Production Capacity 50000/Yeas

Product Description

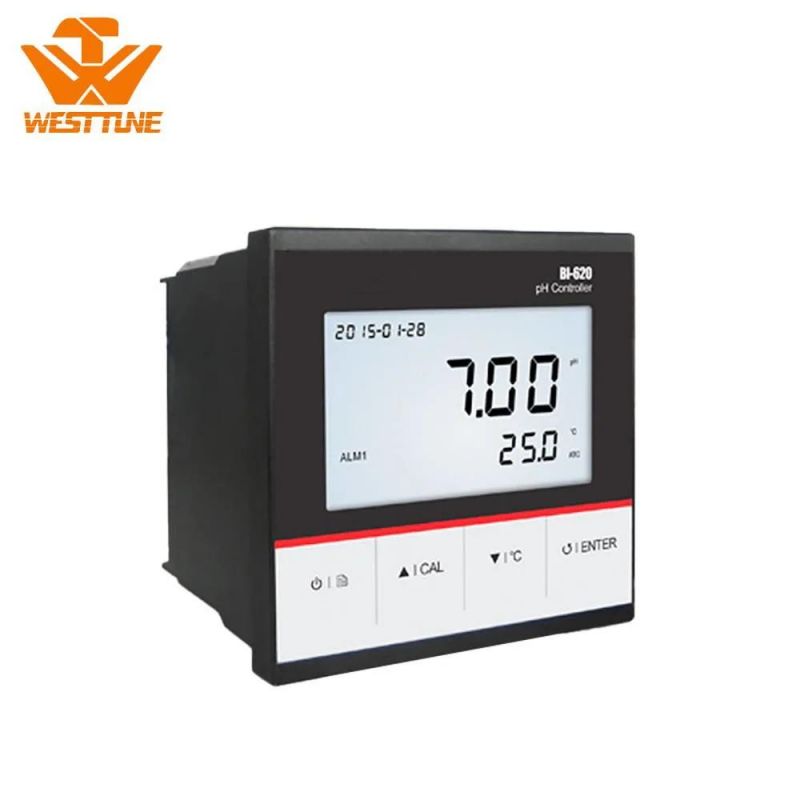

BI-620 Industrial Economical Online pH/ ORP/ Conductivity Test Meter

MEASUREMENT PARAMETERS:
pH, mV, Temperature

Features:
• Economical industrial online pH controller is equipped with a standard pH electrode.
• 1 to 3 points push-button calibration with auto-buffer recognition.
• Selectable NIST or USA pH buffer standard.
• Automatic electrode slope display helps user decide whether to replace sensor.
• Automatic Temperature Compensation provides accurate reading over the entire pH range.
• Low and high alarm limits can be set by user and automatically activate an external device.
• 4 to 20mA output signal meets industry standard.
• Manual temperature calibration improves the measurement accuracy of meter.
• Selectable temperature unit (°C or °F) for different application requirements.
• System menu allows setting the 9 parameters, including the pH buffer standard, number of calibration points, alarm limits, hysteresis value, etc.
• Reset feature automatically resumes all settings back to factory default options.

METER INCLUDES:

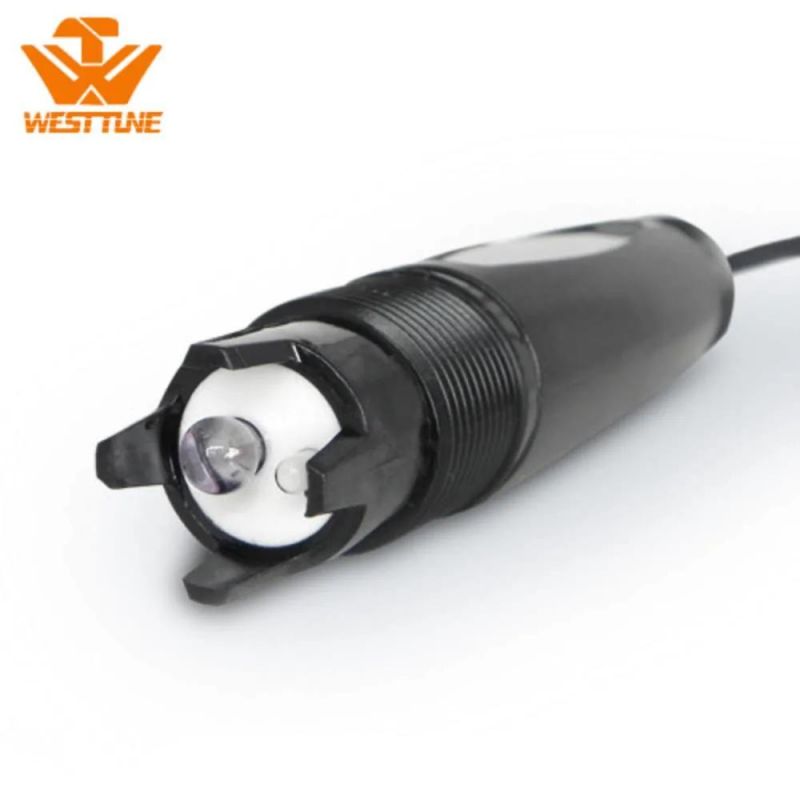

IE-20T industrial pH electrode,pH buffer pouches(4.01/ 7.00 /10.01).

Specifications:

Model	BI-620
pH
Range	-1.00~15.00pH
Accuracy	±0.01pH
Resolution	0.01pH
Calibration Points	1 to 3 points
pH Buffer Options	USA (pH4.01/7.00/10.01) or NIST (pH4.01/6.86/9.18)
mV
Range	±1000mV
Accuracy	±1mV
Resolution	1mV
Temperature
Range	0~100°C, 32~212°F
Accuracy	±1°C
Resolution	0.1°C, 0.1°F
Calibration Points	1 point
Calibration Range	Measured value ±10°C
Communication
Signal Output	4~20mA
Load	Max. 500Ω
Low or High Alarm	0.00~14.00pH, selectable
Communication Interface	RS485
Connection Terminals	Detachable screw terminals
General
Temperature Compensation	0~100°C, 32~212°F, Automatic
Environmental Conditions	Ambient temperature < 60°C, relative humidity < 80%
Display	LCD
Power	DC24V
Dimensions	96(L)×96(W)×75(H)mm
Weight	350g
