• Model NO.：K60-V
• Working Voltage：3.7V Rechargeable Lithium Battery
• Weight：Approx. 300g(with Charger)
• Alarm Type：Vibration Alarm with Light, Sound
• Sensor Life：2-5 Years
• Explosion-Proof Grade：Ex Ib Iic T3
• Sampling：Pump, Diffusion
• Accessories：Probe Gun
• Transport Package：Carton
• Specification：133x70x36mm
• Trademark：KELISAIKE
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：500PCS

Basic Info.

Model NO. K60-V Working Voltage 3.7V Rechargeable Lithium Battery Weight Approx. 300g(with Charger) Alarm Type Vibration Alarm with Light, Sound Sensor Life 2-5 Years Explosion-Proof Grade Ex Ib Iic T3 Sampling Pump, Diffusion Accessories Probe Gun Transport Package Carton Specification 133x70x36mm Trademark KELISAIKE Origin Nanjing, China HS Code 8531100000 Production Capacity 500PCS

Product Description

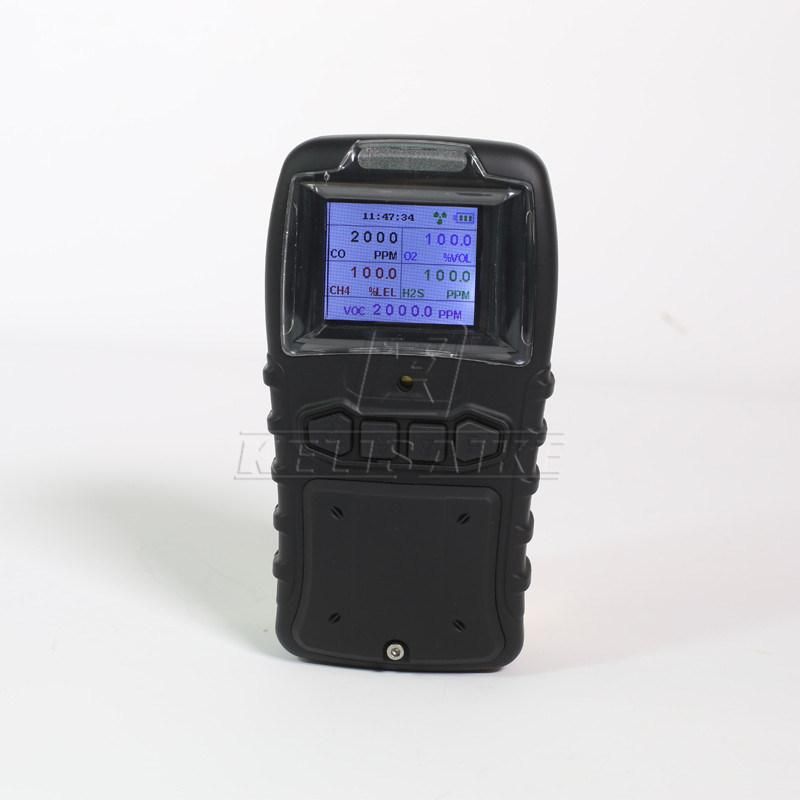

Portable lithium battery operation multi gas analyzer for H2S, CO, O2 ,LEL and VOCs gas







The K60-V is a full-featured, compact,5 in 1 sensor gas detector for oxygen, combustibles, hydrogen sulfide,carbon monoxide or sulfur dioxide. Key features include easy-to-operate design, a water-resistant case and high sensitivity sensor

>>>Key Features

1)      Light weight and small size design(less than 300g), easy to operate

2)      Excellent built-in vibration alert for use in areas of high ambient noiseapplications

3)      90dB audible vibration alarm

4)      Strong, protective, concussion-proof shockproof design for normal working in harsh enviroments

5)      Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage

6)      Rechargeable lithium battery for over 10 hours (pump),20 hours (diffusion) continuously operation

7)      Intuitive simple-to-operate four-button

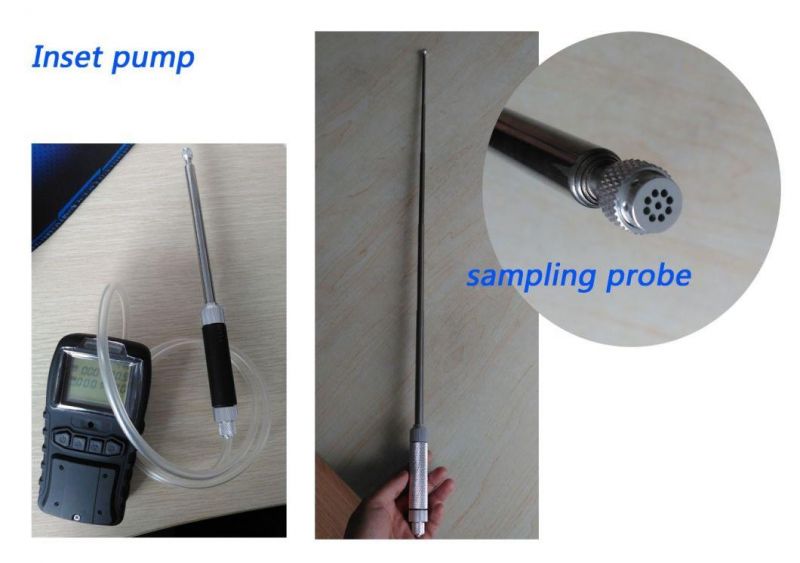

8)      User interface with built-in pump

9)      2+2 digits LCD real time displays gas concentration and corresponding gas types

10)  Full featured self-test:sensors, lithium battery, circute integrity and acousto optic vibration alarm function

11)  Accessories:operator's manual, calibration hose, charger and conversion plug

12)  CERTIFICATIONS: CMC,Ex,MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)


>>>Technical Specification

Dimension	133 L×70 W×36 H (mm)
Weight	Approx. 300g(with charger)
Sampling	Pump, diffusion
Working Temperature	- 10 °C ~ 40 °C
Relative Humidity	15%~90% RH
Power	3.7V rechargeable lithium battery, continuously work for over 10 hours (pump),20 hours (diffusion)
Sensor Life	One year for oxygen and combustible gas sensor; two years for VOCs and toxic gases sensors
Display	LCD display
Alarm Mode	Acousto-optic alarm
Explosion-proof Grade	Ex ib IIC T3
Warranty	1 year



GAS TYPE	DETECTION RANGE	RESOLUTION	RESPONSE TIME
O2	0-30%Vol	0.1%Vol	T90≤15s
LEL gas	0-100%LEL	0.1%LEL	T90≤5s
CO	0-1999ppm	1ppm	T90≤25s
H2S	0-100ppm	0.1ppm	T90≤30s
PID(VOCs<10.6eV)	0-1999ppm	0.1ppm	T90≤20s

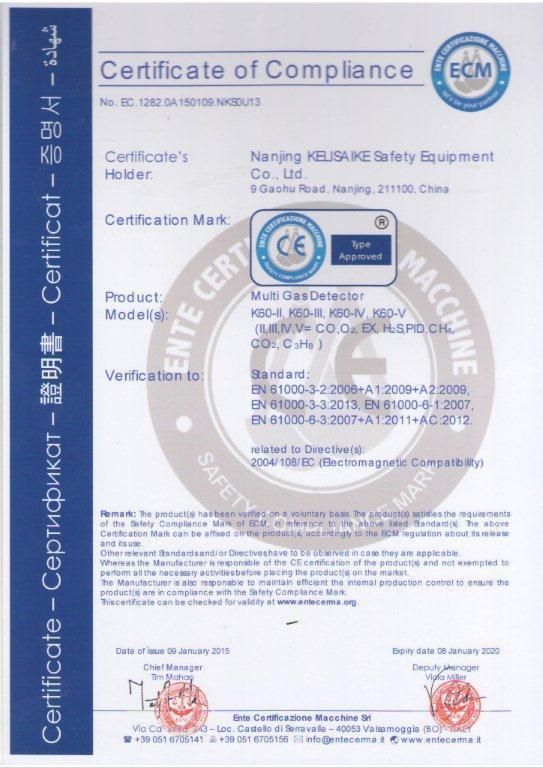

>>>CE Certificate

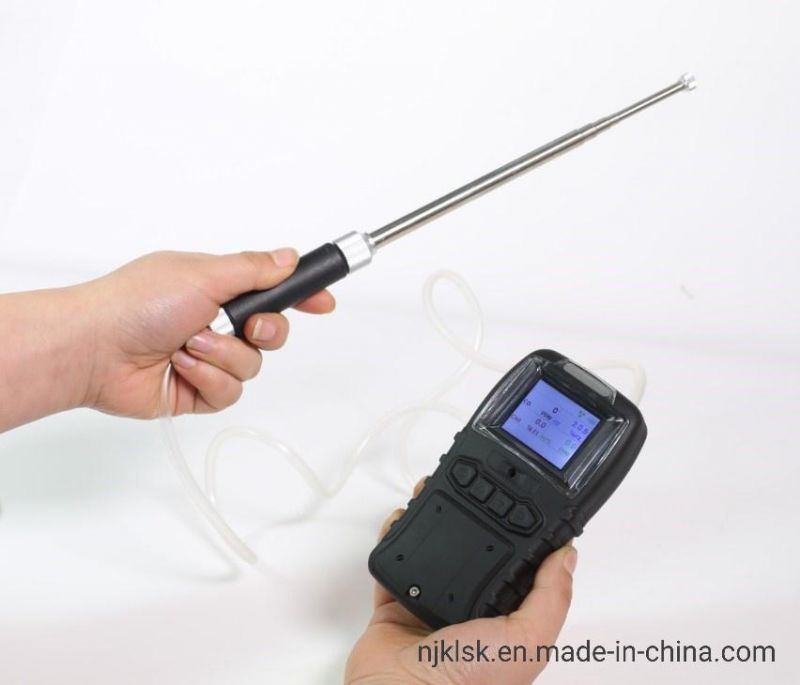

Multi gas detector with Built-in PUMP

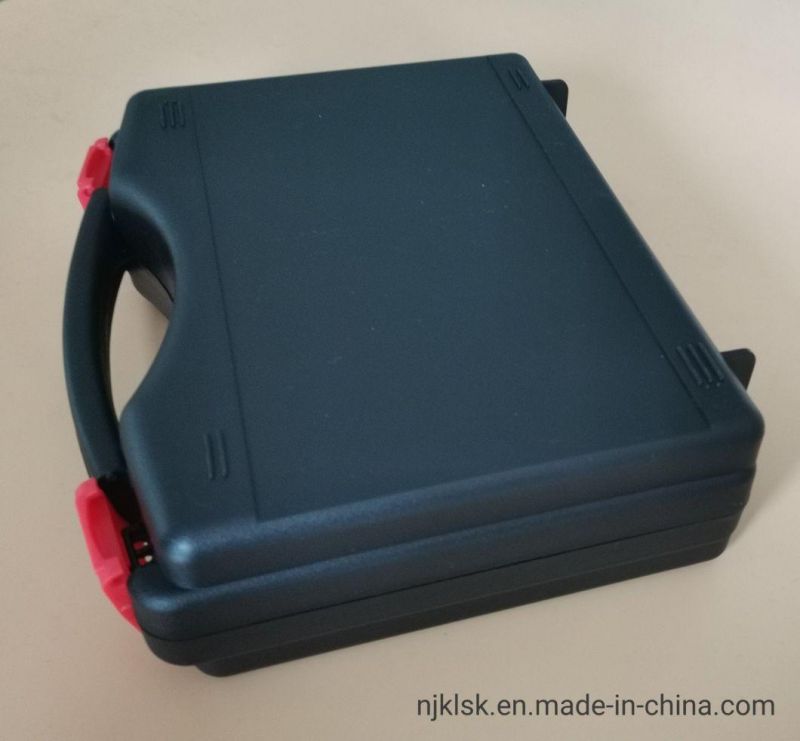

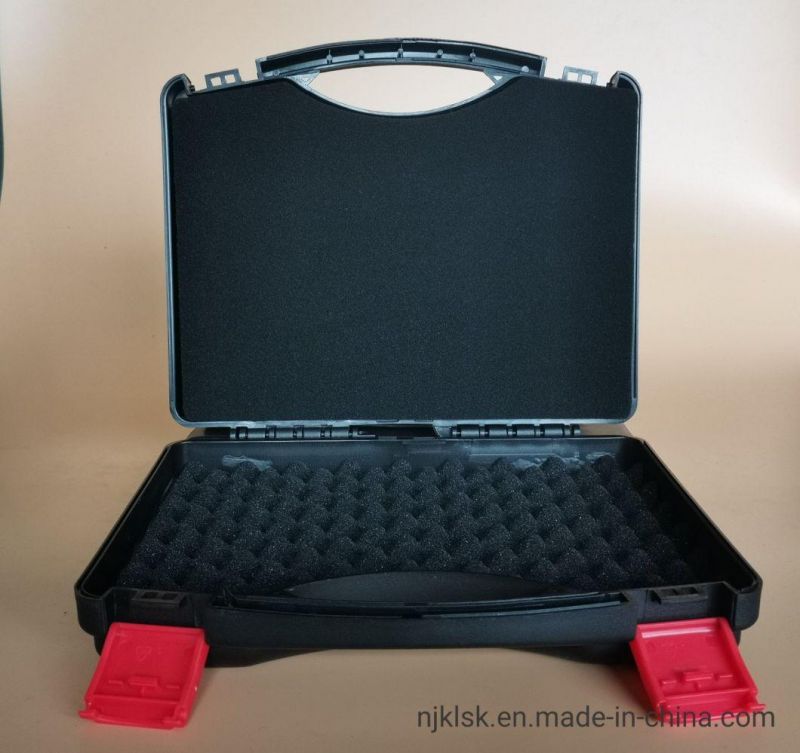

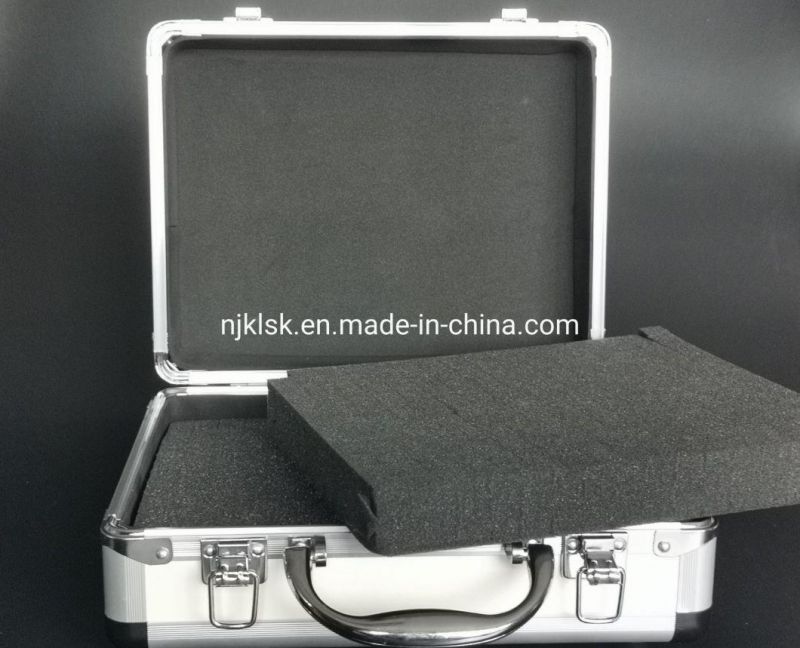

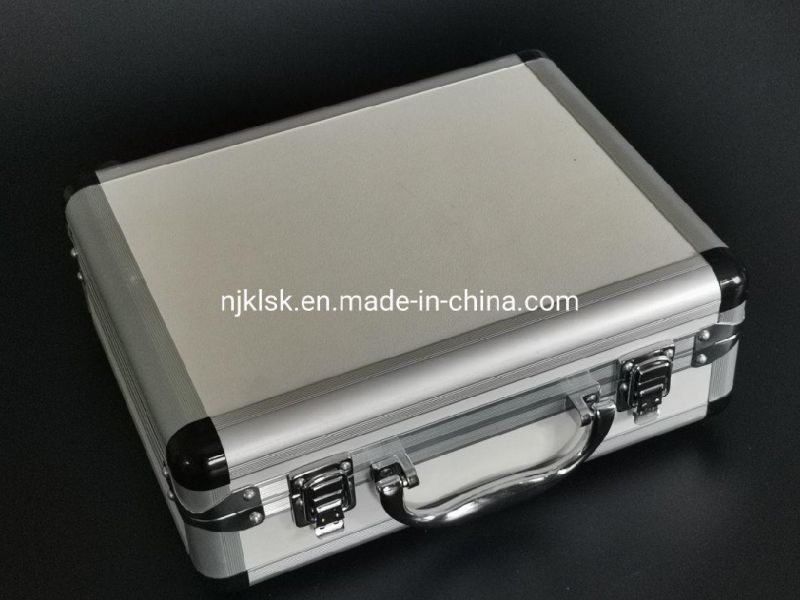

Customizable packaging

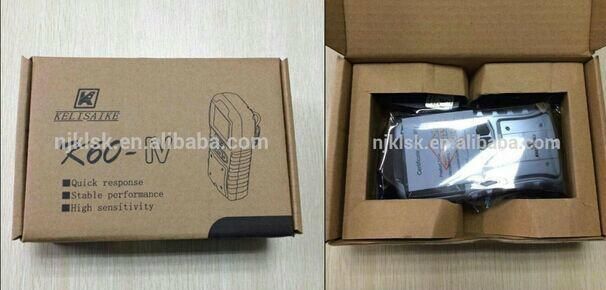

>>>Packing

>>>Our Service
1. For all our products, we offer a 1 year warranty and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support; our engineers will help to solve the problems you met.
4. We can provide OEM and ODM service.
5. Our factory is located in Nanjing city, welcome to visit our factory.
6. All products will be fully checked and well packed before shipment, and qualification certificate will be provided.

>>>Calibration
For the calibration of KELISAIKE products, please feel free to contact us for help.

>>>Why choose KELISAIKE?
1. Mutual benefit : We have our own factory.So compared other comprtitors,the price will be more favorable in the same quality..
2. Professional engineers: We have 3 engineers who have experience more than 10 years and more than 5 engineer assistants works on the gas detection line, with Hi-Tech equipments.We offer more accurate and stable products.
3. Customize : We have strong R&D team that can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS).  (b) Design your color box(≥500PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service:(a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.

>>>FAQ
Q: Are you a manufacturer?
A: Sure. We are the professional safety equipments manufacturer and have the experience of produce and market over 12 years in this field.
Q: Are you provide customization?
A: Of course. It includes gas type, gas detection range, gas alarm point etc.Please contact us about the detailed specifications.
Q: Could I order one piece sample for the quality test?
A: Sure. We recommend to check the sample before order.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
