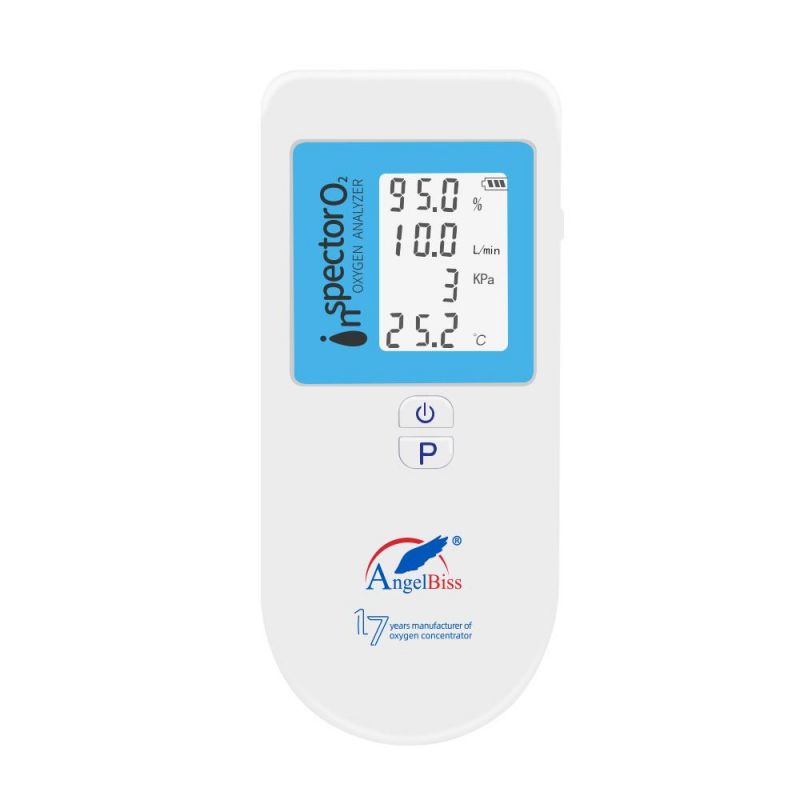

Oxygen Analyzer Detector Device for Oxygen Concentrator
AngelBiss Medical Technology Co., Ltd.- Customized：Non-Customized
- Portable：Portable
- Certification：CE
- Gas：O2
- Type：Electrochemical Gas Analyzer
- Function：O2 Testing
Base Info
- Model NO.：O2A010
- Net Weight：0.3kgs
- Gross Weight：0.35kgs
- Battery Power：0.16W
- Volt：DC 5V 2000mAh
- Package：Color Box
- Charging Time：2 Hours
- Continuous Working Time：48 Hours
- Lithium Battery Life：>2 Year
- Transport Package：Each Product to Do a Single Color Box, 5 Color Box
- Specification：166*74*32mm
- Origin：China
- HS Code：8419909000
- Production Capacity：2000piece,Month
Description
Features
- lithium battery
- USB interface
- The accuracy is ±1.8%
- The measured flow range is between 0-10LPM
- Measured concentration range 20.0% to 95.9%
- Oxygen concentration and flow can be displayed
- Measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel

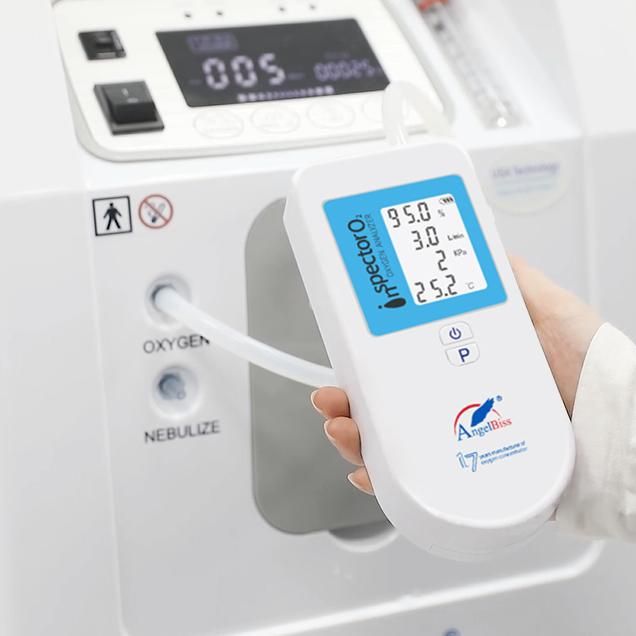

It's a personal portable oxygen content measurement device, measure oxygen purity, flow rate ,outlet pressure and oxygen temperature are all displayed on one panel. It has a USB interface, not limited by geographical location and it can be reused. Easy to use, only need to connect the instrument and oxygen interface.In addition, the oxygen analyzer can be applied to various types of oxygen concentrators, such as Yuwell, Philips, Omron,Invacare, Haigui Turtle,MED JOY, SYSMED, AERTI,JU Mao, ect.
Product Specifications
| Item | Oxygen Purity Analyzer |
| Gas Detected | O2 (Oxygen) |
| Concentration indication Range | 20.0% to 95.9% |
| Measurement Accuracy | ±1.8% F.S |
| Operating Ambient Temperature | 5~40 ºC |
| Response Time | ≤10S |
| Operating Temperature | -20ºC~50ºC |
| Dimensions | 166*74*32mm |
| Weight | 300g |
| Max Flow | 10LPM |
