• Model NO.：SF-CCT
• Application：to Measure Carbon and Silicon Content of Molten IR
• Color：Browinish Yellow
• Transport Package：Cartons and Pallet
• Specification：1.1*1.1*0.12
• Trademark：SEFU
• Origin：China
• HS Code：902790000
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. SF-CCT Application to Measure Carbon and Silicon Content of Molten IR Color Browinish Yellow Transport Package Cartons and Pallet Specification 1.1*1.1*0.12 Trademark SEFU Origin China HS Code 902790000 Production Capacity 200000PCS/Month

Product Description

                Foundry use carbon cup as thermal analysis

 Description :

  The carbon cup can quickly analyze the carbon content, silicon content and carbon equivalent in the molten iron. It can save the smelting time of the molten iron, greatly reduce the production cycle of the white gray cast iron, thereby improving the production efficiency.

Thermal Analysis cup composition

1. Resin bonded sand ntent < 0.3%)
- Thermoplastic phenol resin 6-10% of sand
- Urotropine (resin hardener) 10-15% of resin
2. Tellurium grains
3. Silica coating
4. K- type thermocouple tube

Product Detail

Shape	Square or Round
Color	Browinish Yellow
Mouth inside length	36*36mm
Mouth outside length	52*52mm
Bottom outside length	45*45mm
Thickness	8mm
Application	to measure carbon and silicon content of molten iron
Product Keywords	thermal analysis sampling cup,te cup,sampling thermal cup

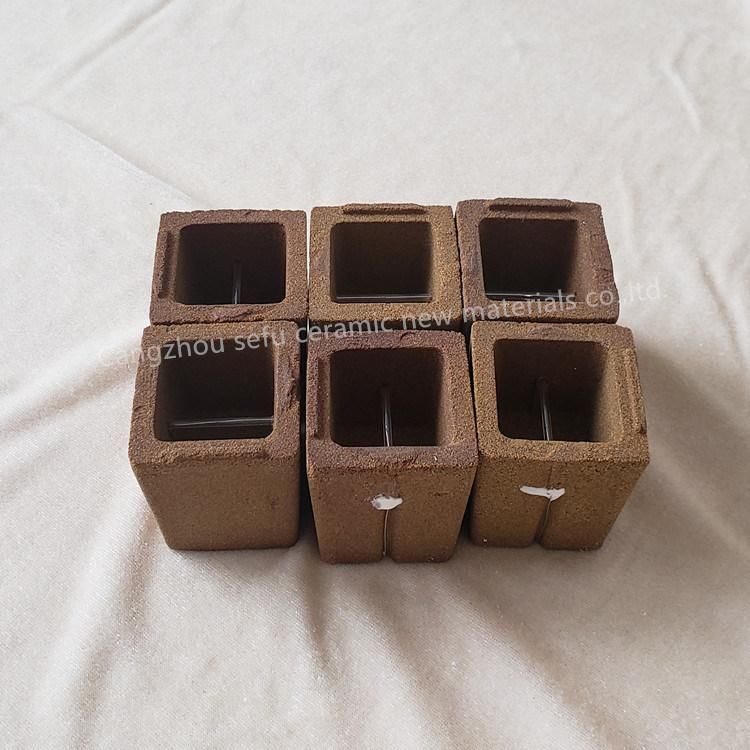

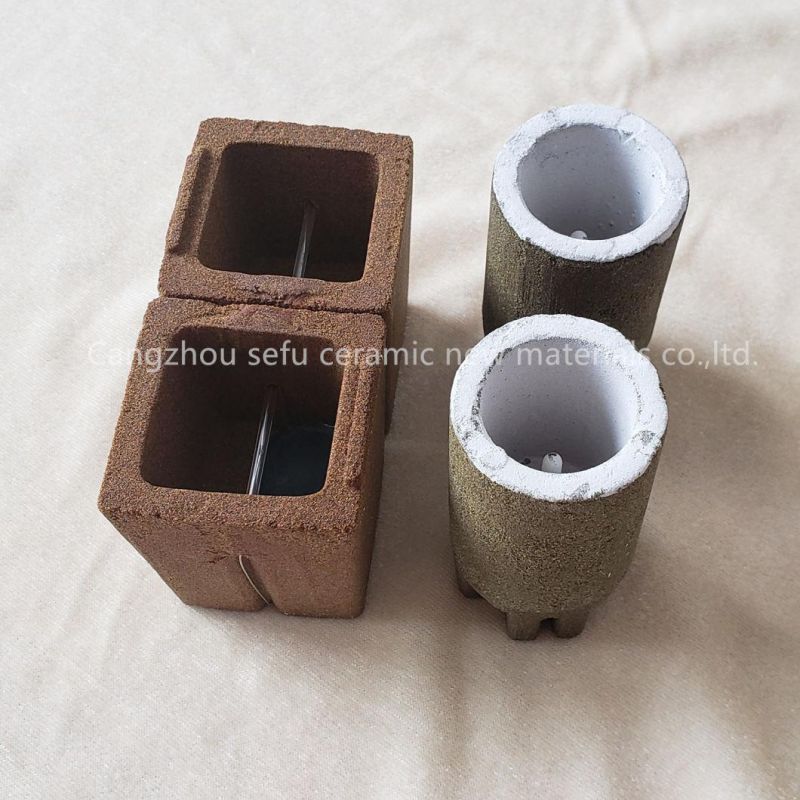

Product Show:






Shipping
Lead time: 10-15days after signed the contract


Packing

1.  Inside packing: Filters are put in small box and Layered packaging. There is cardboard between each layer.
2. Outside packing: Cartons&Pallets. Three layer corrugated cartons and export special pallets .
3. The mark on cartons can be designed according to the customer's request.

FAQ
Q: Are you Factory?
A: Definitely, we are factory.  Welcome to visit us!
Q: What Parameters should I provide to you for proper quotation?
A: Application, pore size, dimension, color, quantity, packing requirements, trade terms.
Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001.
Q: What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
Q: Do you provide Samples?
A: Yes, our factory provide samples for testing, pls send detail parameters to us. (if customized, with drawing is best) The samples will be charged or free according to the specific requirements.
Q: What's the Payment Terms?
A: We accept T/T, L/C, West Union, etc.
Q: How can I get samples?
A: We are honor to offer you the samples.
Q: What about your Packing?
A: We provide carton box, pallet, etc. OEM packing available too.
Q: Do you have R&D services?
A: Yes, we have R&D department to assist you in new product development.
Q:Does your company accept customization?
A:We accept OEM service.
Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
