• Model NO.：LZD-810
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Customized
• Control Method：P.I.D
• Display Method：LCD Liquid Crystal Display
• Programming Mode：Eight-Segment User-Programming
• Safety Protection：Automatic Operation, Automatic Stop, Timing Operat
• Oscillation Mode：Angle Oscillating
• Tilt Angle：3, 6, 9, 12° (You Can Choose One)
• Rotation Range：30-600rpm
• Rotation Accuracy：+-1rpm
• Net Weight：40kg
• Host Size：272*452*320 (mm)
• Overall Size：810*452*320 (mm)
• Work Rate：60W
• Motor：Inverter Motor
• Material Quality：Main Machine:304 Stainless Steel, Casti
• Transport Package：Standard Export Packaging
• Specification：Single layer
• Trademark：LABOAO
• Origin：China
• HS Code：84798200
• Production Capacity：5000 Set,Mouth

Basic Info.

Model NO. LZD-810 Power Supply 220V Weight 0-50kg Certification CE Customized Customized Control Method P.I.D Display Method LCD Liquid Crystal Display Programming Mode Eight-Segment User-Programming Safety Protection Automatic Operation, Automatic Stop, Timing Operat Oscillation Mode Angle Oscillating Tilt Angle 3, 6, 9, 12° (You Can Choose One) Rotation Range 30-600rpm Rotation Accuracy +-1rpm Net Weight 40kg Host Size 272*452*320 (mm) Overall Size 810*452*320 (mm) Work Rate 60W Motor Inverter Motor Material Quality Main Machine:304 Stainless Steel, Casti Transport Package Standard Export Packaging Specification Single layer Trademark LABOAO Origin China HS Code 84798200 Production Capacity 5000 Set/Mouth

Product Description

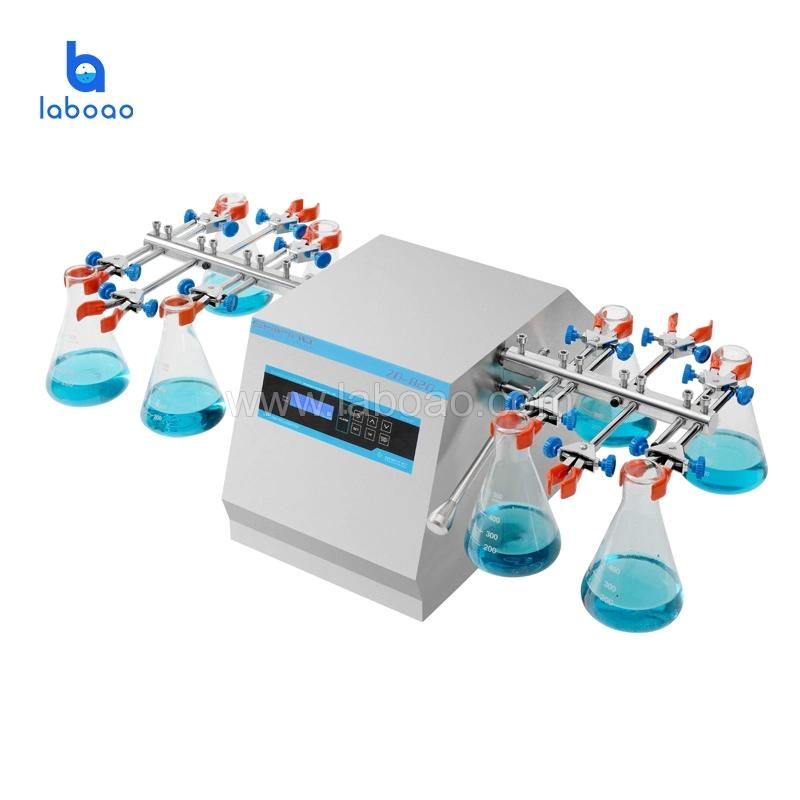

1.Description of lab shaker
The ZD-810 wrist shaker adopts the maintenance-free design of spherical bearings, which simulates the vibration of the wrist and has a good vibration mixing effect.

• The oscillation speed can be controlled within the range of 30 to 1000 rpm, the tilt angle: 3, 6, 9, 12 degrees (you can choose one), and the angle is adjustable;
• It can hold 8 or 16 standard volumetric flasks or 500ml flasks. Suitable for reagent bottles, test tubes, wide mouth bottles, narrow mouth bottles, distillation flasks, separatory funnels, straight mouth bottles, etc.;
• Leakage current and over current protection system to ensure the safety of operators;
• The sealed ball bearing transmission does not need to add lubricating oil;
• 304 high-quality stainless steel wire drawing board host, arm support;
• The 304 material arm is fixed in place by screws, and can be placed in a container with a diameter of up to 50mm, with a load of 6.8Kg on each side;
• Suitable working environment: temperature 4-40ºC, humidity 20-80%, non-condensing operating conditions make the wrist shaker can be used in incubators, environmental test chambers, refrigerators.

2.Features of lab shaker
1. From mild to powerful simulated manual oscillation, the oscillation effect is good;
2. It has a timing function to ensure that the oscillation effect can be repeated;
3. Maintenance-free spherical bearings;
4. It can realize continuous oscillation or timing oscillation.
3. Technical parameters of lab shaker

Product number	LZD-810
control method	P. I. D microcomputer environment scanning micro processing chip control
Display method	LCD liquid crystal display
Programming control	Eight sections of user-programmed programs
safety protection	Automatic operation, automatic stop, timing operation, clock display, call recovery, parameter memory, speed storage
Cycle way	Natural convection
Environmental requirements	User-specific constant temperature room or environment
Oscillation mode	Angle oscillating
Angle	Tilt angle: 3, 6, 9, 12° (you can choose one)
Rotation frequency	30-600rpm
Rotation accuracy	±1rpm
net weight	40kg
Host size	272*452*320 (mm)
Overall size	810*452*320 (mm)
Work rate	60W
Motor	Inverter motor
power supply	AC 200∽240V 50∽60HZ
Material quality	The main machine is made of 304 stainless steel, casting chassis;
