• Model NO.：HZX-400
• Portable：Portable
• Physical Analysis Type：Weightlessness Method
• Chemical Analysis Type：Rapid
• Operating Mode：Keyboard
• Heating Mode：Rapid Heating
• Off Mode：Automatic
• Range：0-100%
• Transport Package：Carton
• Specification：35*34*34cm
• Trademark：TK
• Origin：China
• HS Code：9027809990
• Production Capacity：1000000,Year

Basic Info.

Model NO. HZX-400 Portable Portable Physical Analysis Type Weightlessness Method Chemical Analysis Type Rapid Operating Mode Keyboard Heating Mode Rapid Heating Off Mode Automatic Range 0-100% Transport Package Carton Specification 35*34*34cm Trademark TK Origin China HS Code 9027809990 Production Capacity 1000000/Year

Product Description

Main technical index of instrument

• Measuring range: 0-20%
• Static accuracy: 0.2%
• Measuring accuracy: 0.1%-0.5%
• Measuring channel: 50
• Height range: 250mm±100mm
• Environment temperature: -20ºC-50ºC
• Environment humidity: 5-90%
• Repeatability: 0.1%
• Measuring time: 0.5-60 seconds
• Filtering range: 0-2.5%
• Power supply: 220V 50HZ
• Power consumption: 150W
• Light interference: not be affected by outside environmental light variation, the probe needs no cover for environmental light
• Temperature effect: temperature auto-compensate and basically not be affected by outside temperature variation

Technical parameter

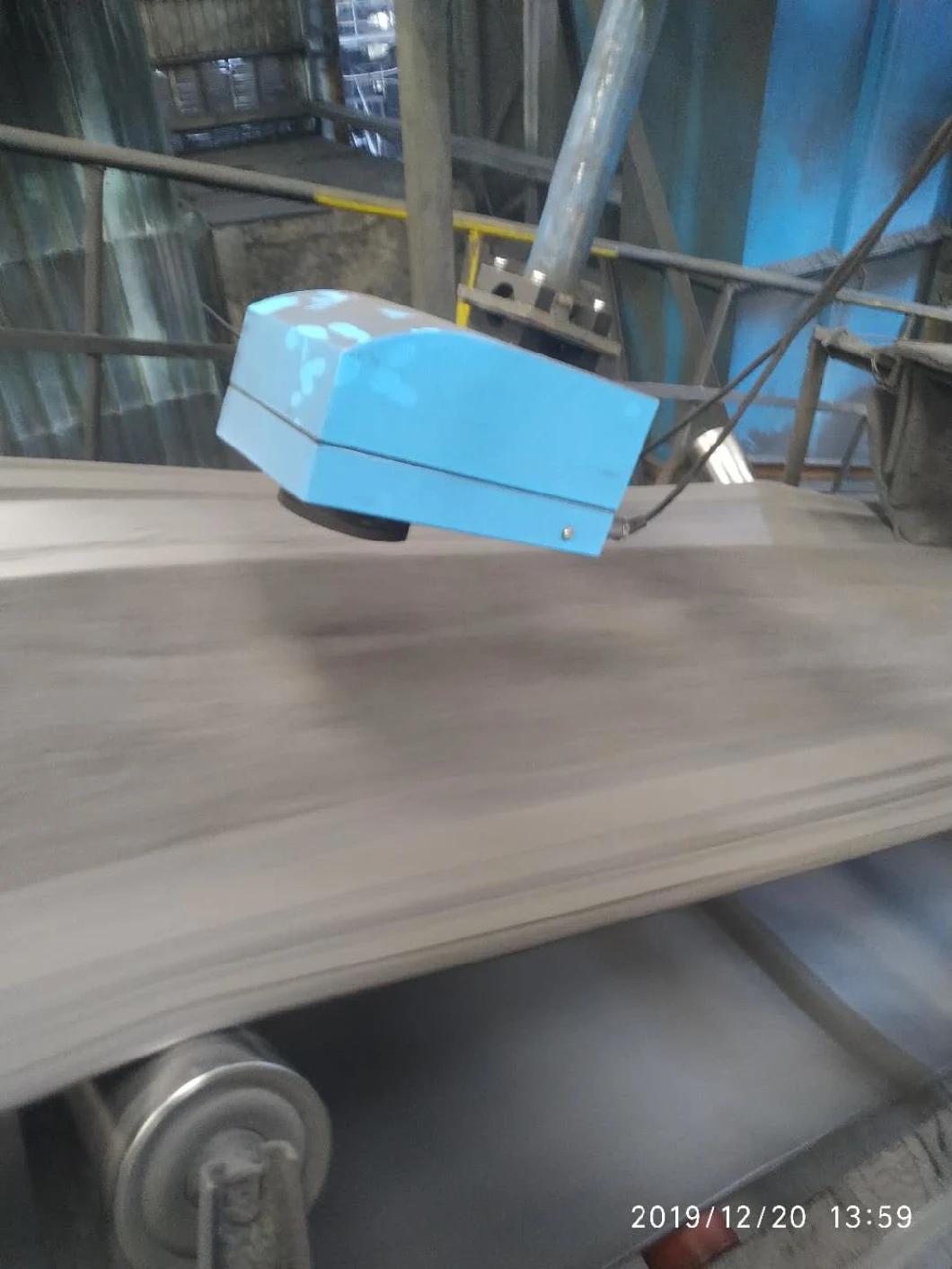

1 Probe

• Size: 340mm (length)×190mm (width)×210mm (height), refer to Figure1.3
• Weight: 6kg
• Shell standards: metal sealed box
• Environment temperature: work temperature -20-50ºC, 0-80ºC (add the cooling plate)
• Cable length: max. 15m
• Measuring height: 250mm±100mm (refer to figure2.1)
• Measuring range: Ф40mm in rating height
• Power supply: D.C 24V  50/60Hz, 100W
• Environment light affection: the instrument performance will not be affected by any kind of environment light variation, however, it is possible to interfere the normal measuring of the instrument as the strong light goes into the window directly. The following environment light will not affect the measuring accuracy:

Stable light source (color temperature 2500°K, light flux 250W/m², produced measuring noise<0.02%)
Halogen lamp (AC power supply 80W, distance 2.5m, produced measuring noise<0.1%)
Incandescent lamp (AC power supply 100W, distance 2.5m, produced measuring noise<0.1%)
Mercury lamp (AC power supply 250W, distance 2.5m, produced measuring noise<0.1%)

• I/O interface: The rear of the probe shell:

  (1) 5-pin aerial socket: probe power supply interface, the probe power supply of DC 24V input interface;The probe output signal,Rs485signal
2 Main display

• Size: 320mm (length)×285 mm (width)×110 mm (thickness), refer to Figure1.5
• Weight:7kg
• .Chassis sealed standards: metal sealed case
• Environment temperature: -20-50ºC
• Relative humidity: 5%-95% (no condensing, -20-50ºC)
• Power supply: A.C 220V 50/60Hz, max. 50W
• Displayer: Touch screen
• I/O interface: The lower part of the host shell

   (1) 3 pin socket: the power supply interface of host, the total power input interface of instrument.
   (2) 5 hole socket:  probe input signal and host supply to probe DC24V power interface
   (3) 4 hole socket :host output signal interface, RS485 output interface
   (4) 2 hole socket :host output signal interface, DC 4-20A output interface
