Bi-680 Industrial Portable Online Dissolved Oxygen Controller Meter
Hangzhou West Tune Trading Co., Limited- After-sales Service:Online After-Sales Service
- Warranty:1 Year
- Appliance:Food Analysis, Medical Research, Biochemistry
- Certification:CE
- Dissolved Oxygen Range:0.0~20.0mg,L
- % Saturation of Oxygen Range:0.0~200.0%
Base Info
- Model NO.:BI-680
- Transport Package:Export Standard Package
- Trademark:West Tune
- Origin:Shanghai
- HS Code:9030899090
- Production Capacity:50000,Yeas
Description
Basic Info.
Model NO. BI-680 Transport Package Export Standard Package Trademark West Tune Origin Shanghai HS Code 9030899090 Production Capacity 50000/YeasProduct Description
BI-680 Industrial Portable Online Dissolved Oxygen Controller Meter
MEASUREMENT PARAMETERS:
Dissolved oxygen concentration, % saturation of oxygen
FEATURES:
1. Economical online dissolved oxygen controller is equipped with a polarographic probe.
2. 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
3. Salinity and barometric pressure compensations improve the accuracy of measurement.
4. Automatic Temperature Compensation provides accurate reading over the entire range
5. Low or high alarm limit can be set by user and automatically activate an external device.
6. 4 to 20mA output signal meets industry standard.
7. Manual temperature calibration corrects the temperature deviation.
8. Setup menu allows setting the 9 parameters, including the number of calibration points, measurement unit,alarm limits, hysteresis value, etc.
9. Reset feature automatically resumes all settings back to factory default options.
METER INCLUDES:

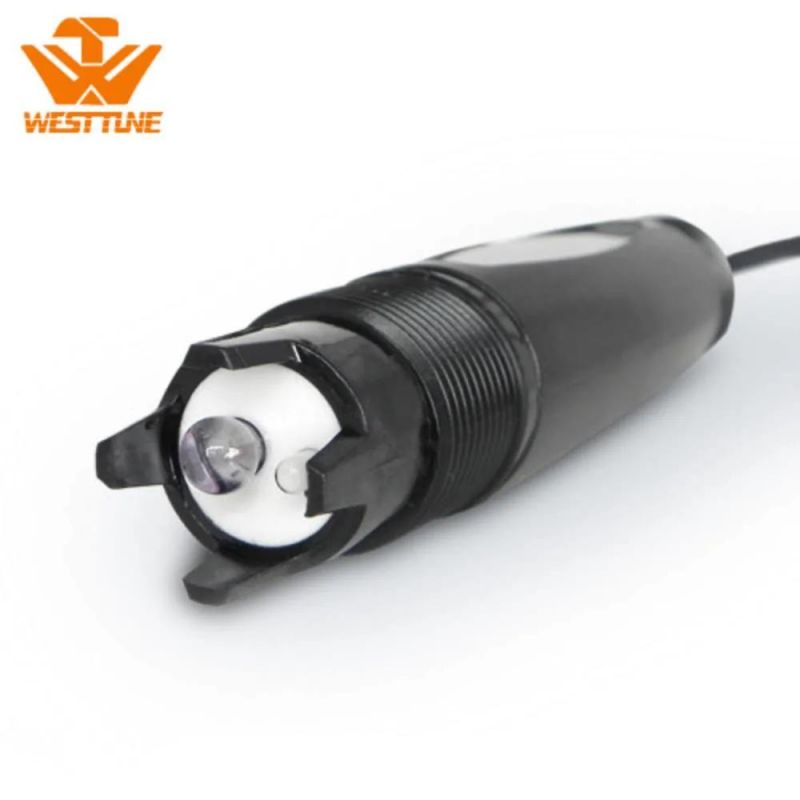

IE-80T industrial dissolved oxygen electrode, membrane cap, electrolyte solution.
Specifications:
Model | BI-680 |
Dissolved Oxygen | |
Range | 0.0~20.0mg/L |
Accuracy | ±0.5mg/L |
Resolution | 0.1mg/L |
% Saturation of Oxygen | |
Range | 0.0~200.0% |
Accuracy | ±2.0% |
Resolution | 0.001 |
Communication | |
Signal Output | 4~20mA |
Load | Max. 500Ω |
Low or High Alarm | 0.00~20.00mg/L, selectable |
Communication Interface | RS485 |
Connection Terminals | Detachable screw terminals |
General | |
Calibration Points | 1 or 2 points |
Temperature Compensation | 0~40°C, 32~104°F, Automatic |
Pressure Correction | 60.0~112.5kPa, 450~850mmHg |
Salinity Correction | 0~35g/L |
Environmental Conditions | Ambient temperature < 60°C, relative humidity < 80% |
Power | DC24V |
Dimensions | 96(L)×96(W)×75(H)mm |
Weight | 350g |
Our Company:
Delivery time: usually 3-15 days
Warranty: 12months
Payment methods: T/T, Western Union, Paypal, Credit Card, L/C
Our main lab instruments: mixer, shaker, water quality tester, autoclave, incubator, oven, water treatment(PH/DO/COND/Turbidity meter, pure water system), spectrophotometer, refractometer, peristaltic pump, heating mantle, hot plate, PCR machine, homogenizer, water bath and so on.
