• Model NO.：KZ-III-F
• Power Supply：220V
• Weight：0-50kg
• Certification：SGS TUV ISO
• Customized：Non-Customized
• Color：White&Red
• Net Weight：45kg
• Power：300W
• Frequency：50-60Hz
• Voltage：220V
• Timing Range：1s-180s
• Working Tempreature：-10ºC
• Grinding Beads Sizes：3mm, 4mm
• Grinding Beads：Steel and Zirconia
• Reference Grinding Conditions：10 Preset Conditions
• Adapters：24 Wholes Solid and Hollow
• Grinding Tubes：2ml Thicken Grinding Tubes
• Usage：Laboratory Tissue Grinding
• Transport Package：Standard Export Carton
• Specification：325mmx352mmx425mm
• Trademark：Servicebio
• Origin：Wuhan, China
• HS Code：8421199090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. KZ-III-F Power Supply 220V Weight 0-50kg Certification SGS TUV ISO Customized Non-Customized Color White&Red Net Weight 45kg Power 300W Frequency 50-60Hz Voltage 220V Timing Range 1s-180s Working Tempreature -10ºC Grinding Beads Sizes 3mm, 4mm Grinding Beads Steel and Zirconia Reference Grinding Conditions 10 Preset Conditions Adapters 24 Wholes Solid and Hollow Grinding Tubes 2ml Thicken Grinding Tubes Usage Laboratory Tissue Grinding Transport Package Standard Export Carton Specification 325mmx352mmx425mm Trademark Servicebio Origin Wuhan, China HS Code 8421199090 Production Capacity 1000sets/Year

Product Description

High throughput tissue homogenizer with low tempreature

Advantage of the products

1, Continuous working, Low temperature, Large sample quantity, No cross-contamination, Easy operation, Greater safety, Reproducible result, Convenience.
Used for homogenizing biological tissues; Homogenate can be used for following WB, PCR and biochemical experiment.

2, Dry grinding, wet grinding and homogenization treatment can be done for samples.

3, Maximum 24 samples can be processed simultaneously to complete sample preparation in a rapid and high-throughput manner.

4, A wide range of samples can be processed, see as follows:
It is suitable for grinding and crushing all kinds of plant tissues, including roots, stems, leaves, flowers, fruits, seeds and other sample.
It is suitable for grinding and crushing of food and drug composition analysis and detection.
It is suitable for grinding and crushing all kinds of animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone and other samples

5, Adoption of closed disposable centrifugal tubes effectively helps to avoid cross-contamination of samples.

6, The experiment has strong repeatability. Same grinding effect can be obtained by setting the same grinding frequency and time.

7,Refrigeration function: -10ºC to room temperature; Control accuracy: ±1ºC.


Configuration list

Sq. No.	Name	Model/Specification	Manufacturer/Place of production	Qty.	Remarks
1	High-speed low-temperature tissue homogenizer	KZ-III-F	Wuhan Servicebio	1
2	Standard solid adaptor	2mL*24	Wuhan Servicebio	1	24 samples can be ground at one time
3	Standard hollow adaptor	2mL*24	Wuhan Servicebio	1	24 samples can be ground at one time
4	Steel grinding beads	G0104 4mm	Wuhan Servicebio	1	Suitable for 2mL grinding tube
5	Steel grinding beads	G0103 3mm	Wuhan Servicebio	1	Suitable for 2mL grinding tube
6	Zirconia grinding beads	G0204 4mm	Wuhan Servicebio	1	Suitable for 2mL grinding tube
7	2mL Centrifuge tube	EP-200-M 500pcs	Wuhan Servicebio	1	Thickened wall, higher material strength, RNA free

Parameter setting and grinding beads reference
Protein extraction

Tissue	Beads	Frequency	Grinding time	Pause time	Cycle times	Suggested extracting solution
Plant leave and stem	Steel grinding beads: 3mm*3 4mm*1	60Hz	60s	15s	3	Protein extracting solution
Heart, liver, spleen, lung, kidney and brain of rat & mouse	Steel grinding beads: 3mm*2 4mm*1	60Hz	30s	15s	2	Protein extracting solution
Stomach, colon, muscle, fat of rat & mouse	Steel grinding beads: 3mm*2 4mm*1	60Hz	45s	15s	2	Protein extracting solution
Skin, ear, tail, vessel of rat & mouse	Steel grinding beads: 3mm*3 4mm*2	70Hz	60s	20s	3	Protein extracting solution
Cartilage, hair and hard bone of rat & mouse	Steel grinding beads: 3mm*4 4mm*2	70Hz	90s	20s	3	Protein extracting solution

RNA extraction

Tissue	Beads	Frequency	Grinding time	Pause time	Cycle times	Suggested extracting solution
Plant leave and stem	Zirconia grinding beads: 3mm*3 4mm*1	60Hz	60s	15s	3	RNA extracting solution
Heart, liver, spleen, lung, kidney and brain of rat & mouse	Zirconia grinding beads: 3mm*2 4mm*1	60Hz	30s	15s	2	RNA extracting solution
Stomach, colon, muscle, fat of rat & mouse	Zirconia grinding beads: 3mm*3 4mm*2	60Hz	45s	15s	2	RNA extracting solution
Skin, ear, tail, vessel of rat & mouse	Zirconia grinding beads: 3mm*4 4mm*2	70Hz	60s	20s	3	RNA extracting solution
Cartilage, hair and hard bone of rat & mouse	Zirconia grinding beads: 3mm*3 4mm*4	70Hz	90s	20s	3	RNA extracting solution

Certificates & Exhibitions




Delivery & Shipment



Q/A

1. Are you manufacturer?

Yes, we are professional manufacturer for materials-antibodies and laboratory instruments & plastic-ware, and we can offer the best price for you.

2. Payment Terms:

We can accept 30% advance and before ship the goods to port pay the balance.

3. How about the quality?

We can offer the samples to you with free, you can check the quality before place the order.

4. How do you treat quality complaint?

First of all, our quality control will reduce the quality problem to near zero. If there is a quality problem caused by us, we will send you free goods for replacement or refund your loss.

5. Could you offer a free sample for the quality test?

Free sample is available for customers, but freight cost shall be collected at your side.

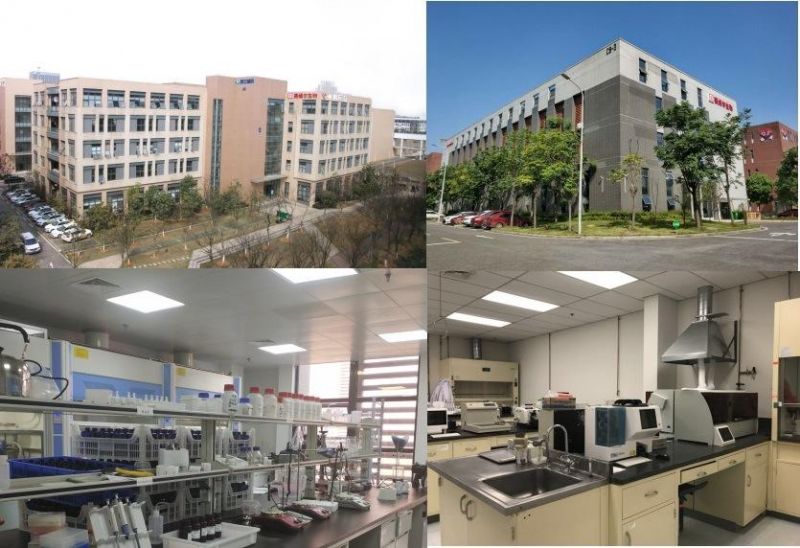

Company information:

Wuhan Servicebio Technology Co., Ltd. was founded in 2007, headquartered in Wuhan Optical Valley Biological City, is a high-tech enterprise specializing in providing technical services and scientific research products for life and health science research. With more than 1000 employees and more than 40 service centers in large and medium-sized cities across the country, it can provide support and service to scientists who explore the mysteries of life in an all-round way.

The company has strong scientific research and service strength, has antibody research and development and production center, ultra-micro pathology center, pathological detection center, SPF experimental animal center and other technical platforms, (the company also) has a complete set of experimental platforms, instruments and equipment for pathological immune detection and analysis, and mastered the technical core and patented technology, and independently developed and optimized a variety of experimental methods and processes, and developed a number of matching reagents and consumables. The company has a special R & D team to produce and verify antibodies. Laboratory consumables centrifugal tubes and suckers have formed large-scale production and can be automated packaged. We can provide experimental design, method optimization, Experimental operation, analysis and testing, reagent consumables and other omni-directional integrated scientific research and technical services for customers.

The experimental instruments have passed the system certification, not only the internal introduction of ISO9001 quality management system, but also through the European Union CE security certification and FCC certification, National High-tech Enterprise Certification and so on.

The company has more than 500 kinds of products, exported to Europe, the Middle East, Southeast Asia, Africa, America and other countries. All the products are well received by customers. The lab instruments and consumables independently R&D by Servicebio are widely used in more than 200 cities in China.

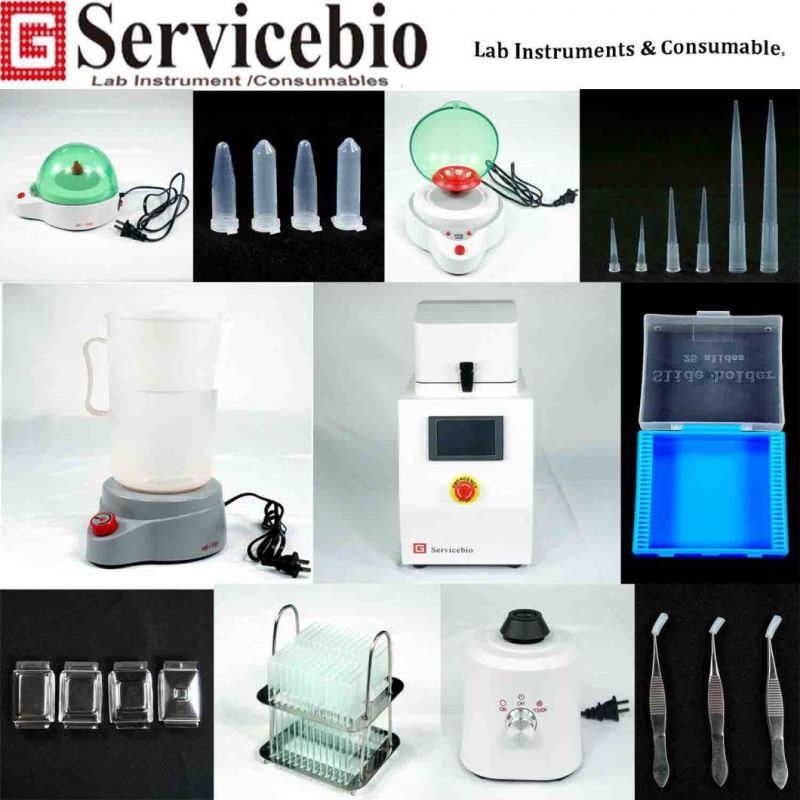

More products
