• Model NO.：KZ-III-F
• Power Supply：220V
• Weight：0-50kg
• Certification：CE, TUV SGS ISO
• Customized：Non-Customized
• Color：White&Red
• Rotating Speed：7000rpm
• Frequency：50-60Hz
• Voltage：220V
• Timing Range：1s-180s
• Net Weight：45kg
• Working Tempreature：-10ºC
• Grinding Beads：Steel and Zirconia
• Reference Grinding Conditions：10 Preset Conditions
• Adapters：24 Wholes Solid and Hollow
• Grinding Tubes：2ml Thicken Grinding Tubes
• Usage：Laboratory Tissue Grinding
• Transport Package：Standard Export Carton
• Specification：325mmx352mmx425mm
• Trademark：Servicebio
• Origin：Wuhan, China
• HS Code：8421199090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. KZ-III-F Power Supply 220V Weight 0-50kg Certification CE, TUV SGS ISO Customized Non-Customized Color White&Red Rotating Speed 7000rpm Frequency 50-60Hz Voltage 220V Timing Range 1s-180s Net Weight 45kg Working Tempreature -10ºC Grinding Beads Steel and Zirconia Reference Grinding Conditions 10 Preset Conditions Adapters 24 Wholes Solid and Hollow Grinding Tubes 2ml Thicken Grinding Tubes Usage Laboratory Tissue Grinding Transport Package Standard Export Carton Specification 325mmx352mmx425mm Trademark Servicebio Origin Wuhan, China HS Code 8421199090 Production Capacity 1000sets/Year

Product Description

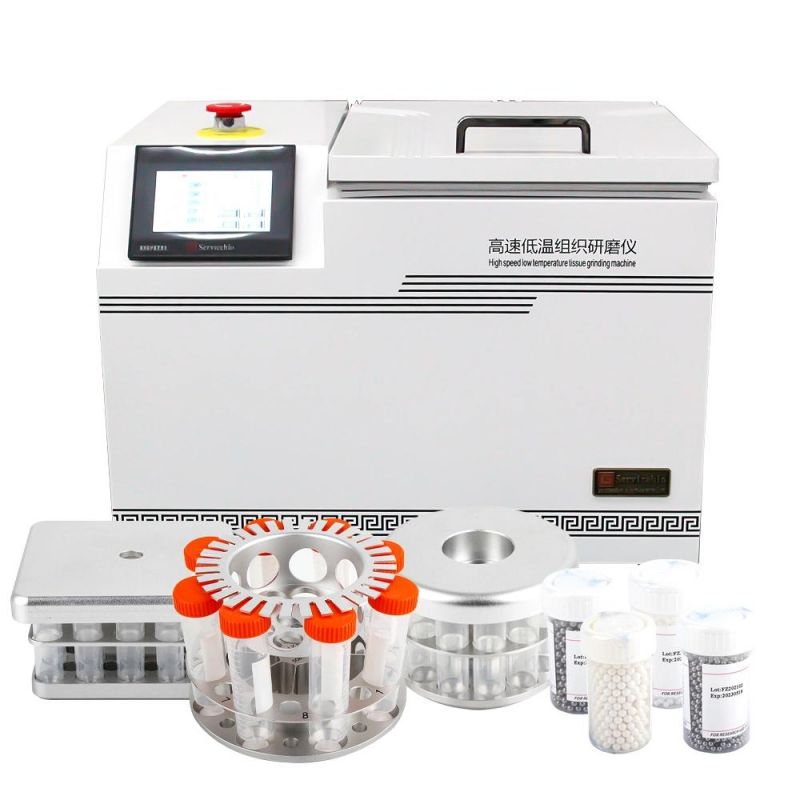

High Throughput Frozen Tissue Homogenizer Tissue Grinder easy to use

Advantage of the products

1, Continuous working, Low temperature, Large sample quantity, No cross-contamination, Easy operation, Greater safety, Reproducible result, Convenience.
Used for homogenizing biological tissues; Homogenate can be used for following WB, PCR and biochemical experiment.

2, Dry grinding, wet grinding and homogenization treatment can be done for samples.

3, Maximum 24 samples can be processed simultaneously to complete sample preparation in a rapid and high-throughput manner.

4, A wide range of samples can be processed, see as follows:
It is suitable for grinding and crushing all kinds of plant tissues, including roots, stems, leaves, flowers, fruits, seeds and other sample.
It is suitable for grinding and crushing of food and drug composition analysis and detection.
It is suitable for grinding and crushing all kinds of animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone and other samples

5, Adoption of closed disposable centrifugal tubes effectively helps to avoid cross-contamination of samples.

6, The experiment has strong repeatability. Same grinding effect can be obtained by setting the same grinding frequency and time.

7,Refrigeration function: -10ºC to room temperature; Control accuracy: ±1ºC.


Configuration list

Sq. No.	Name	Model/Specification	Manufacturer/Place of production	Qty.	Remarks
1	High-speed low-temperature tissue homogenizer	KZ-III-F	Wuhan Servicebio	1
2	Standard solid adaptor	2mL*24	Wuhan Servicebio	1	24 samples can be ground at one time
3	Standard hollow adaptor	2mL*24	Wuhan Servicebio	1	24 samples can be ground at one time
4	Steel grinding beads	G0104 4mm	Wuhan Servicebio	1	Suitable for 2mL grinding tube
5	Steel grinding beads	G0103 3mm	Wuhan Servicebio	1	Suitable for 2mL grinding tube
6	Zirconia grinding beads	G0204 4mm	Wuhan Servicebio	1	Suitable for 2mL grinding tube
7	2mL Centrifuge tube	EP-200-M 500pcs	Wuhan Servicebio	1	Thickened wall, higher material strength, RNA free

Parameter setting and grinding beads reference
Protein extraction

Tissue	Beads	Frequency	Grinding time	Pause time	Cycle times	Suggested extracting solution
Plant leave and stem	Steel grinding beads: 3mm*3 4mm*1	60Hz	60s	15s	3	Protein extracting solution
Heart, liver, spleen, lung, kidney and brain of rat & mouse	Steel grinding beads: 3mm*2 4mm*1	60Hz	30s	15s	2	Protein extracting solution
Stomach, colon, muscle, fat of rat & mouse	Steel grinding beads: 3mm*2 4mm*1	60Hz	45s	15s	2	Protein extracting solution
Skin, ear, tail, vessel of rat & mouse	Steel grinding beads: 3mm*3 4mm*2	70Hz	60s	20s	3	Protein extracting solution
Cartilage, hair and hard bone of rat & mouse	Steel grinding beads: 3mm*4 4mm*2	70Hz	90s	20s	3	Protein extracting solution

RNA extraction

Tissue	Beads	Frequency	Grinding time	Pause time	Cycle times	Suggested extracting solution
Plant leave and stem	Zirconia grinding beads: 3mm*3 4mm*1	60Hz	60s	15s	3	RNA extracting solution
Heart, liver, spleen, lung, kidney and brain of rat & mouse	Zirconia grinding beads: 3mm*2 4mm*1	60Hz	30s	15s	2	RNA extracting solution
Stomach, colon, muscle, fat of rat & mouse	Zirconia grinding beads: 3mm*3 4mm*2	60Hz	45s	15s	2	RNA extracting solution
Skin, ear, tail, vessel of rat & mouse	Zirconia grinding beads: 3mm*4 4mm*2	70Hz	60s	20s	3	RNA extracting solution
Cartilage, hair and hard bone of rat & mouse	Zirconia grinding beads: 3mm*3 4mm*4	70Hz	90s	20s	3	RNA extracting solution
