• Power Supply：220V
• Weight：0-50kg
• Certification：CE, RoHS
• Customized：Non-Customized
• Model No.：Gentier 48e
• Detection Flux：48
• Temperature Control Technology：Semiconductor Refrigeration Chip Heating and Cooli
• Reaction System：5μl~100μl
• Communication Interface：Ethernet (RJ45), USB
• Temperature Control Range：0.0°c~100°c
• Module Temperature Control Accuracy：≤ 0.1ºC
• Heating Rate：8°c,S
• Cooling Rate：6.1ºC,S
• Transport Package：Export Packing
• Specification：260*400*260mm(W*L*H)
• Trademark：LABOAO
• Origin：China
• HS Code：8419899090
• Production Capacity：2000set,Month

Basic Info.

Power Supply 220V Weight 0-50kg Certification CE, RoHS Customized Non-Customized Model No. Gentier 48e Detection Flux 48 Temperature Control Technology Semiconductor Refrigeration Chip Heating and Cooli Reaction System 5μl~100μl Communication Interface Ethernet (RJ45), USB Temperature Control Range 0.0°c~100°c Module Temperature Control Accuracy ≤ 0.1ºC Heating Rate 8°c/S Cooling Rate 6.1ºC/S Transport Package Export Packing Specification 260*400*260mm(W*L*H) Trademark LABOAO Origin China HS Code 8419899090 Production Capacity 2000set/Month

Product Description

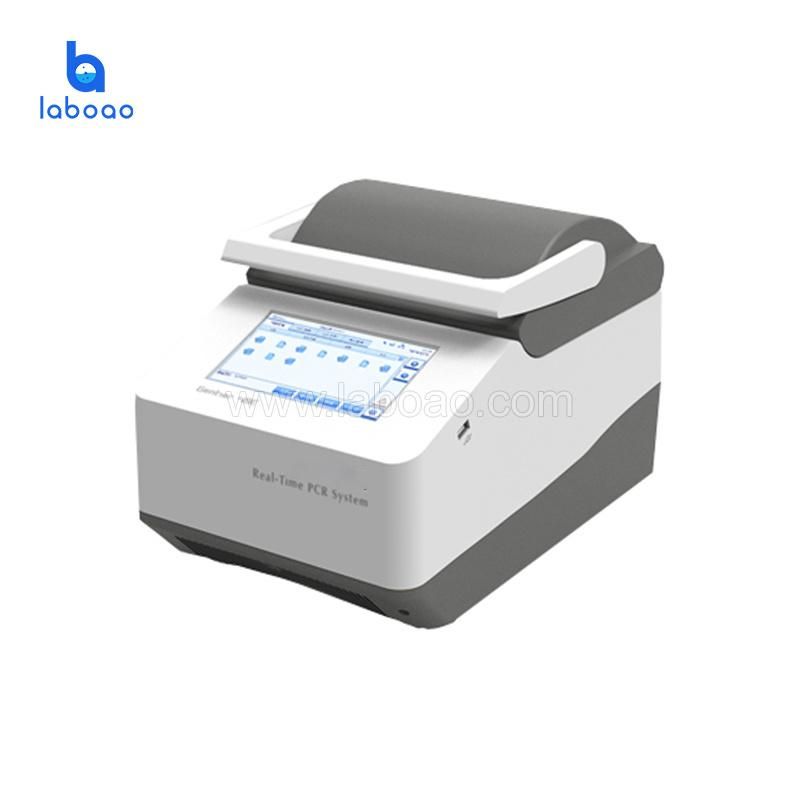

Real-time Quantitative PCR For Testing Samples and DNA

Description:
Gentier 48E real-time PCR detection system is specially designed for workers in small and medium-sized laboratories, mobile laboratories, and on-site detection. With excellent performance and portability, make your testing more convenient, accurate and efficient.

Feature:

Excellent performance:
1.Detection flux: 48-well 4-color fluorescence detection, each tube can detect 4 items at the same time, which greatly improves the experimental efficiency and avoids the inconvenience caused by repeated sample detection.
2.Temperature control: The maximum heating rate is up to 8 ° C / s, and the maximum cooling rate is up to 6.1 ° C / s. It only takes 30min to complete a standard PCR amplification procedure, which can realize your rapid detection; the temperature accuracy is controlled within ± 0.1 ° C To ensure good repeatability and accuracy.
3.Fluorescence scan: It takes only 2s to complete all 48-well 4-color fluorescence scans. For users who need to use the high-resolution melting curve (HRM) function, it can significantly reduce the overall test time and greatly improve work efficiency.
Convenient operation:
1 .Built-in 7-inch full-color touch screen, independent control system and USB data export function, without the need to connect to a computer, the entire experiment can be completed in a single machine operation.
2.Full Chinese system interface and wizard-based parameter setting. After simple training, you can fully grasp the standard use of the instrument and quickly have the ability to independently operate experiments.
3.Standard network interface, through the setting of network parameters, can realize remote operation, experiment monitoring and data transmission in LAN.
Powerful data processing:
1.Multi-use in one machine: In addition to conventional analysis functions such as relative quantification, absolute quantification, HRM, and SNP, it is more compatible with a variety of isothermal amplification technologies for fluorescence analysis and truly realizes one machine for multiple uses.
2.Complex data analysis: In addition to the instrument operation software, it is also equipped with a set of independent data management software to achieve centralized management, statistics, and analysis of users' massive experimental data, reducing errors caused by complex analysis of the original data manually.
3.Universal report function: The built-in universal report function can adjust and customize the experimental report format according to the needs of different users, and establish its own unique experimental report style.
Excellent environmental adaptability:
1.Small size, light weight, easy to carry, can be moved to the required place or equipped to a mobile laboratory for on-site testing according to needs.
2.Using a fixed fluorescence detection unit, no need to perform any calibration work after moving, it can be started directly.
Application areas:
Rapid food safety testing
Public health on-site testing
Small and Medium-sized Scientific Research Labs
Clinical Immediate Test (POCT)
Specification:

Detection flux	48 0.2ml transparent 48-well plate without skirt, octaplex tube, single tube, etc.
Applicable dyes / probes	Channel 1: FAM, SYBR Green I, etc. Channel 2: VIC, HEX, TET, JOE, etc. Channel 3: ROX, Texas Red, etc. Channel 4: Cy5, etc.
reaction system	5μl~100μl
Power Specifications	AC 220V(±10%),50Hz,600VA
Communication Interface	Ethernet (RJ45), USB
weight	11 Kg
Dimensions	260*400*260mm(W*L*H)
Temperature Control System
Temperature control technology	Semiconductor refrigeration chip heating and cooling technology
Temperature control range	0.0ºC~100.0ºC
Temperature accuracy	≤ 0.1ºC
Module temperature control accuracy	≤ 0.1ºC
Temperature uniformity	±0.1ºC
Heating rate	8ºC/s
Average heating rate	6.1ºC/s
Cooling rate	6.1ºC/s
Average cooling rate	4.0ºC/s
Temperature gradient	support
Gradient range	35ºC~100ºC
Gradient span	1ºC~40ºC
Temperature control program	Supports standard PCR, gradient PCR, landing PCR, long fragment PCR, etc.
Temperature range of hot lid	40ºC~110ºC
Optical system
Excitation light source	Highlight maintenance-free LED
Fluorescence detection device	Photodiode
Fluorescence scan time	48-hole 4-color detection in 2s
Excitation wavelength	Channel 1: 470nm Channel 2: 523nm Channel 3: 571nm Channel 4: 630nm
Detection wavelength	Channel 1: 525nm Channel 2: 564nm Channel 3: 612nm Channel 4: 670nm
Fluorescence linear	≥0.990
Sample repeatability	Ct value CV% ≤ 0.5%
Sample linear	/r/≥0.999
Software parameters
display	7-inch full-color touch display for stand-alone operation
Software functions	Supports absolute quantification, relative quantification, isothermal amplification, genotyping, endpoint fluorescence analysis, etc.
language support	Support Chinese / English bilingual switching
data storage	Can store ≥1000 experiment setup files / experiment data files
remote control	Can realize one main control computer to control 10 instruments
Power failure protection	Instantaneous power failure protection, continue to run unfinished experiments after the instrument restarts
Data import and export	Support U disk import and export of experimental data
