• Model NO.：MP400
• Gas：H2S
• Type：Electrochemical Gas Analyzer

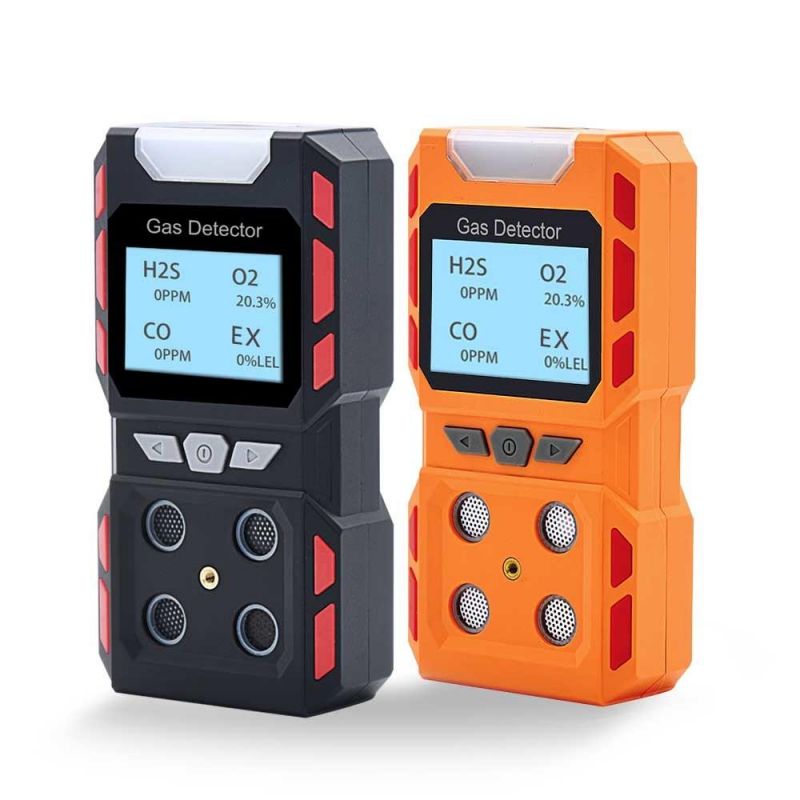

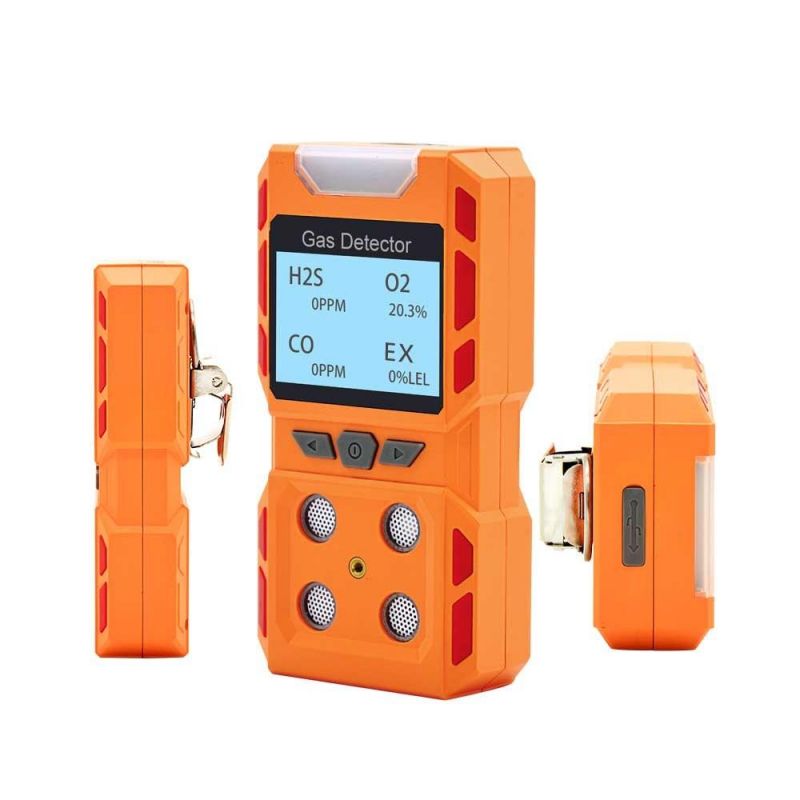

• Name：Multi-4 Gases Pumped Gas Leakage Detector
• Target Gas：Combustible and Toxic Gas
• Voltage：DC3.7V (Lithium Battery Capacity 1800mAh)
• Display：High Definition LCD
• Unit：%Vol , %Lel , Ppm , Mg,M3 (Optional)
• Ingress Protection：IP65
• Size：210mm*70mm*54mm
• Weight：350g
• Ex Grade：Ex Ib Iic T4
• Transport Package：Box
• Specification：210mm*70mm*54mm
• Origin：China
• Production Capacity：50000piece,Year

Overview Product Description

The portable voice type single gas detector (hereinafter referred to as detector) is a safety device that can continuously detect the concentration of leaked gas . Advanced integrated circuit technology , embeded with microcomputer control , high quality imported gas sensor , excellnet sensitivity and excellent repeatability, using dot matrix LCD monitor, support Chinese and English interface and voice promts , users can quickly understand this product, easy to use and maintain , high strength , high-grad exteriror shell , dustproof , waterproof  and explosion-proof.



The detector is widely used in petroleum , chemical , environmental protection , metallurgy , etc. which is necessary to safely monitor toxic and harmful , and explosion industries . The detector can effectively predict of dangerous gas concentration and alarm , ensure the safety of the workers is not threatened , and the production equipment is not damaged.

Product ParametersGas typerangeLow alarm pointHigh alarm pointResolutionEX0-100% LEL20% LEL50% LEL1% LELH2S0-100ppm10ppm35ppm1ppmCO0-1000ppm50ppm150ppm1ppmO20-30% VOL19.5% VOL23.5% VOL0.1% VOLPlease contact the company for other gas combinationsAccuracy:≤±5% F.S.Indication mode:high definition LCD screenWorking environment:Temperature -20ºC~+50ºC; humidity <95%RH condensationWorking voltage:DC3.7V (lithium battery capacity 3000mAh))Alarming method:sound , light , vibrationProtection level:Ip65Appearance size:140x73x32mm(LxWxH)Weight:120gEx grade:Ex ib IIC T4Features

High quality imported sensor

Matrix LCD monitor

Human voice prompts

Adjustable alarm levels

Self-diagnostic and self-correction function
