• Model NO.：GTQ-6000
• Performance：Semi-automatic
• Power Supply：220V
• Certification：CE
• Weight：190kgs
• Customized：Customized
• Working Voltage：220V 50Hz
• Spindle Stroke：220mm.
• Spindle Speed：500-6000 Revolutions,Min
• Maximum Cutting Diameter：Φ60mm
• Feed Speed：0.01~0.30mm,S
• Cutting Sheet Size：200×32×1mm
• Power：1200W
• Dimensions：800×830×480m
• Actual Weight：190kg
• Transport Package：Plywood Box
• Specification：800× 830× 480m
• Trademark：OEM ODM
• Origin：China Shandong Others
• HS Code：8460402000
• Production Capacity：2000 Set Per Year

Basic Info.

Model NO. GTQ-6000 Performance Semi-automatic Power Supply 220V Certification CE Weight 190kgs Customized Customized Working Voltage 220V 50Hz Spindle Stroke 220mm. Spindle Speed 500-6000 Revolutions/Min Maximum Cutting Diameter Φ60mm Feed Speed 0.01~0.30mm/S Cutting Sheet Size 200×32×1mm Power 1200W Dimensions 800×830×480m Actual Weight 190kg Transport Package Plywood Box Specification 800× 830× 480m Trademark OEM ODM Origin China Shandong Others HS Code 8460402000 Production Capacity 2000 Set Per Year

Product Description

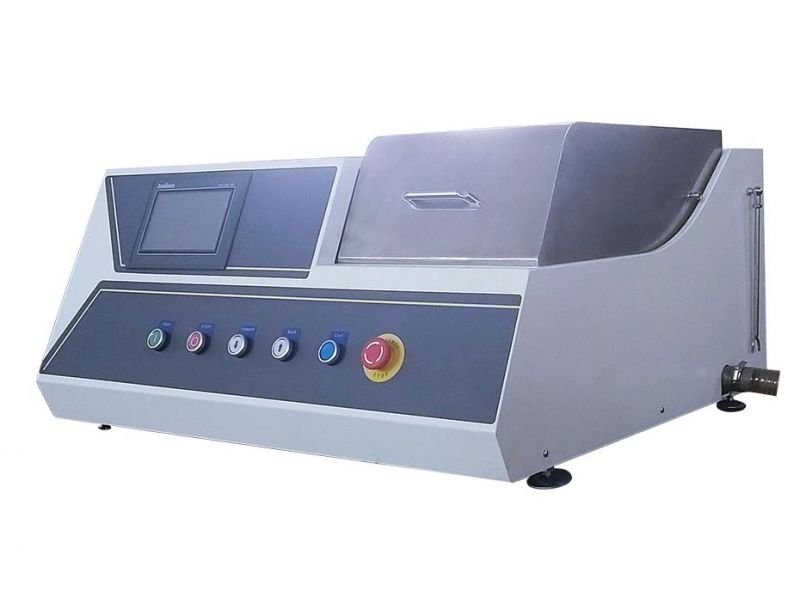

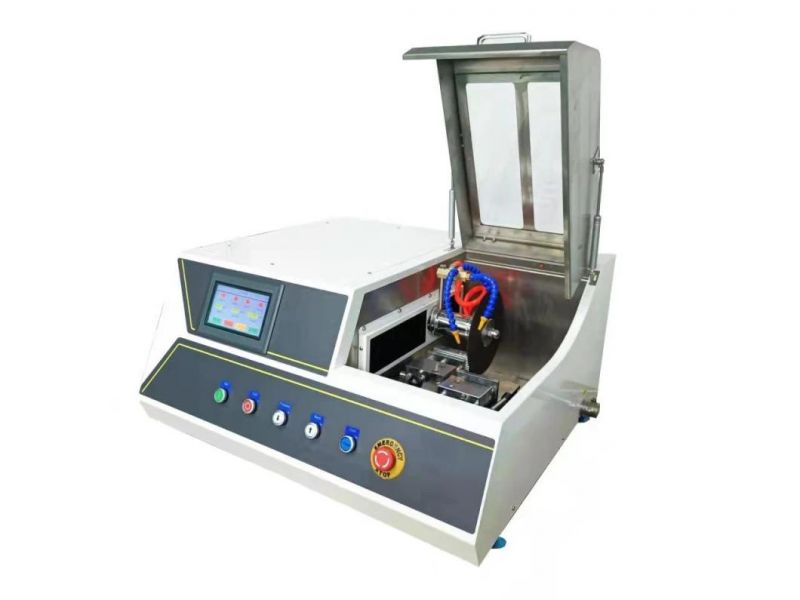

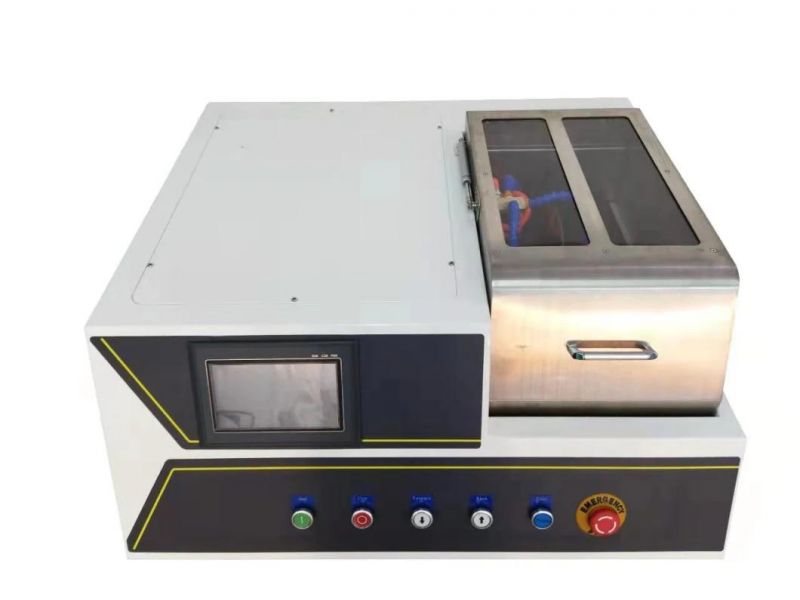

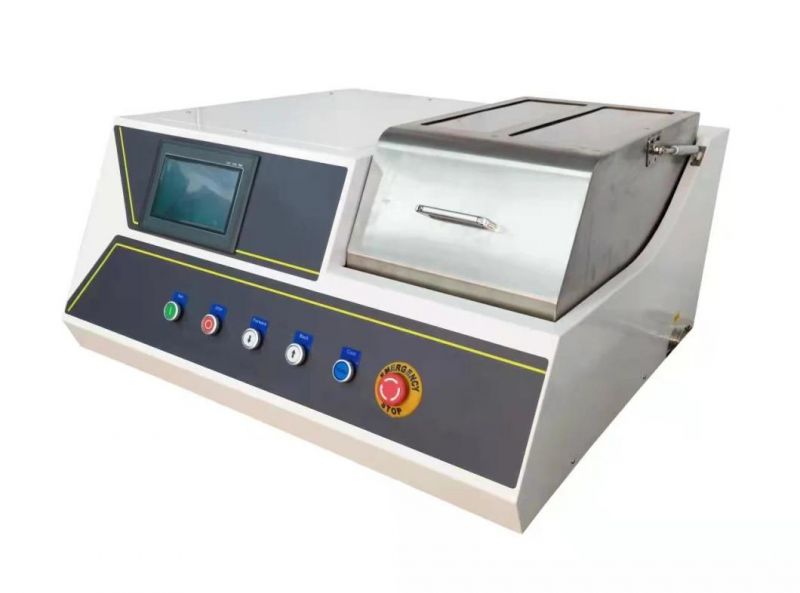

GTQ-6000 High-speed Precision Cutting Machine
Cutter for metals electronic components ceramic materials, crystals, cemented carbide, rock samples, mineral samples, concrete, biological organic materials



Cutting Mode:
Direct cutting (suitable for ferrous metals with diameter less than 20mm)
Impact cutting (suitable for ferrous metals with a diameter greater than 20mm)",
The above two modes can be selected by clicking directly.
"Direct cutting": After setting the "cutting speed" mm/S for the machine, the cutting blade advances uninterruptedly to work.

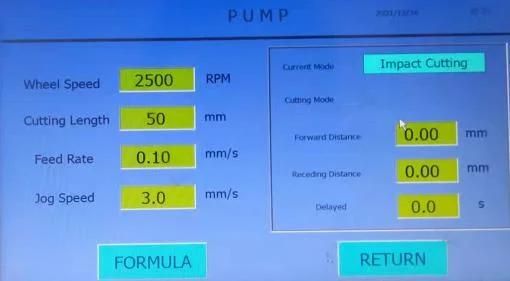

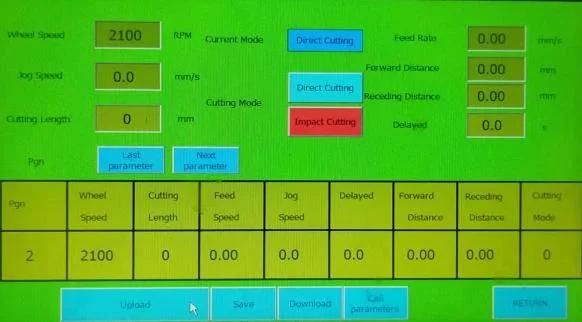

"Impact cutting": After setting the "cutting speed" mm/S for the machine, the cutting blade will move at the "cutting speed" rpm, after traveling the "forward distance" mm, back to the "backward distance" mm, and stop at the "interval time" s. This cycle continues until the end of the "cutting stroke".
GTQ-6000 high-speed precision cutting machine is suitable for precise non-deformation of : metals, electronic components, ceramic materials, crystals, hard alloys, rock samples, mineral samples, concrete, organic materials, biological materials (tooth, bone) and other materials. cut.
 The equipment adopts PLC control, with high positioning accuracy; large speed adjustment range; strong cutting ability; strong circulation cooling system; preset feed speed; large touch screen control display; easy to operate and control; automatic cutting can reduce operator fatigue and ensure It ensures the consistency of sample production; real-time monitoring of the entire cutting process and alarm prompts; the large and bright cutting room with safety switch is one of the ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high-quality samples.Main Technical Parameter    Feeding speed: 0.01~0.30mm/s (adjustment step is 0.01)
Cutting saw blade speed: 500~6000rpm
Working stroke: Y axis 130mm
Cutting blade size: 200×32×1mm (diamond slice or resin slice)
Dimensions: 780mm×870mm×440mm (length×width×height)
Cutting power: 1200W
Power supply: 220V 50Hz
Weight: 190kg

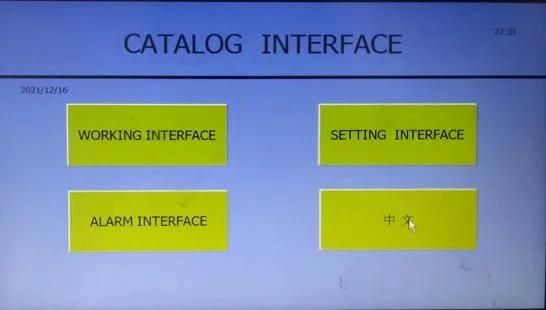

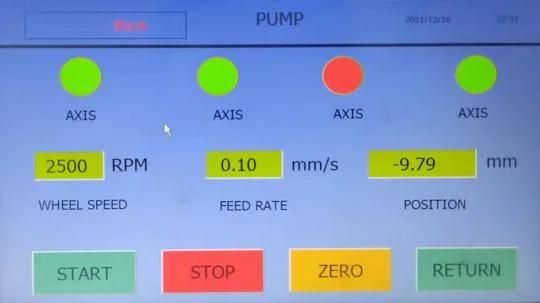

Convenient English Control Panels , auto working , touch screen panel design, with alarm function.

6. Operation instructions and precautions

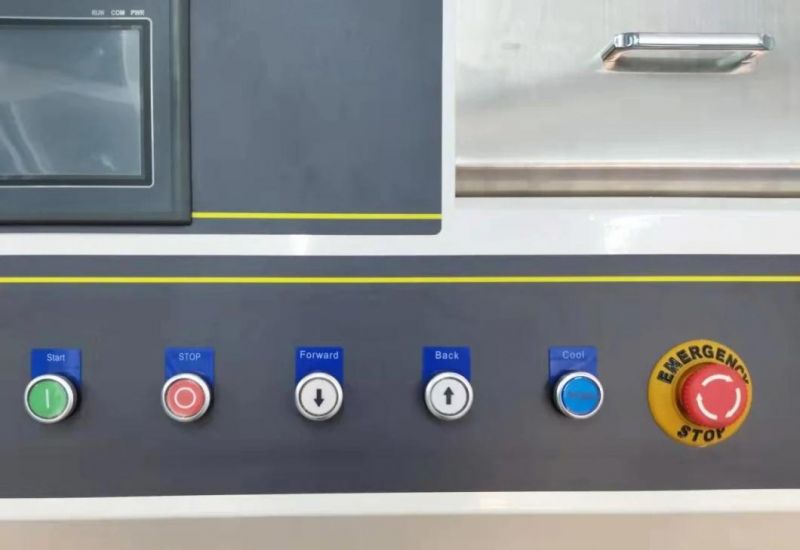

6.1 This machine can complete automatic cutting. Please set the appropriate parameters according to the material to be cut before cutting. The start, stop and buttons of the external panel are the same as the start and stop buttons on the touch screen. You can choose either the touch screen operation or the external button operation.
6.2 Be sure to close the warehouse door before starting. If it is not closed, the system prompts that the warehouse door has been opened. Please close the warehouse door. During the cutting process, if the door is opened, the machine will stop cutting. To continue cutting, close the door and press the start button. For safety reasons, it is recommended not to open the door during machine cutting.
6.3 After the cutting is completed, the machine will automatically retract the knife and display the prompt message 'cutting completed'. If the stop button is pressed during the cutting process, the machine will enter the retracting state and a message will prompt 'stop and exit'. To ensure safety, do not open the door during the retraction process.
6.4 If you need to replace the saw blade, please press the emergency stop button or turn off the main power switch and wait for a while. After the replacement, release the emergency stop or turn on the main power supply.
6.5 If the machine is overloaded or the saw blade is clamped during the cutting process, the system will prompt an alarm, the display screen will alarm and prompt the spindle overload or spindle hardware alarm. At this time, wait for a while and the system will return to normal and stop the alarm, and then turn it on again. Check the cause of overload on the warehouse door.
6.6 The system appears: cutting the workpiece continuously, abnormal noise or overload or clamp saw alarm may be caused by the following reasons:
(1) The cutting saw blade is not suitable for this cutting material, and the cutting saw blade should be replaced at this time.
(2) The cutting speed is too fast. At this time, the cutting speed should be reduced or the "impact cutting" mode should be selected.
(3) This kind of cutting material is not suitable for this cutting machine.


7. Maintenance and maintenance

7.1 After cutting, clean the cutting room in time to keep the room clean and free of debris, which can reduce machine failures.
7.2 Please do not hit the display with sharp objects, which will damage the display.
7.3 Please do not arbitrarily change electrical circuits and procedures, which may cause injury.

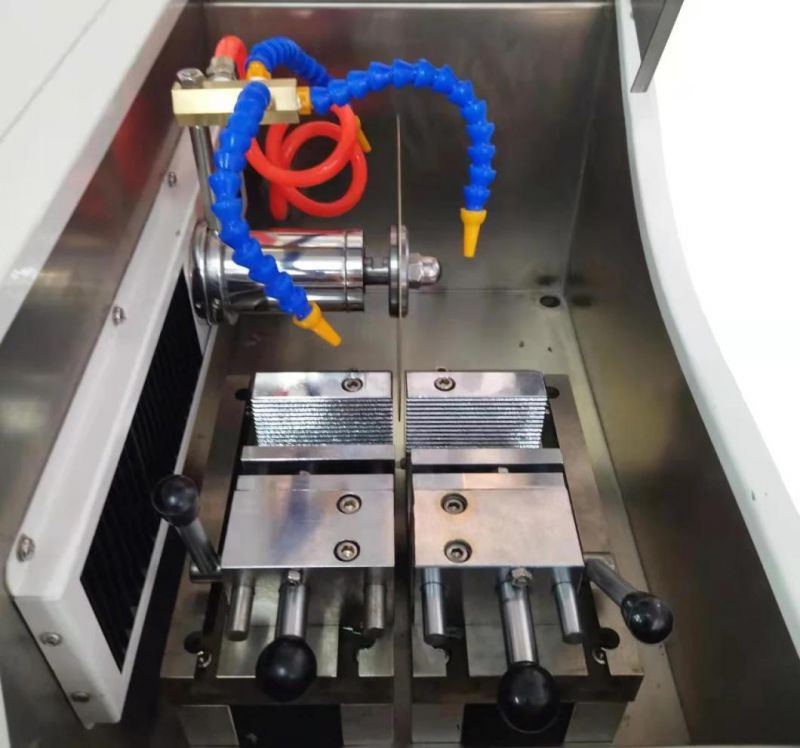

7.4 It is recommended that the clamping device be cleaned and lubricated weekly. Improve service life.
7.5 Check the water level of the cutting fluid at least once a week and maintain the proper water level. Change the cutting fluid every two weeks.
7.6 It is recommended to regularly lubricate and maintain the equipment once a week.
7.7 Storage of Resin Cutting Discs (Optional): These cutting discs are sensitive to moisture. Therefore, do not mix wet cutting discs with new, dry cutting discs. Store cut sheets in a dry place, level on a support surface.
