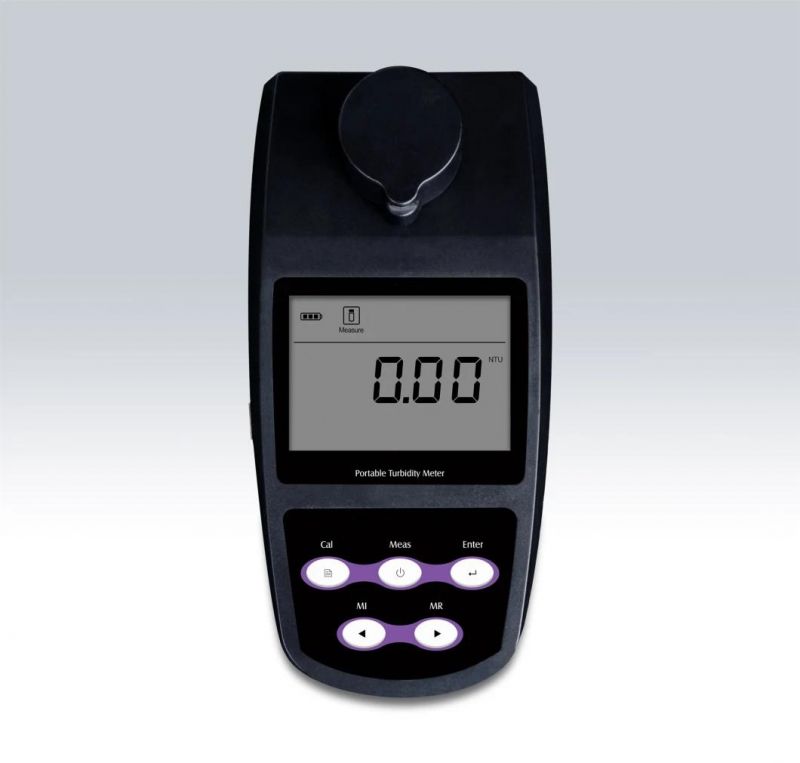

Digital Smart Portable Turbidimeter Range 0-1100ntu
Shanghai Lianhua Industrial Co., Ltd.- After-sales Service：on-Line Support
- Warranty：One Year
- Application：Water Turbidity Testing
- Detect Time：10 Second
- Measurement Range：0 to 1100 Ntu
- Accuracy：3%
Base Info
- Model NO.：100
- Transport Package：Express, Carton
- Specification：180(L)× 85(W)× 70(H)mm
- Trademark：Lianhua or no logo
- Origin：China
- HS Code：9031809090
- Production Capacity：50000 Units , Year
Description
1 >Product Introduction
High-performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use.
Applications:
• Drinking water and swimming pool
• Environmental monitoring and other applications
2 >Functional characteristics
• High-performance portable turbidity meter meets the design criteria in ISO 7027.
• 2 to 5 points calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• Single measurement mode automatically senses and locks a stable reading.
• Continuous measurement mode can be used for indexing or matching the sample vials.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, resolution, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 100 data sets.
• USB communication interface for data transfer or connecting a power adapter to meter.
3 >Technical Parameters
| Range | 0 to 1100 NTU, 0 to 275 EBC, 0 to 9999 ASBC |
| Resolution | 0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 1100 NTU) |
| Accuracy | ±2% of reading (0~500 NTU), ±3% of reading (501~1100 NTU) |
| Calibration Points | 2 to 5 points |
| Calibration Standards | 0.02, 10, 200, 500, 1000 NTU |
| Light Source | Infrared-emitting diode (850nm wavelength) |
| Detector | Silicon photodiode |
| Stray Light | <0.02 NTU |

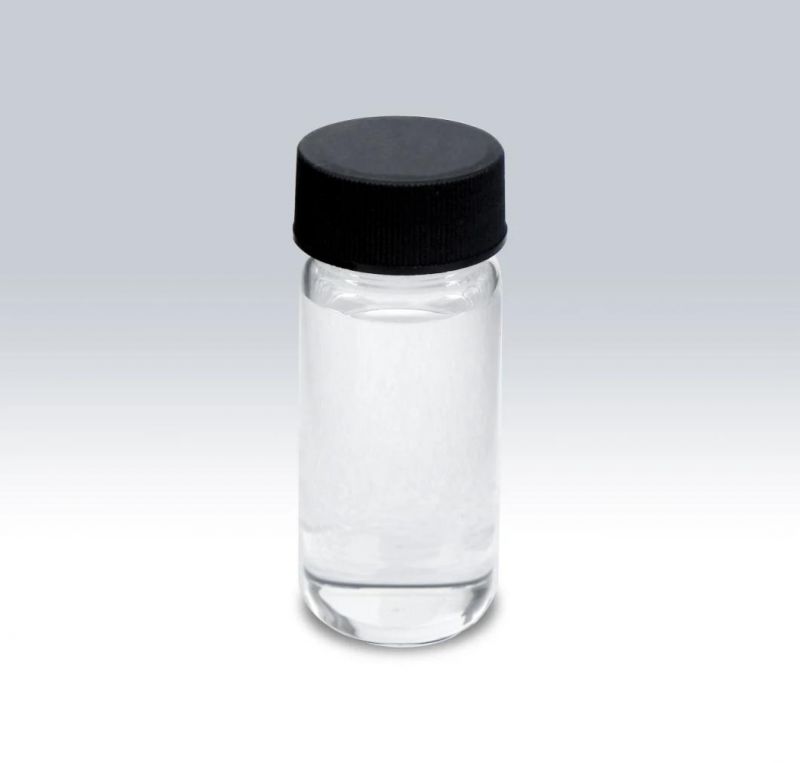

| Sample Volume | 30ml |
| Memory | Stores up to 100 data sets |
| Output | USB communication interface |
| Display | Custom LCD (60×40 mm) |
| Power | 3×1.5V AA batteries or DC5V power adapter |
| Auto-Power Off | 15 minutes after last key pressed |
| Dimensions | 180(L)×85(W)×70(H)mm |
| Weight | 300g |
