• Model NO.：MP-2
• Performance：Semi-automatic
• Power Supply：220V
• Weight：50-100kg
• Certification：CE, UL
• Customized：Customized
• Function：Polishing Grinding
• Use Life：8-10 Year
• Manual Book：in The Package
• Power：220V
• Customized Support：OEM
• Place of Origin：Shandong, China
• Grinding Disc Diameter：200mm(230mm Optional)
• Polishing Disc Diameter：200mm
• Grinding Disc Rotating Speed：50-1000rpm(Stepless Speed)
• Grinding Head Rotating Speed：0-100rpm
• Sample Preparation Time：0-9999 S
• Motor：550W
• Application：Metal Specimen
• Name：Double Discs Metallurgical Specimen Grinding and P
• Turnover Value：≤2%
• Transport Package：Plywood Case
• Specification：5580x480x480
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• HS Code：8460402000
• Production Capacity：5000set Per Year

Basic Info.

Model NO. MP-2 Performance Semi-automatic Power Supply 220V Weight 50-100kg Certification CE, UL Customized Customized Function Polishing Grinding Use Life 8-10 Year Manual Book in The Package Power 220V Customized Support OEM Place of Origin Shandong, China Grinding Disc Diameter 200mm(230mm Optional) Polishing Disc Diameter 200mm Grinding Disc Rotating Speed 50-1000rpm(Stepless Speed) Grinding Head Rotating Speed 0-100rpm Sample Preparation Time 0-9999 S Motor 550W Application Metal Specimen Name Double Discs Metallurgical Specimen Grinding and P Turnover Value ≤2% Transport Package Plywood Case Specification 5580x480x480 Trademark CHENJI or OEM Origin China Jinan or Others HS Code 8460402000 Production Capacity 5000set Per Year

Product Description

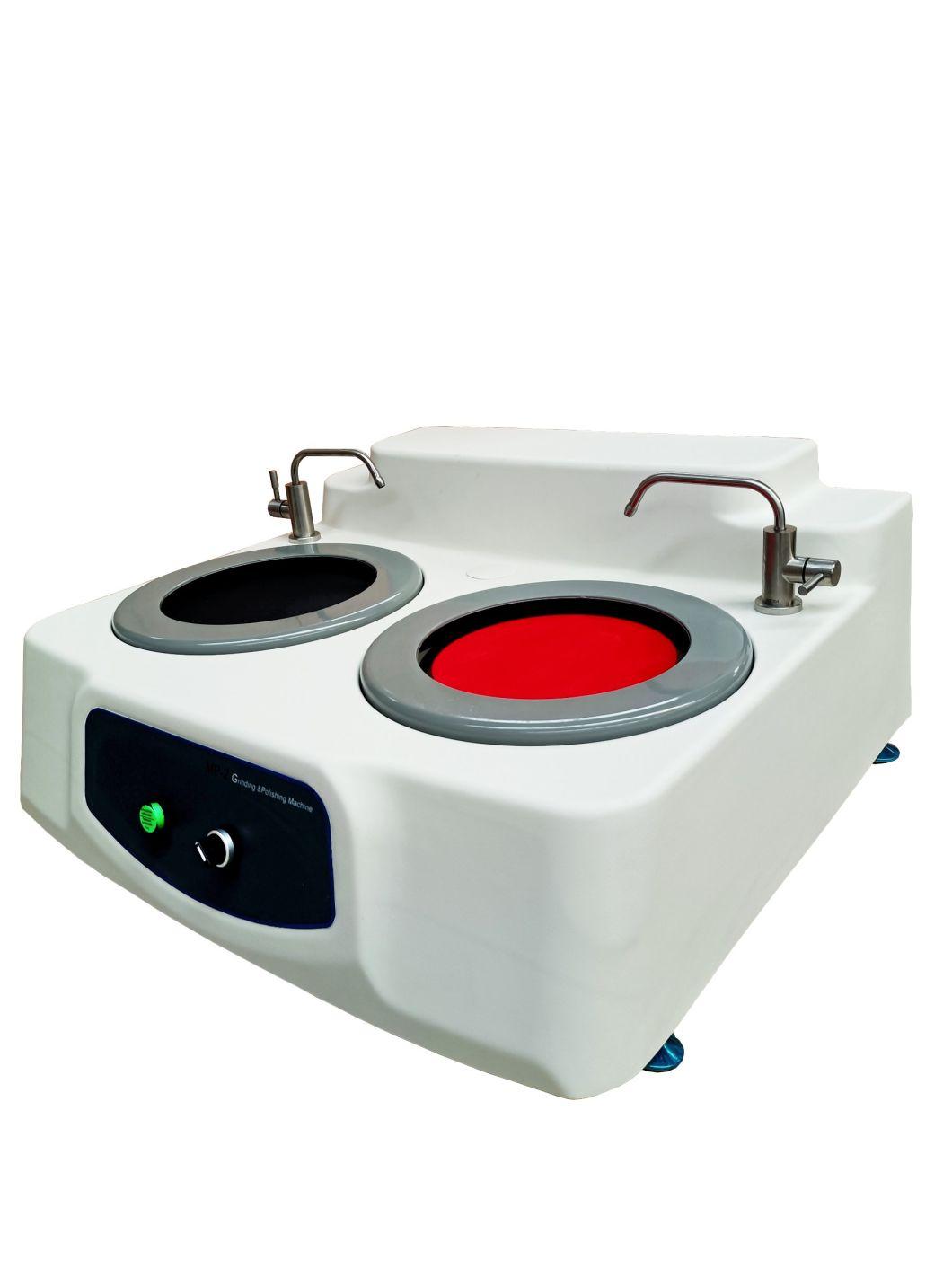

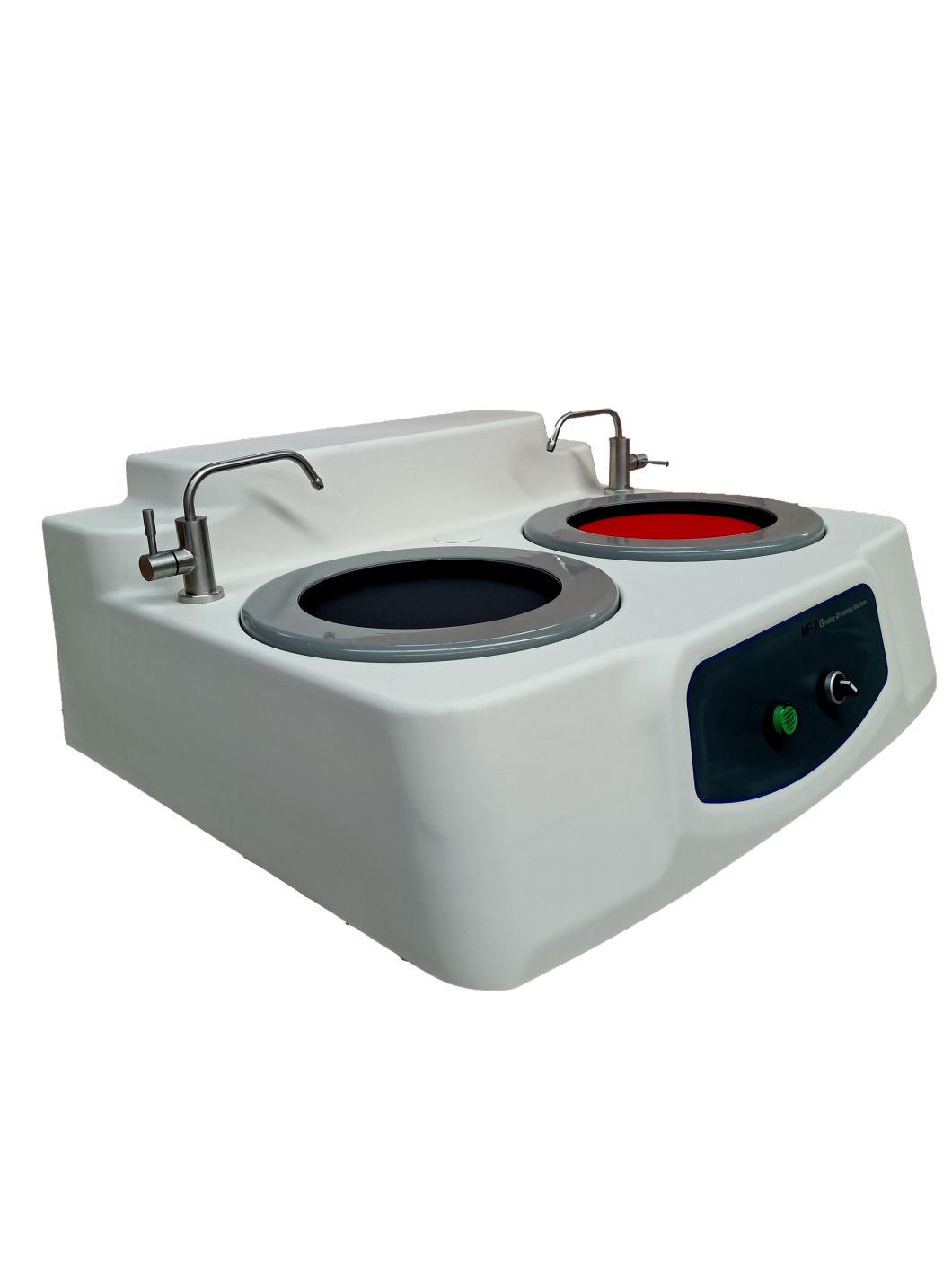

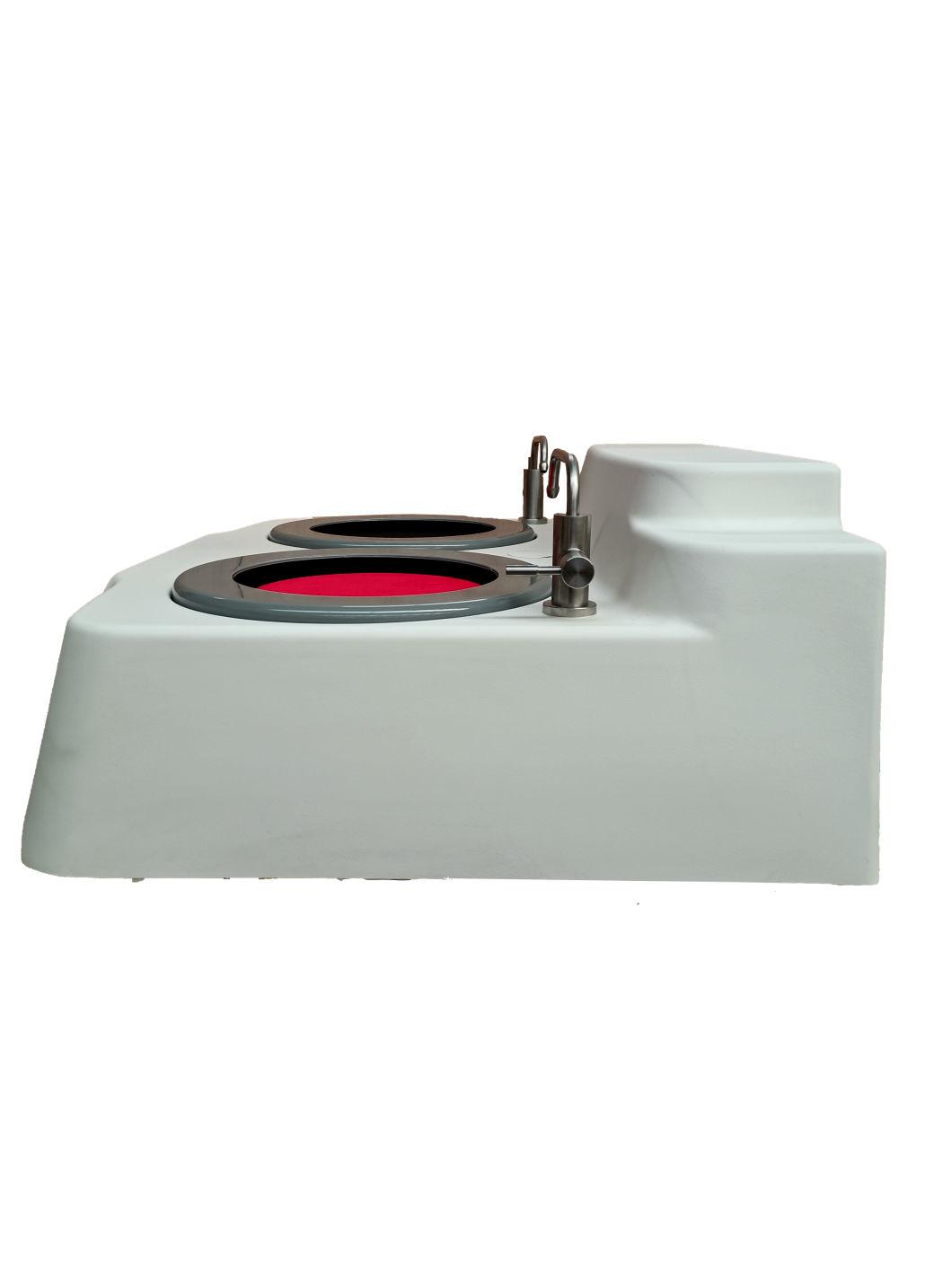

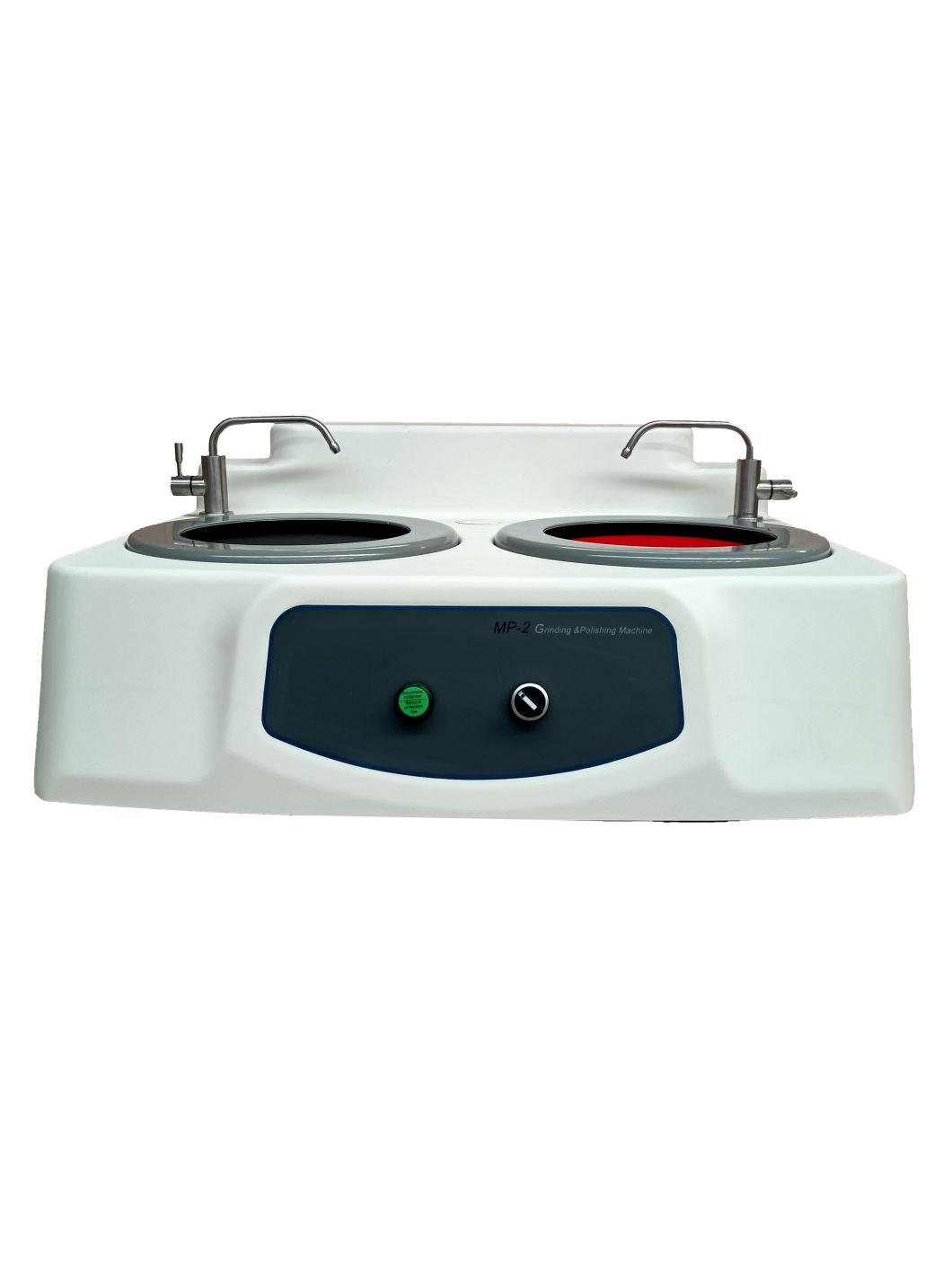

MP-2 Metallographic Sample Grinding and Polishing Machine
Introduction
This grinding and polishing machine is suitable for pre-grinding, grinding and polishing metallographic samples. It is an indispensable equipment for users to make metallographic samples. This machine is equipped with a cooling device, which can cool the sample during pre-grinding to prevent damage to the metallographic structure due to overheating of the sample. The left disc of the machine is a grinding disc, and the right disc is a polishing disc, which can be operated by two people at the same time, which is convenient, stable and reliable.


Technical Data

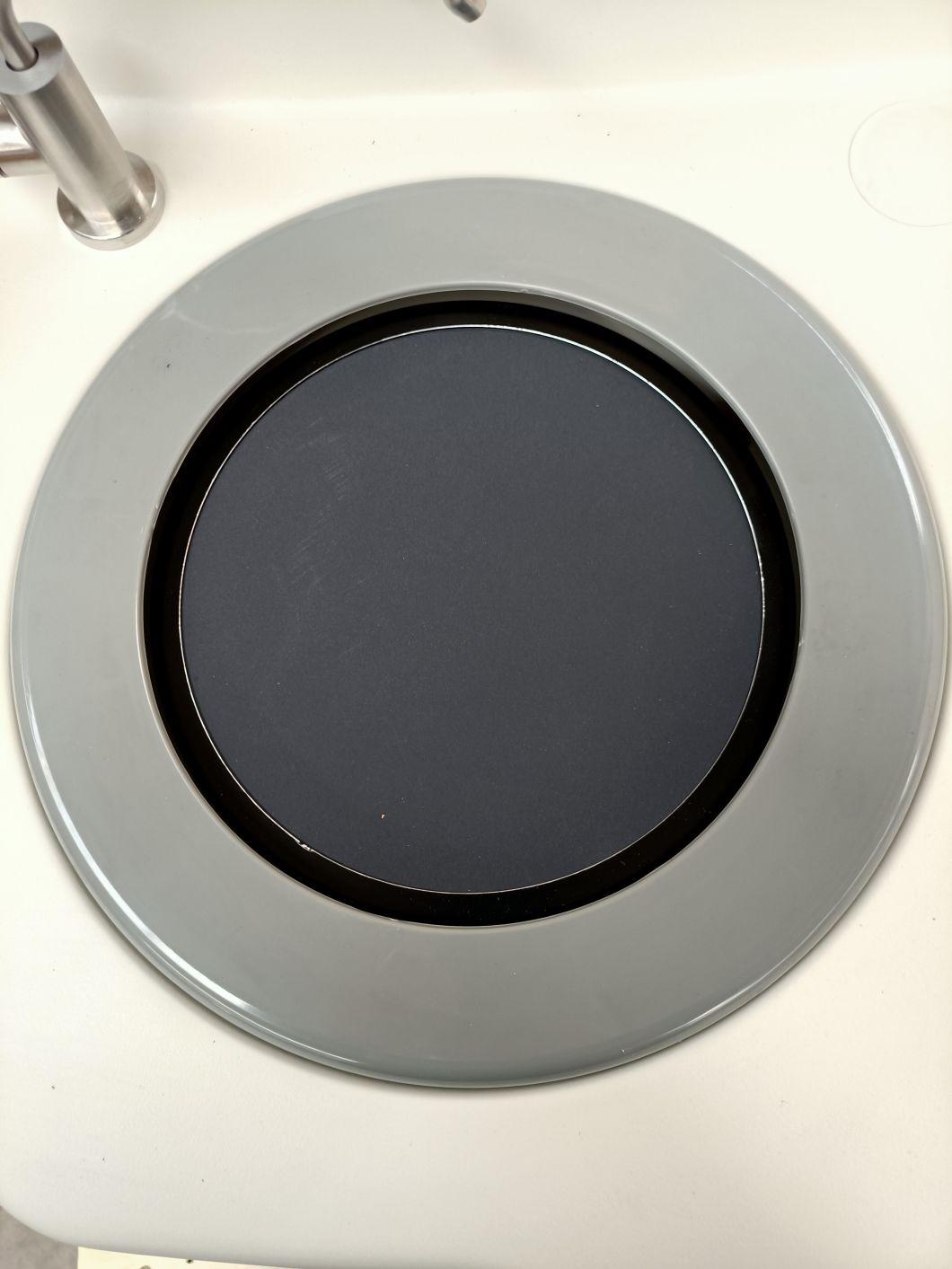

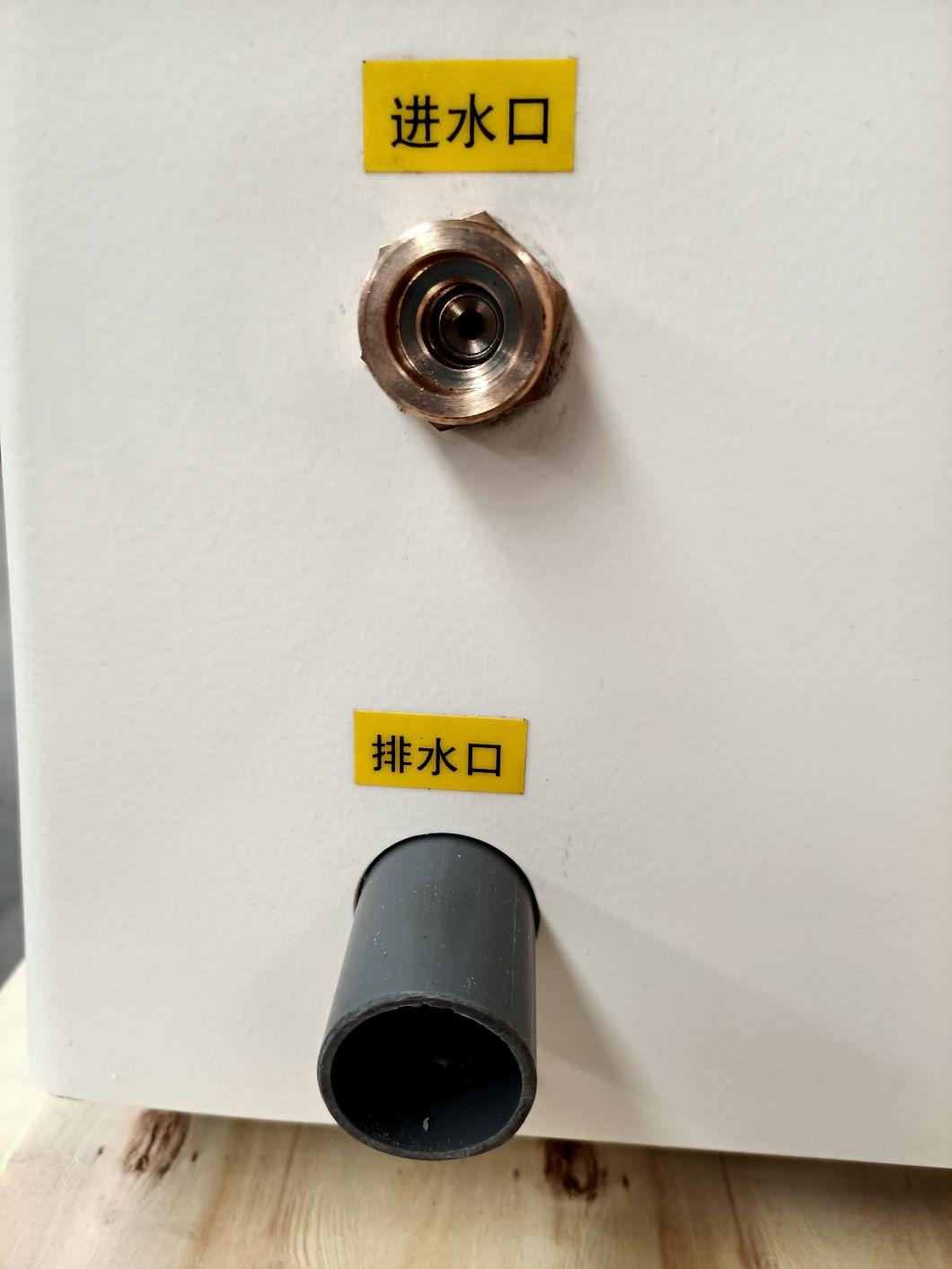

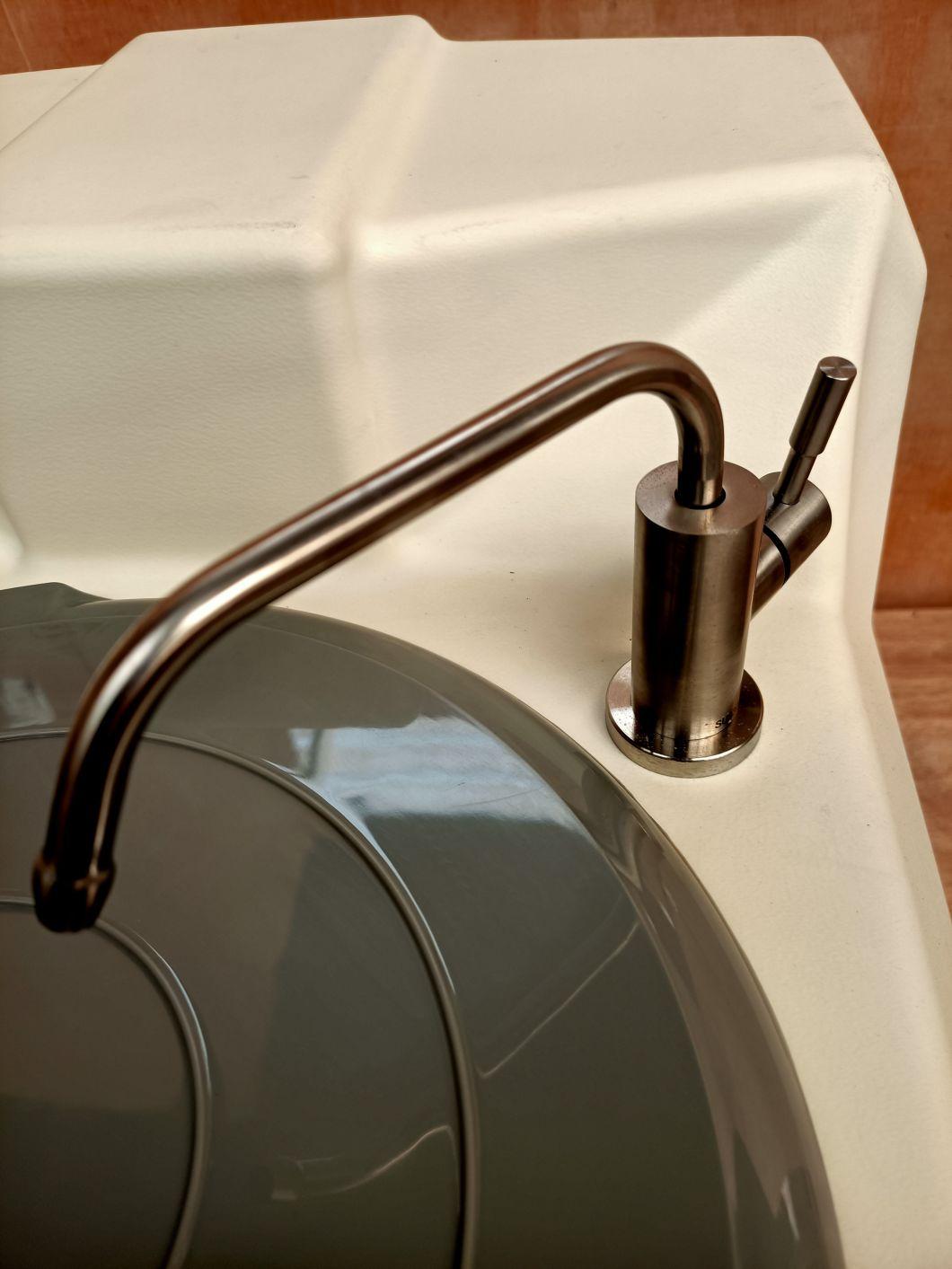

The left disc of the machine is a pre-grinding disc, and the right disc is a polishing disc. During pre-grinding, cooling water is continuously injected into the rotating grinding disc through the rotary water nozzle, and the sandpaper can be tightly attached to the grinding disc under the action of atmospheric pressure, so that the sandpaper does not need to be bonded or clamped. When polishing, the polishing fabric can be spread flat on the polishing disc, and then the fabric is fastened with the buckle, and then polished. The fabric and the polishing disc can be replaced in time and conveniently.



Model	MP-2 Metallographic Sample Grinding and Polishing Machine
Grinding disc	Standard ф230mm/Optional ф203mm; Speed: 450r/min
Polishing disc	Standard ф230mm/Optional ф203mm; Speed: 600r/min
Operating Voltage	220V/50Hz
Electric machine	YCG8024, 370W
Dimensions	750mm×700mm×300mm
weight	40kg
