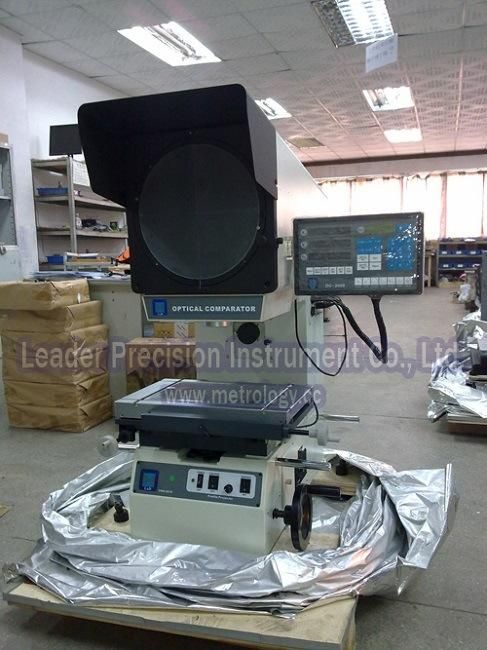

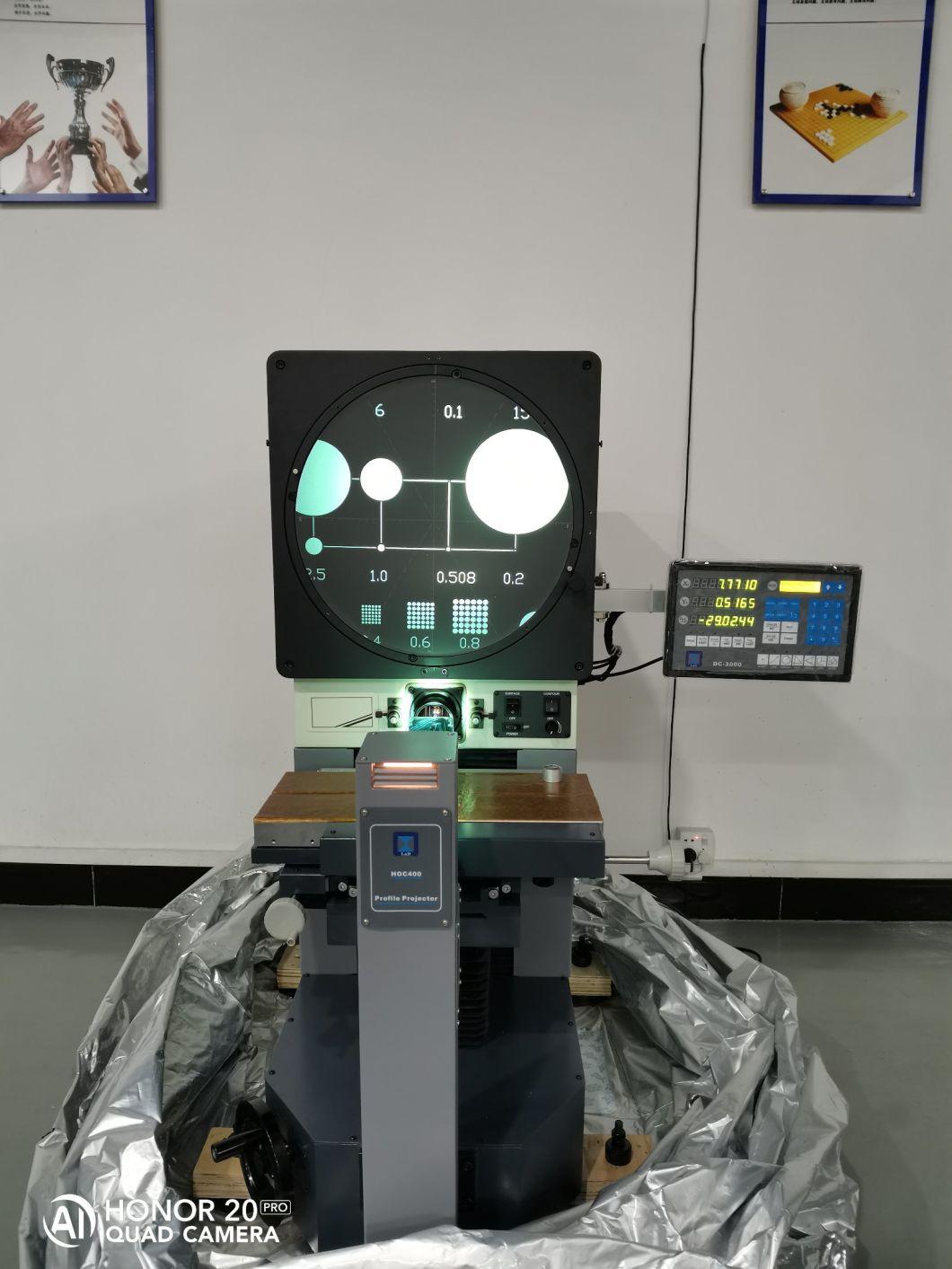

• Model NO.：VOM-2515
• Stage Travel Z-Axis：100mm(for Focus)
• Accuracy：≤ ± (3+L,75)µ M
• Screen Diameter：312mmwith 4 Film Clips
• Screen Rotary Range：0° -360°
• Transport Package：Standard Exporting Package
• Specification：SGS
• Trademark：Leader
• Origin：Guangdong
• HS Code：9031491000
• Production Capacity：500 PCS,Year

Technical DataReverseVOM-1510VOM-1020VOM-2515Metal table' s size(mm)357*228404*228450*280Glass table' s size(mm)210*160260*160306*196Stage Travel X-axis150mm200mm250mmStage Travel Y-axis100mm100mm150mmStage Travel Z-axis100mm(for focus)100mm(for focus)100mm(for focus)Accuracy≤ ± (3+L/75)µ m≤ ± (3+L/75)µ m≤ ± (3+L/75)µ mScreenScreen Diameter: 312mmwith 4 film clipsScreen rotary range: 0° -360°Rotary angle resolution: 1' or 0.01°Digital ReadoutMC800 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance).IlluminationTransmission and reflection: 24V/150w-halogen lamp.PowerAC110-120v, 200-240v, single phase 50/60Hz Total power 400WCoolingFansG. W/N. W210/160KG210/160KG250/180KGDimension(L*W*H mm)780*780*1100780*780*1100810*780*1120 Standard DeliveryDigital Readout MC800VOM-10X ObjectiveScreen ClampFoot-SwitchPower Cable  Light source Optional DeliveryMeasuring SoftwareEdge DetectorCharts (3 kinds)VOM-20X ObjectiveVOM-50X ObjectiveVOM-100X ObjectiveHolder ClampV-shape Clampswivel center supportMini-printerRotary tableCalibration Scale  Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

5. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!

After-sale Service

1. Free professional operation training

2. Warranty: 18 months instead of 12 months

3. Regularly upgrade of software is available free

4. Available lifetime technical support
