• Model NO.：SUP-TDS210-B
• Transport Package：Standard Package
• Specification：1KG
• Trademark：SUPMEA
• Origin：Hangzhou Zhejiang China
• HS Code：9026809000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. SUP-TDS210-B Transport Package Standard Package Specification 1KG Trademark SUPMEA Origin Hangzhou Zhejiang China HS Code 9026809000 Production Capacity 10000PCS/Month

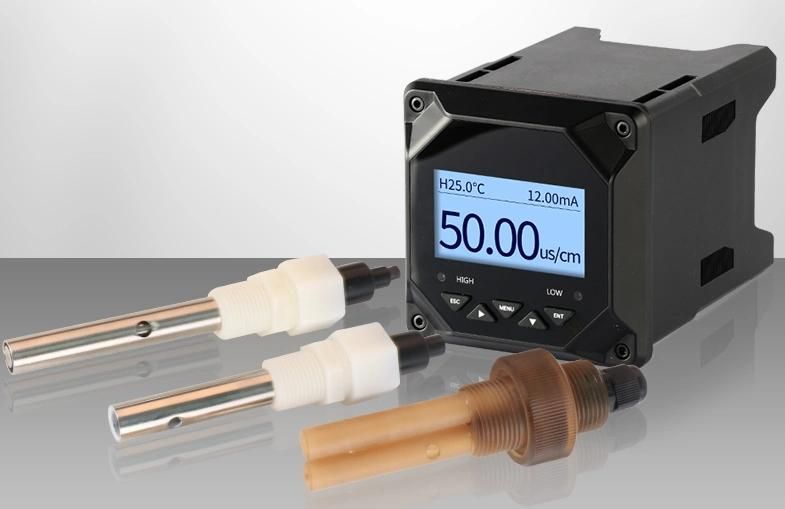

Product Description

Conductivity meter widely used in pharmaceutical, food, beverage, chemical, paper, industrial coating, municipal,
environmental protection and other small water treatment units.if you need to measure high conductivity, a larger
constant electrode is commonly?used. If the conductivity is over 10000 uS/cm, the electrode with constant of?
10 cm-1 is used

Product parameters:

Screen size	2.8 inch

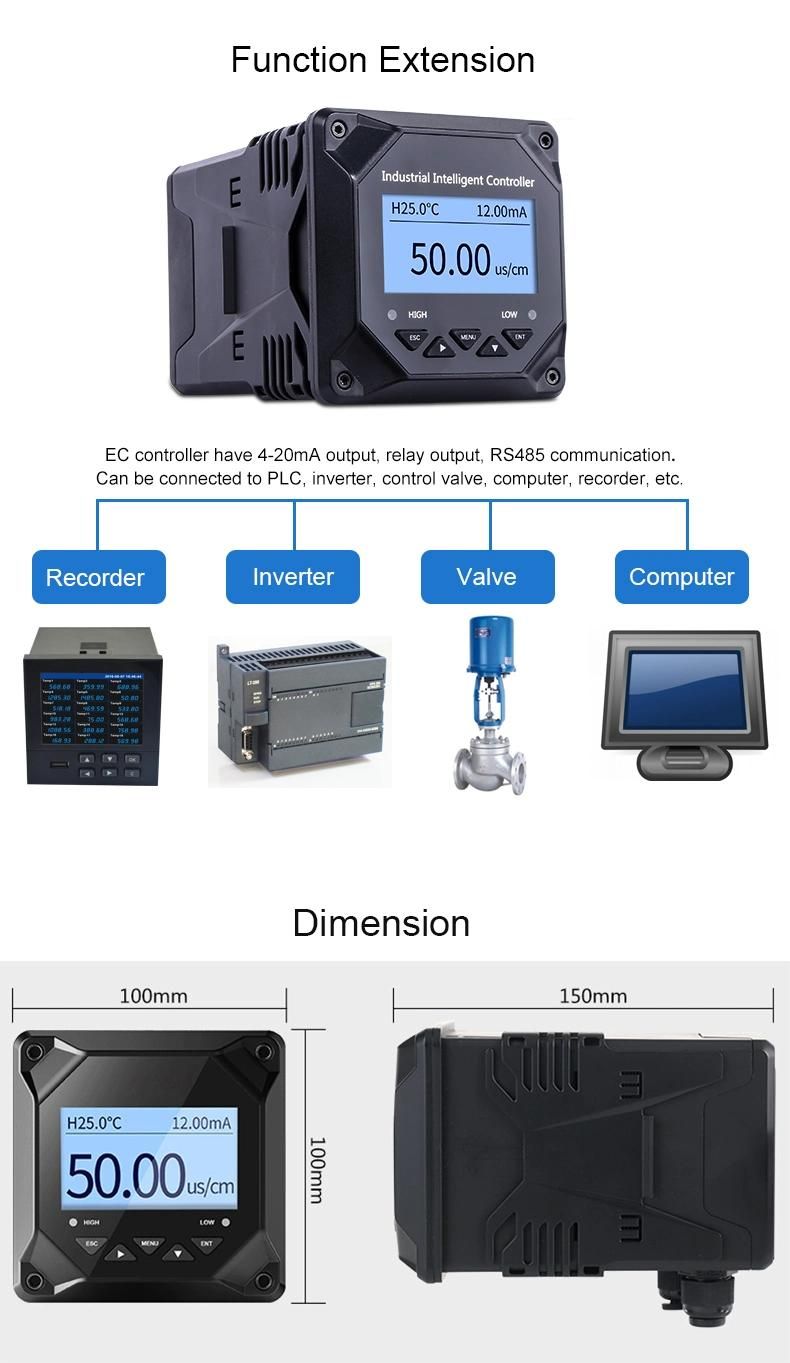

Dimension	Overall dimension: 100mm*100mm*150mm(H*W*D) Cutout dimension:92.5mm*92.5mm(H*W)
Weight	0.65Kg
Ingress protection	IP54
Measure variables	EC/TDS/Resistivity

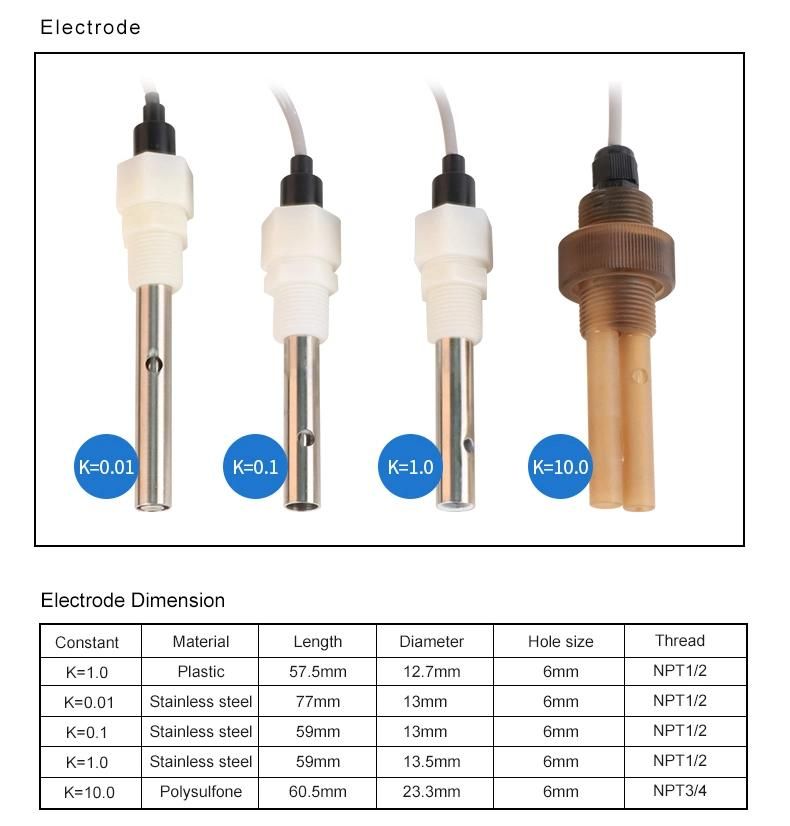

Measure range	0.01 electrode:0.02~20.00μS/cm 0.1 electrode:0.20~200.0μS/cm 1.0 electrode:2.00~2000μS/cm 10.0 electrode:0.02~20.00mS/cm Measure range for extended range controller: 0.01 electrode:0.20~200.0μS/cm 0.1 electrode:2.00~2000μS/cm 0.1 electrode:0.02~20.0mS/cm 10.0 electrode:0.20~200.0mS/cm Temperature range:-10~130ºC
Temperature compensation	NTC10K/PT1000 Temperature compensation:manual/automatic
Accuracy	EC/TDS/Resistivity: ±1%FS NTC10K:(-10~5ºC)±2ºC;(5~60ºC)±0.2ºC;(60~130ºC)±2ºC PT1000:(-10~5ºC)±2ºC;(5~130ºC)±0.2ºC
Output	4~20mA output maximum loop is 750Ω,±0.2%FS
Communication protocol	MODBUS-RTU RS485
Alarm relay	Pickup/Breakaway   AC250V/3A
Relative humidity	10~85%RH(No condensation)
Operating temperature	0~60ºC
Power supply	220VAC±10%  50Hz/60Hz
Storage conditions	Temperature:-15~65ºC Relative humidity:5~95%RH(No condensation)

Delivery process:

1.Use customer's own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)

2.Delivery time is 5-7 working days, some products have stock in Malaysia.

3.Help to do the destination customs clearance

Overseas Service Center Address:

Singapore/ Philippines/ Malaysia/ Kroea/ Indonesia/ Germany/ India



FAQ:

Q: How long will you give me the reply?
A: we will contact you in 3 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory,Our factory and office are all in Hangzhou,Zhejiang.

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before
shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance.

Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.
For some products we have it in stock.

Q: Could you provide me the shortest lead time?
A: For somre standard products we have it in stock . Pls tell me your detailed requirements,
we will send to you as early as we can.
