• Model NO.：TP-2100
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TP-2100 Trademark TOP Origin China HS Code 9027809900 Production Capacity 200 Sets/Month

Product Description

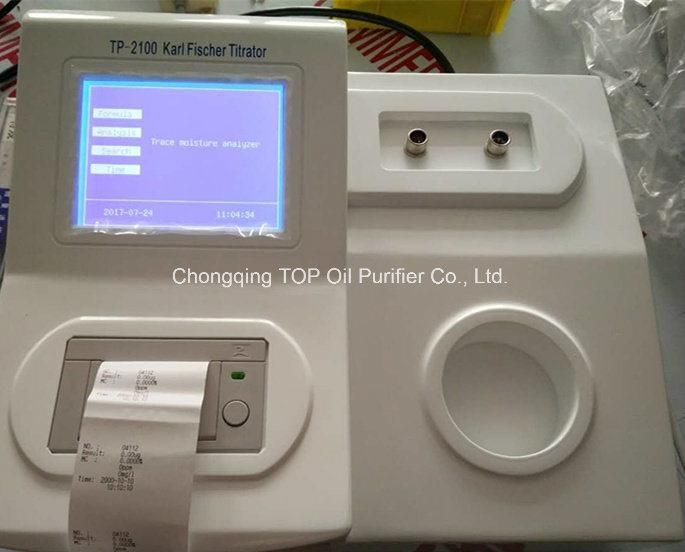

TP-2100 Karl Fischer Coulometric Method Oil moisture content tester


Product Application

The Determinator adopts the global recognized classical moisture testing method-Karl Fischer Coulometric Method. This method is the most concentrated and accurate method, with advantages of high accuracy and low cost. As a universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been  widely used in institutions and enterprises  of  petroleum   ,chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.Whole testing process is automatically controlled by the determinator itself, during which auto stirring and analyzing  would be finished within  60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.



Technical Parameter

Liquid	Chemical Industry:alcohols, ethers, esters, alkenes, benzenes, amines, organic solvents, phenols and other organic products applicable to Karl Fischer Method for determination Petroleum and Power Industry:Insulation Oil, Transformer Oil, Turbine Oil, etc. Pharmaceutical Industry :medicine materials Pesticide Field:emulsifier Other Industry:electrolyte of lithium battery
Solid	Various mineral salt, citric acid, explosives, paraffin and other solids with good solubility
Gas	Natural gas, liquefied gas, Freon, butadiene, chloromethane, etc.



Method of Display	7 inch color touch LCD with English display
Method of Testing	MPU controlled electrolysis(Karl Fischer Coulometric Method)
Rate of Electrolysis	2.4mgH2O/min
Electrolysis Current	Auto-control within 430Ma
Testing Range	0.01ugH2O-200mgH2O
Water Content Range	0.0001%(1ppm)-100%
Sensitivity	0.01ugH2O
Accuracy	Water Content: 2ugH2O-100ugH2O; Deviations≤±1ug, Water Content: 100ugH2O-1000ugH2O; Deviations≤±2.9ug, Water Content: >1000ugH2O; Deviations≤±0.2%(excluding deviations of sample injection)
Drift Compensation	Auto-control via MPU
Stirring Speed	Adjustable and steerable
End-point Indication	LCD display /output via printing / voice warning / end-point indication light
Data Input	Input via touch screen
Sample Number	Numbered by users
Storage	Infinite storage capacity
Printer	Thermal printer, high-speed, low-consumption, with 44 millimeter-wide paper
Printing Content	ug / ppm / mg/L / sample number /experimenter / date
Calendar/Clock	automatic display and print analyzing time and date
Self-checking	Breakdown self-checking
Special Function	Work independently or connected with laptop or other computers
Power Consumption	<40W
Dimension	390×270×190mm
Working Environment	Temperature: 5ºC-40ºC,Humidity: <85%
Power Supply	AC220V±10% 50HZ±2.5HZ
Weight	About 7kg

1. Equipped with powerful Itanium and double CPU; advantages of direct A/D conversion of testing electrode data.
2. Equipped with 7 inch color touch LCD screen. The determinator has  function of reagent failure prompt,  convenient to  extend service time of reagent.
3. Completely closed titration system avoids direct touch between people and agent as well as influence of environmental humidity.
4. Outer shell is made of high-quality cold-rolled steel plate with electrostatic sprayed surface, anti-corrosion and easy to clean.
5. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
6. Auto-control electrolysis current within 430mA ensures high sensitivity and fast analyzing speed.
7. Preinstalled with cubature (including 3 pieces of formula), statistical calculation (including average calculation, standard deviation calculation and rate of change calculation) and elementary arithmetic, with the advantages of auto-analysis and calculation.
8. Determinator automatically tests sample, analyzes and displays results and calculates the average value of several times of test.
9. Infinite capacity of results storage is convenient to consult history testing data whenever necessary.
10. Automatically calculate and print below content: ug / ppm  / percentage / mg/L / sample number / experimenter / testing date
11. Network management is available via connection with laptop and microcomputer communications through USB or RS232 interface.
12. Operation via Multilanguage display is available. Determinator programs can be upgraded if accordingly if related national standard is revised.




Our Services
Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs  is customers' best  choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for TOP Products.
Protection of your sales area, ideas of design and all your private information.


FAQ
Q: why is it important to have purified oil in a transformer?
A: Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer. Likewise, water contamination at levels as low as 30 ppm (parts per
million) can adversely affect the insulating strength of the oil. With ever-increasing standards for energy efficiency of power distribution transformers, the need to effectively degas will become even more
important in the future.

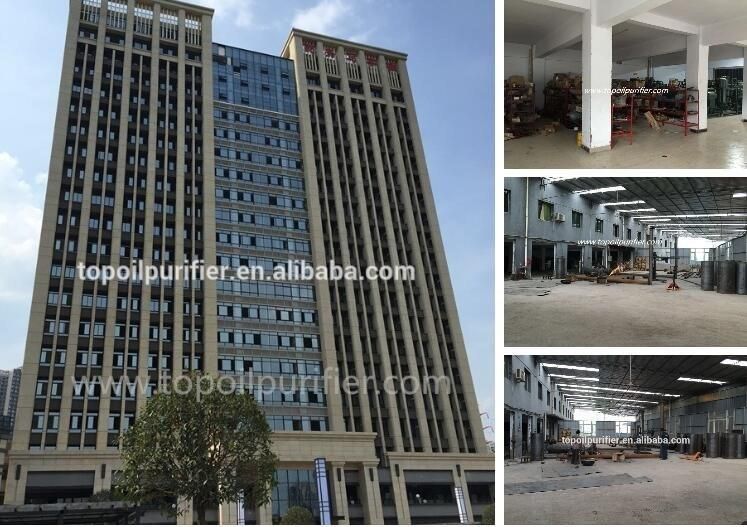

Company Information
