• Model NO.：IIJ-603
• Origin：China
• HS Code：9027809900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. IIJ-603 Origin China HS Code 9027809900 Production Capacity 200 Sets/Month

Product Description

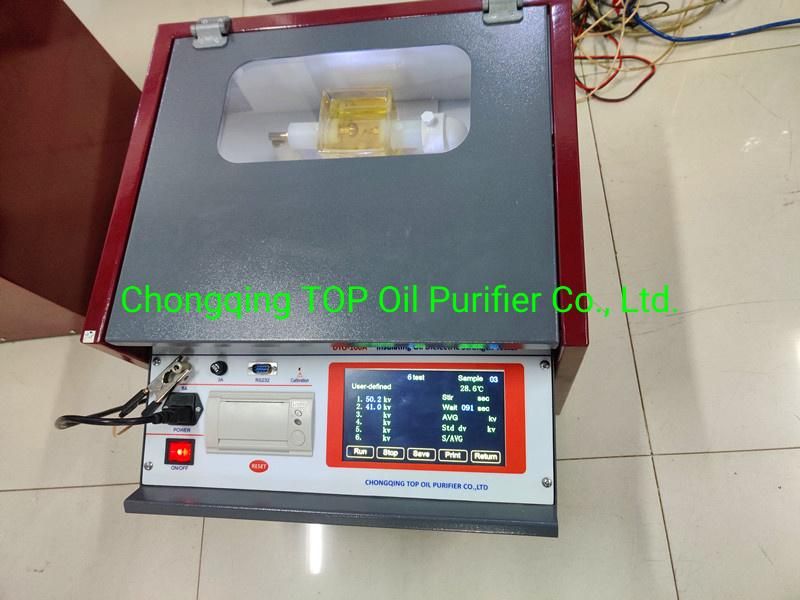

Insulating Oil Dielectric Strength test equipment

Product Application
1. The instrument is of single cup portable design;
2. 5.4 inches LCD screen, English menu easy to man-machine dialogue,  with  functions  of temperature  and  humidity measurements, and clock display;
3. Simple operation, auto-complete boost,  maintain,  stir and let stand, computing,  data storage  and  printout  and other operations;
4. It can store data when the power is cut, automatically save the test results;
5. Over voltage, over current, limit and grounding alarm functions to protect the safety of operating personnel;
6. Unique waveform tuning function, eliminate harmonic waves' interference for accurate determination;
7. Use PLC and CPU dual control, guarantee instrument work stable and reliable:
8. The instrument controlled by large-capacity single-chip, stable and reliable;
9. Instruments offers a wide range of watchdog circuit, eliminate the phenomenon of death;


Technical Parameter


Output voltage	0~80kV(can be set)
Voltage distortion rate	≤2%
Boost rate	2.0kV/S, 2.5kV/S, 3.0kV/S, 3.5kV/S (four gears optional)
Boost capacity	1.5kVA
Accuracy	±(2%+2words)
Power voltage	AC220V±10%
Power frequency	50Hz±2%
Power consumption	≤200W
Temperature	0ºC~45ºC
Humidity	≤85%RH
Dimension	(w)410mm×(h)390mm×(vertical depth)375mm
Net weight	~29kg

Our Major Testing Equipment
1.Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5.Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6.Multi-functional Vibration tester model TYD-2000
7.Consolidation Point Determinator model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11.TAN-DELTA TESTER,10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13.Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17.Transformer turn ratio tester model HYG-II
18.Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20.DC High Voltage Generator model ZGF
21.Underground water/gold detector model TP-UWD
