Industrial pH Meter for Water (PHG-2091)

Shanghai Boqu Instrument Co., Ltd.
  • Type：Water Quality Moisture Meter
  • Analysis Method：Chemical Analysis
  • Display：ExtraLCD
  • Application：Thermal Power Plants, Chemical Fertilizer, Metallu
  • Portable：Non-portable
  • Physical Analysis Type：Weightlessness Method

Base Info

  • Model NO.：PHG-2091
  • Chemical Analysis Type：Karl Fischer Method
  • Operating Mode：Touch Screen
  • Heating Mode：Standard Heating
  • Off Mode：Automatic
  • Measuring Range：0-14pH
  • Overall Dimension：96(Length)X96(Width)X110(Depth)Mm
  • Dimension of The Hole：92X92mm
  • Transport Package：Carton Box
  • Specification：SGS, CE, ISO9001
  • Trademark：BOQU
  • Origin：Shanghai
  • HS Code：9027809900
  • Production Capacity：1000piece,Month

Description

1. Measuring range: 0~14.00pH, Resolution: 0.01pH2. Precision: 0.05pH, ± 0.3ºC3. Stability: ≤ 0.05pH/24h4. Automatic temperature compensation: 0~100 ºC(pH)5. Manual temperature compensation: 0~80 ºC(pH)6. Output signal: 4-20mA isolated protection output, dual current output7. Communication interface: RS485(optional)8. Output control mode: ON/OFF relay output contacts9. Relay load: Maximum 240V 5A; Maximum l l5V 10A10. Relay delay: Adjustable11. Current output load: Max. 750Ω12. Insulation resistance: ≥ 20M13. Working voltage: 220V± 20V, 50Hz± 0.5Hz14. Overall dimension: 96(length)X96(width)X110(depth)mm
Dimension of the hole: 92X92mm15. Weight: 0.6kg16. Working condition: Ambient temperature: 0~60 ºC, Air relative humidity: ≤ 90%
Except for the earth magnetic field, there is no interference of other strong magnetic field around.
Standard configuration
One secondary meter, the mounting sheath of immerged (selection), one pH electrode, three packs of
standard buffer solution (for pH4.00, 6.86 and 9.18 respectively).

Ordering guide:
1. To inform whether the electrode provided is a dual or ternary complex.
2. To inform the length of the electrode cable (default as 5m).
3. To inform the installation mode of the electrode: Flow-through, immerged, flanged or pipe-based

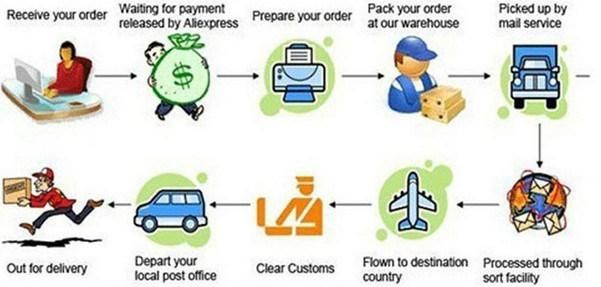

Packing&Delivery
Industrial pH Meter for Water (PHG-2091)
Industrial pH Meter for Water (PHG-2091)

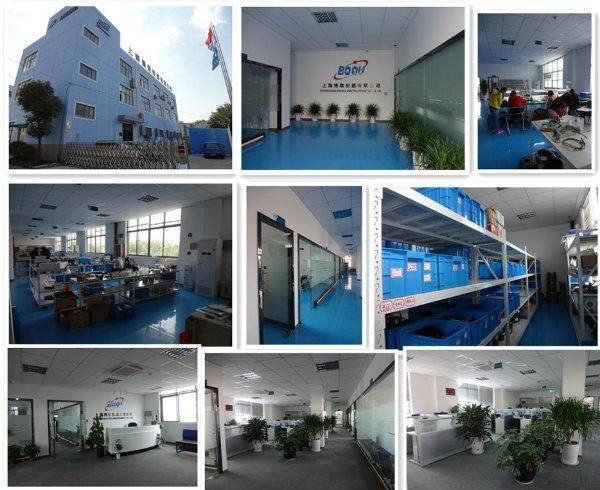

Our Company
