Analysis Instrument

Full Automatic Constantly Temperature Inspection Chamber

Ai Si Li (China) Test Equipment Co., Limited
  • Warranty:One Year Warranty, Lifelong Time Maintainance
  • Type:Temperature and Humidity Test Chamber
  • Analysis Method:Physical Analysis
  • Display:ExtraLCD
  • Application:Instrument, Automobile, Plastic, Metal, Food, Chem
  • Portable:Customized

Base Info

  • Model NO.:TH-1000
  • Physical Analysis Type:Temperature and Humidity Test Chamber
  • Chemical Analysis Type:Toluene Method
  • Operating Mode:Touch Screen
  • Heating Mode:Step Heating
  • Off Mode:Automatic
  • Products Name:Constantly Temperature Inspection Chamber
  • Usage:Temperature & Humidity Testing
  • Material:SUS 304# Stainless Steel and See Cold-Rolled Steel
  • Humidity Range:20%R.H.(Humidity Can Be Customized)
  • Temperature /Humidity:-40 Degree, 20%~98%R.H.
  • Compressor:French Tecumseh Brand,Germany Bizer Brand
  • Power:AC220V 1pH 3 Lines, 50,60Hz , AC380V 3pH 5 Li
  • Service:OEM Service,Design Service
  • Package:Standard Export Wooden Case
  • Transport Package:Standard Export Wooden Case
  • Specification:CE approval
  • Trademark:ASLi
  • Origin:Guangdong China
  • Production Capacity:50000

Description

Basic Info.

Model NO. TH-1000 Physical Analysis Type Temperature and Humidity Test Chamber Chemical Analysis Type Toluene Method Operating Mode Touch Screen Heating Mode Step Heating Off Mode Automatic Products Name Constantly Temperature Inspection Chamber Usage Temperature & Humidity Testing Material SUS 304# Stainless Steel and See Cold-Rolled Steel Humidity Range 20%R.H.(Humidity Can Be Customized) Temperature /Humidity -40 Degree, 20%~98%R.H. Compressor French Tecumseh Brand,Germany Bizer Brand Power AC220V 1pH 3 Lines, 50/60Hz , AC380V 3pH 5 Li Service OEM Service,Design Service Package Standard Export Wooden Case Transport Package Standard Export Wooden Case Specification CE approval Trademark ASLi Origin Guangdong China Production Capacity 50000

Product Description

Full Automatic constant temperature test chambers:

1.Professional Manufacturer
2.Material:SUS#304
3.Customized Size
4, LCD touch screen


Full Automatic constant temperature test chambers application:
Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,
medical and aerospace industries.


Full Automatic constant temperature test chambers feature:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.

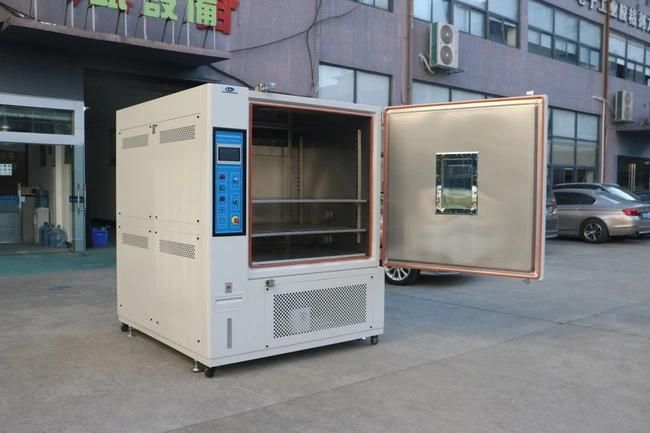

2. Rectangular doubleglassed watching window for the observation of the test
 production during the testing process. The window is equipped with sweatproof
electrical heating device that can prevent water steam from condensing into
droplets, and with high brightness PL fluorescentbulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
 effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment  protecting coolant is used for the whole series (R232,R404)

6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.


Asli Main Products:
 Environmental chamberstemperature (humidity) chamberPCT /Hast chamber (Highly accelerated stress test chamber),ESS chamberWalk in stability chamber,Vacuum oven,Altitude chamber,vibration test systemmechanical shock tester,environmental combined vibration chamber,etc

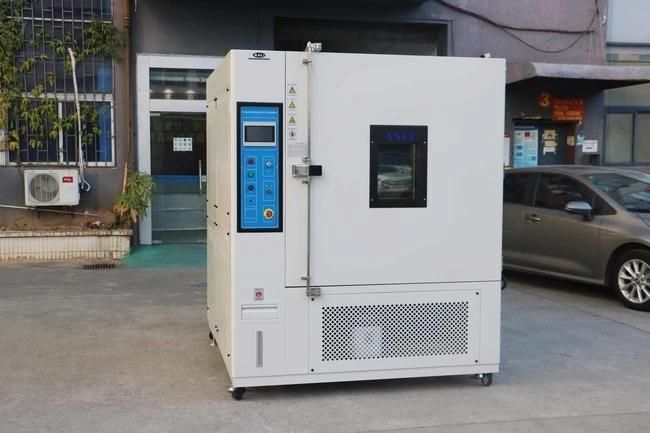

Full Automatic Constantly Temperature Inspection Chamber
Full Automatic Constantly Temperature Inspection Chamber

Model TH-1000
Internal Dimension W1000xH1000xD1000(mm)
Outernal Dimension W1600xH2100xD1450(mm)
Temperature Range Low Temperature: D:-40ºC (Temperature according to customer's requirement)
Humidity Range 30%R.H.(Humidity according to customer's requirement)
 Analytic Accuracy/ Distribution uniformity of temperature and humidity 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of Temperature and Humidity ±0.5ºC; ±2.5% R.H.
Temperature Rising/ falling Speed Rate Temperature rising approx.  0.1~3.0ºC/min / temperature falling approx.   0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºCper minute is a special optional condition)
Temperature /humidity -40 degree, 20%~98%R.H.
Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless  steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high  temperature, high density, formate chlorine, ethyl acetum foam insulation materials
 Cooling System Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC)
 Protection Devices Fuse-free switch, overloading protection switch  for compressor, high and low  voltage coolant protection switch, over-humidity and over-temperature protection  switch, fuses, fault warning system, water short storage warning protection
 Optional Accessories   Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
 Compressor French Tecumseh Brand,Germany Bizer Brand
 Power AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
 Approx. Weight (Kg) 450
