• Model NO.：Bante520-S
• Type：Conductivity Meter
• Conductivity Range：0.01~20.00, 200.0,2000µs,Cm,20.00,200.0ms,Cm
• Temperature Range：0~105°c, 32~221°f
• Transport Package：Export Standard Package
• Trademark：West Tune
• Origin：Shanghai
• HS Code：9031809090
• Production Capacity：50000,Yeas

Basic Info.

Model NO. Bante520-S Type Conductivity Meter Conductivity Range 0.01~20.00, 200.0,2000µs/Cm,20.00,200.0ms/Cm Temperature Range 0~105°c, 32~221°f Transport Package Export Standard Package Trademark West Tune Origin Shanghai HS Code 9031809090 Production Capacity 50000/Yeas

Product Description

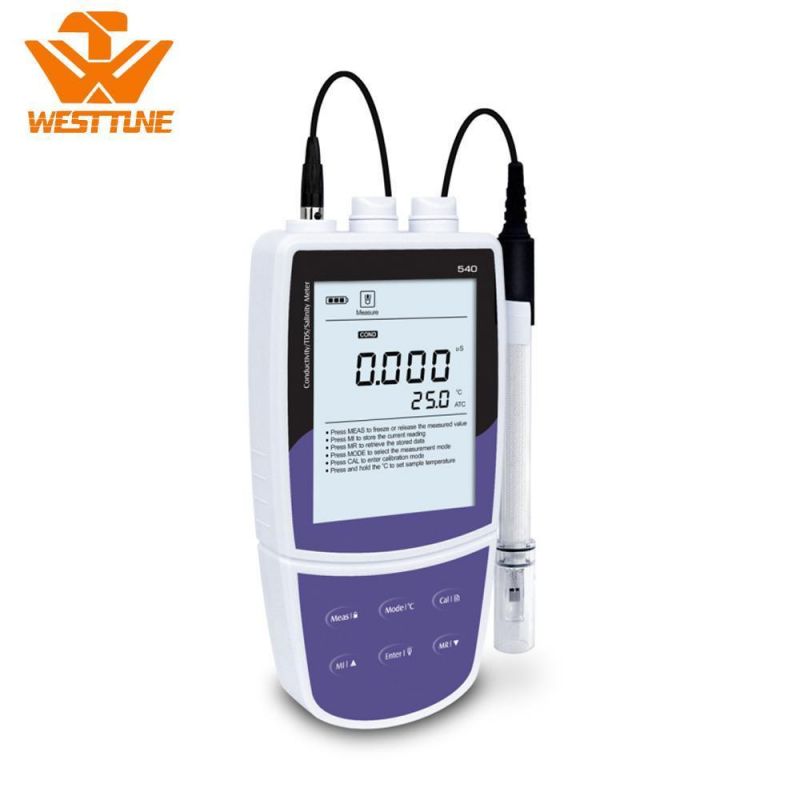

Bante520-S Laboratory Portable Water Conductivity Meter
Product introduction:
Economy portable conductivity meter, 3 point calibration, selectable temperature coefficient and cell constant. The meter is suitable for outdoor applications, accuracy: 0.5% F.S.

Features:
1 to 5 points push-button calibration, automatically recognizes the calibration solutions.
Selectable cell constant (0.1/1/10), normalization temperature (20°C/25°C), TDS factor, linear and pure water compensations, seawater and practical salinity measurement modes.
Automatic Temperature Compensation provides accurate reading over the entire range.
Calibration Due Reminder prompts user to calibrate the meter regularly.
Stability indicator shows when a measurement is recognized as stable.
Auto-Hold feature senses and locks the measurement endpoint.
Calibration report provides the details of the calibration standard and cell constant.
Setup menu allows setting the 11 parameters, including the number of calibration points, stability criteria, temperature unit, auto-power off, etc.
Reset feature automatically resumes all settings back to factory default options.
Expanded memory stores and recalls up to 500 data sets.
Stored readings can be transferred into the computer by USB communication interface.
Multi-mode power scheme ( batteries, power adapter or USB port) ensures that use the meter smoothly


METER INCLUDES

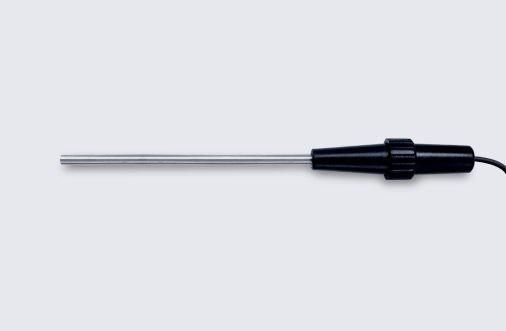

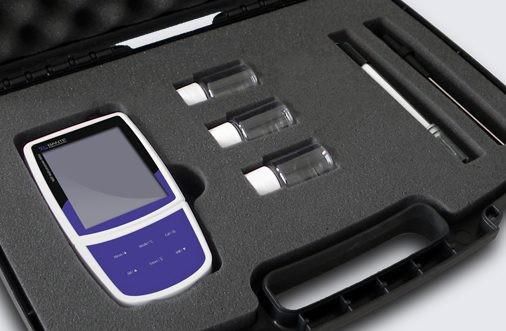

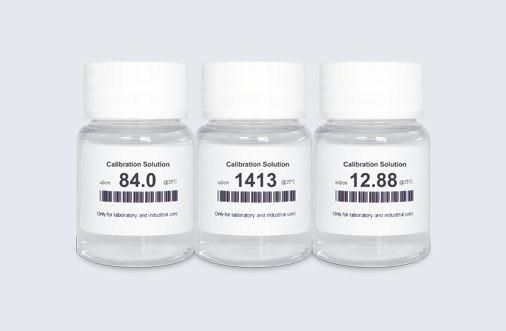

Conductivity electrode (range10 ), temperature probe, standard solutions(84μS/cm, 1413μS/cm, 12.88mS/cm),carrying case.
OPTIONAL ELECTRODES
CON-0.1 conductivity electrode (K=0.1):
Suitable for measuring the low conductivity liquids (<10μS/cm), e.g., pure water
CON-10 conductivity electrode (K=10):
Suitable for measuring the high conductivity liquids (>20mS/cm), e.g., seawater.

The meter must be equipped with the CON-0.1 and CON-10 conductivity electrodes for the full-range measurements


Specifications:

Model	Bante520-S
Conductivity
Range	0.01~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Accuracy	±0.5% F.S
Resolution	0.001, 0.01, 0.1, 1
Calibration Points	1 to 3 points
Calibration Solutions	10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm, 111.8mS/cm
Temperature
Range	0~105°C, 32~221°F
Accuracy	±0.5°C
Resolution	0.1°C, 0.1°F
Calibration Points	1 point
Calibration Range	Measured value ±10°C
General
Temperature Compensation	0~100°C, 32~212°F, Manual or Automatic
Temperature Coefficient	0.0~10.0%/°C
Compensation Modes	Linear or Pure water
Cell Constant	K=0.1, 1, 10 or Custom
Reference Temperature	20°C or 25°C
Data Hold	Manual or Auto-Endpoint
Stability Criteria	Low or High
Calibration Due Alarm	1 to 31 days or Off
Power Off	Manual or Automatic (10, 20, 30 minutes)
Reset Function	Yes
Memory	Stores up to 500 data sets
Output	USB communication interface

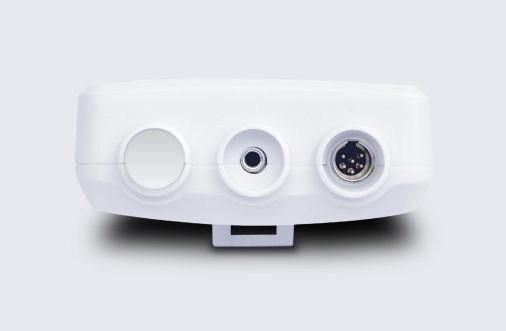

Connector	6-pin mini plug
Display	LCD
Power	3×1.5V AA batteries or DC5V power adapter
Battery Life	Approximately 150 hours (Turn off the backlit)
Dimensions	170(L)×85(W)×30(H)mm
Weight	300g

Our Company:

Delivery time: usually 3-15 days
Warranty: 12months
Payment methods: T/T, Western Union, Paypal, Credit Card, L/C

Our main lab instruments: mixer, shaker, water quality tester, autoclave, incubator, oven, water treatment(PH/DO/COND/Turbidity meter, pure water system), spectrophotometer, refractometer, peristaltic pump, heating mantle, hot plate, PCR machine, homogenizer, water bath and so on.
