• Model NO.：TP-122
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TP-122 Trademark TOP Origin China HS Code 9027809900 Production Capacity 200 Sets/Month

Product Description

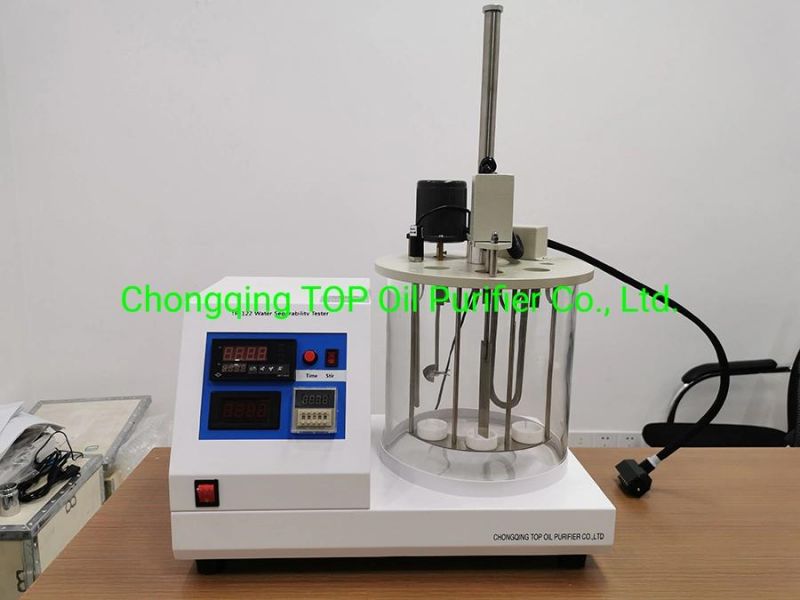

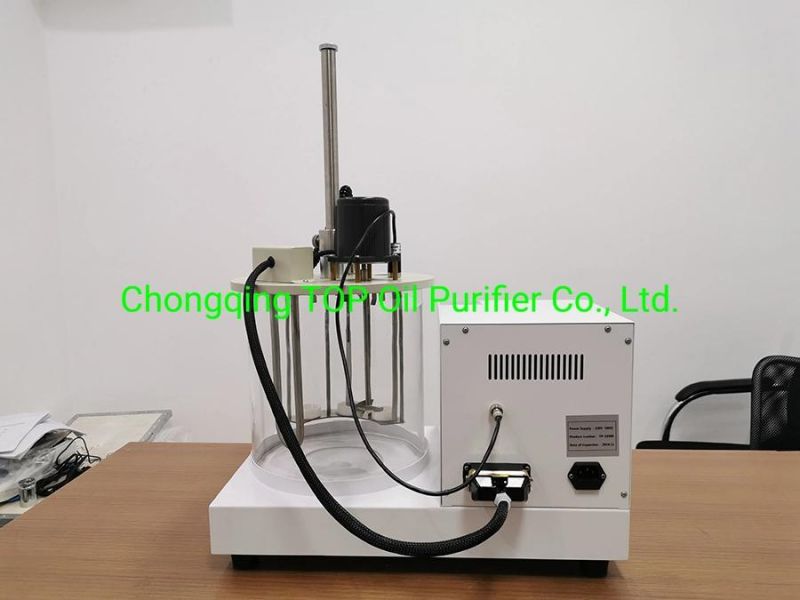

Portable ASTM D3948 D1401 Water Separation Test Equipment(TP-122)

Application:
This demulsification tester complies with GB / T7305, for the determination of separability in oil and synthetic liquid water.

Technical Parameters:
1. Applicable to testing separability of oil and synthetic liquid water. Applied to testing the oil, which kinematic viscosity is 30 ~ 100mm2/s when its temperature is 40 ºC , the test temperature was 54 ± 0.1 ºC, it also also be used for oil which viscosity is greater than 100mmm 2/s, the test temperature is 82 ± 0.1 ºC.
2. Temperature range: adjustable within room temperature to 100ºC
3. Temperature accuracy: ±0.1ºC
4. The input power: 1.5kw
5. Intelligent: a microprocessor-based intelligent instrument temperature control, digital display of temperature, temperature correction function, PID auto-tuning function
6. Bath stirring motor: 15W
7. Sample stirring motor: 1500 ± 15rpm
8. The structure of the form: 2 hole
