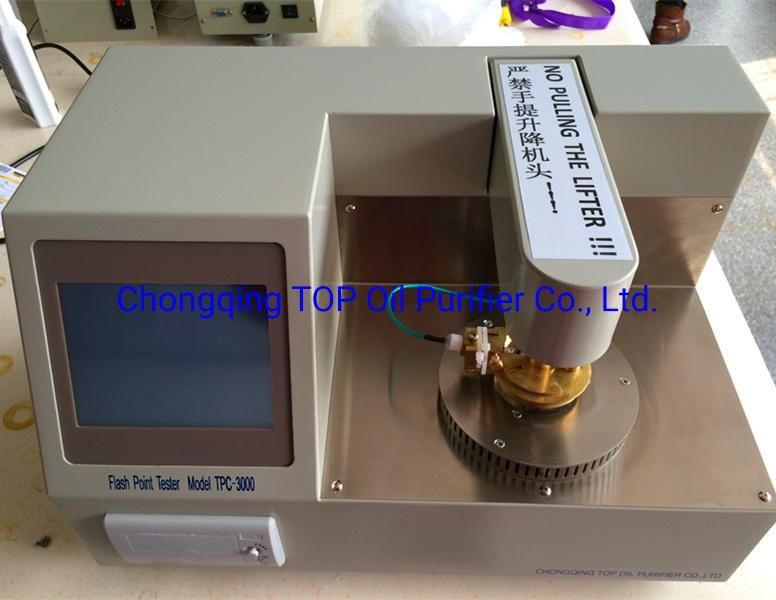

Open Cup Transformer Oil Flash Point Analyzer (TPO-3000)
Chongqing TOP Oil Purifier Co., Ltd.- Power：Electronic
- Usage：Auto Testing Machine
- Repeatability：+,-2ºC
- Transport Package：Wooden Case
- Specification：CE,ISO
- Trademark：TOP
Base Info
- Model NO.：TPO-3000
- Origin：China
- HS Code：9027809900
- Production Capacity：200 Sets,Month
Description
Basic Info.
Model NO. TPO-3000 Origin China HS Code 9027809900 Production Capacity 200 Sets/MonthProduct Description
Series TPO-3000 (open cup) transformer oil flash point testerProduct Application
The automatic flash point analyzer(open-cup) is designed in accordance with IS02592,GB267,GB3536 standard and reaches the industry requirement of UK and EU. It adopts microcomputer technology that makes realization of completely automatic.
It equips with color touch screen operations system and auto-high speed thermal printer.Most important,it has the function of self-checking.It is an ideal flash point analyzer(open-up) for petroleum,chemical,power station,environmental,railway, scientific research etc.
Product Features
1.7-inch color touch screen and man-machine conversation LCD display
2.Adopts high speed signal processor: precision simulation/digital converter circuit
3.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure;self-adjust the flash point.
4.Data storage function: store 300 groups testing data. It is timely to check historical records
5.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
6.Stirring,ignition,testing,alerting,cooling,printing are fully automatic.
7.Adaptive PID control algorithm: automatically adjust the heating curve according to standards
8.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
9.Security airless source of platinum alloy to ignite:stable,reliable and high precision
Technical Parameter
| Display | 7-inch color touch LCD display screen |
| Test method: | Thermocouple differential detection |
| Test range: | Room temperature-400ºC |
| Repeatability: | ±2ºC |
| Printer: | High speed thermal printer,paper size:44mm |
| Ignition mode: | Automatically electronic ignition |
| temperature Detection | Imported precision platinum resistance |
| Self-checking : | Printer, igniter, electromagnetic valve, the detection arm movements, ignition rod stroke ect. |
| Power consumption: | <700w |
| Temperature: | Atmospheric temperature: 10ºC-45ºC,humidity: 30-80% |
| Power: | AC220V±10% |
| Dimension | 400×300×240mm |
| Weight: | 20 kg |
