• Model NO.：P9800S
• Tube Pressure：5kv~50kv
• Pipe Flow：50μa~1000μa
• Vacuum Pump Rated Power：550W
• Instrument Rated Power：100W
• Transport Package：Wooden Package
• Trademark：wxi jinyibo
• Origin：Jiangsu Wuxi
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. P9800S Tube Pressure 5kv~50kv Pipe Flow 50μa~1000μa Vacuum Pump Rated Power 550W Instrument Rated Power 100W Transport Package Wooden Package Trademark wxi jinyibo Origin Jiangsu Wuxi Production Capacity 5 Sets/Month

Product Description

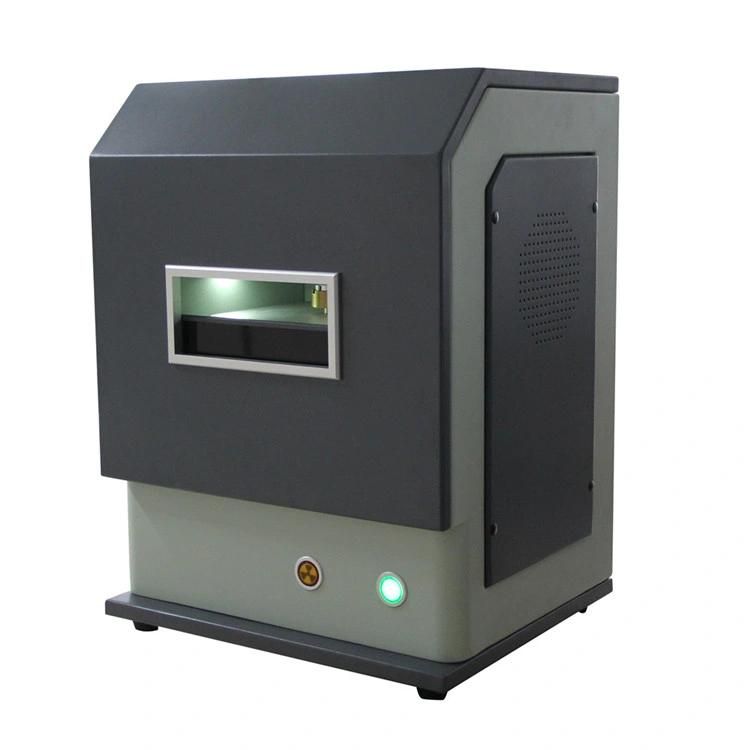

P9800S Full Elemental Cement Analyzer

Summary

Cement full elemental analyzer. The device uses digitized spectral analysis technology to analyze nine elements (Cl, K, Si, Mg, Al, S, P, Ca, Fe) in cement raw clinker at one time and automatically calculate the elemental composition of raw materials, with the analysis of speed, high precision, good stability, simple operation, low failure rate and other notable features of the cement enterprises used to control the production played a very good effect.

Applications

Cement manufacturing industry: raw materials, raw materials, clinker, cement and other ingredients analysis;

Limestone industry: Limestone various composition analysis.

Parameter

Item	Index
Elements	Na, Mg, Al, Si, P, S, Cl, K, Ca, Mn, Fe analyzed by our instrument
Sample demand	10-15g
Detector resolution	Better than 140ev
Tube voltage	0-50Kv
Tube current	1~1000μA
Analysis range	1ppm-99.9%
Energy range	1-40keV
Multi-element analysis at the same time	9 kinds of elements can be analyzed simultaneously
Measure time	Only 1-3 minutes to get the content of all the elements that need to be measured
Instrument analysis accuracy	standard deviation≤0.08%
Analysis error	Better than the national standard requirements
Radiation dose	<25μsv/h
Operation temperature	10~35ºC
Humidity	30~70%RH
Power supply	AC 220V±10%, 50/60Hz

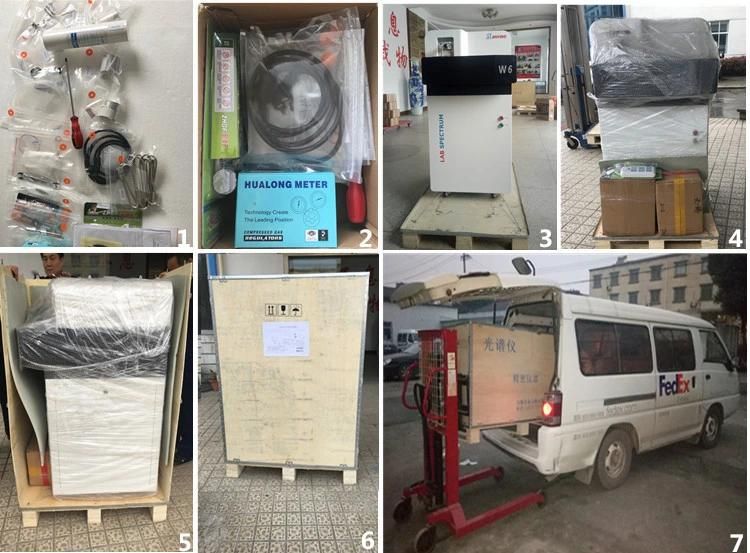

Packing & Shipping
