Handheld Combustible Toxic Ethylene Gas Detector
NANBEI INSTRUMENT LIMITED- Brand：Nanbei
- Customized：Non-Customized
- Portable：Portable
- Certification：CE
- Gas：C2H4
- Type：Photoelectric Colorimetric Analyzer
Base Info
- Model NO.：AP-S series
- Product Name：Gas Detector
- Gas Detection：Ethylene(C2h4)
- Principle of Detection：Electrochemistry
- Detection Range：0-10, 50, 100, 200, 500, 1000, 1500ppm
- Life：2 Years (Electrochemical Sensor) 5 Years (Host)
- Resolution：0.01, 0.1, 1 Ppm
- Accuracy：2% Fs
- Repeatability：2% Fs
- Response Time：T90 <20s
- Display：LCD Screen
- Transport Package：Carton Box
- Specification：3kg
- Trademark：NANBEI
- Origin：Zhengzhou, China
- HS Code：9027100090
- Production Capacity：500sets a Month
Description
Detection of gas: ethylene C2H4Principle of detection: electrochemistryDetection range:0-10,50,100,200,500,1000,1500ppmLife:2 years (electrochemical sensor) 5 years (instrument)Resolution: 0.01,0.1,1 ppmAccuracy: ≤ ± 2% FSRepeatability: ≤ ± 2% FSResponse time: T90 <20SWarm-up time: 1minDisplay: Large screen OLCD displayAlarm mode:buzzer: 75 dBLED warning light: 20 meters visibleAlarm error:≤ ± 3% Alarm set value
Sampling method:
Sampling method: pump typ
Sampling flow: 250-350ml / min
Electrical characteristics:
Battery capacity: built-in 2400mA lithium battery, with charging protection
Battery voltage: 3.7V
Working hours: 24 hours continuous working hours
Charging time: 4 hours
Storage:> 300,000
Storage frequency: 1S / time, 10S / times, 60S / times
Data Interface: USB
Structural characteristics:
Main material: ABS + non-slip silicone
Size: 132 * 73 * 32mm
Pump suction pipe: 20cm
Weight: 210g
Protection class: IP65
Explosion protection rating: ExdII CT6
Work environment:
Temperature range: -20 ºC ~ 50 ºC
Humidity range: 10 ~ 95% RH (no condensation)
Pressure range: 86KPa ~ 106KPa
Application areas:
Petroleum, petrochemical, metallurgical, chemical, environmental protection, paper, electricity, animal husbandry, preservation
Printing and dyeing, municipal, scientific research, education, national defense, fire, pharmaceutical, coal mine, disinfection
Parts List:
Ethylene detector host, charger, warranty card, brochures, test reports, packaging aluminum box
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
Company Show

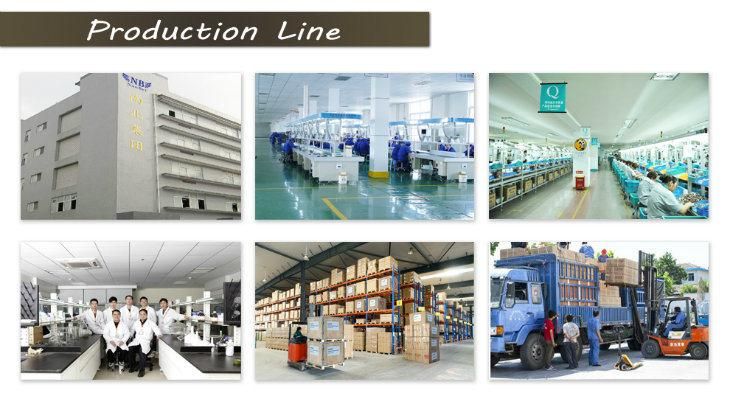

Factory Show
Certification

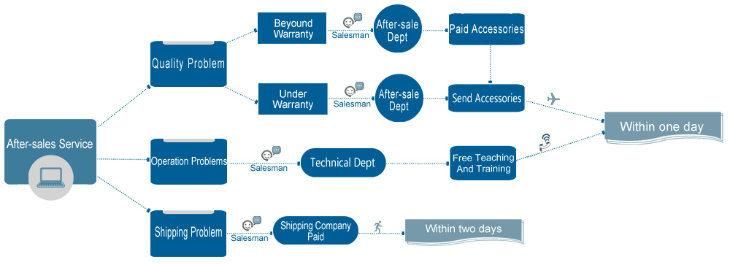

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
