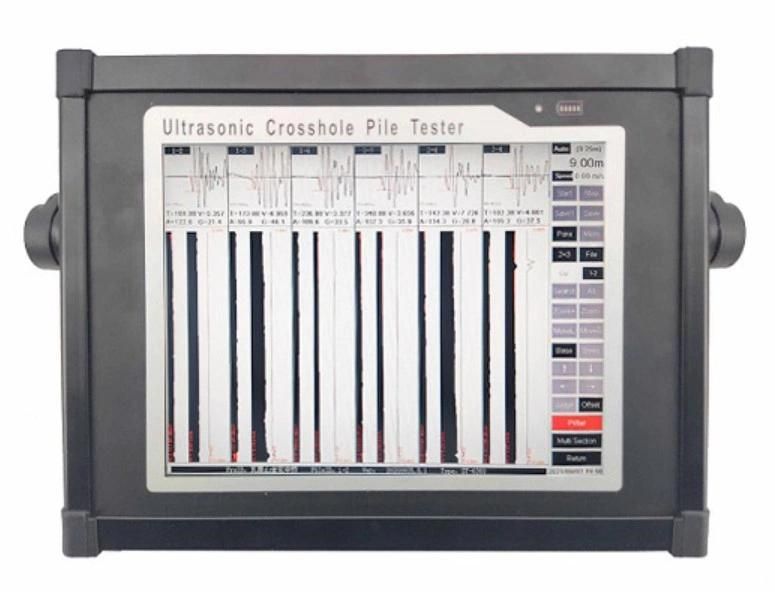

6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System

Beijing Samyon Instruments Co., Ltd.
  • After-sales Service：24hours
  • Warranty：One Year
  • Standards：ASTM D6760
  • Record Length：0.5~4K
  • Sampling Intervals：0.03~1024us
  • Channel：2channels,3channels,4channels

Base Info

  • Model NO.：6 Sections
  • Sampling Mode：Synchronous Sampling
  • Transmit Voltage(V)：50,250,500,1000 Adjustable
  • Transport Package：Carton
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：9031809090
  • Production Capacity：100sets Per Month

Description

ItemsTechnical ParametersChannelsFour ChannelsMaster ModeARM A8 1GHzOperating SystemWinCE of Chinese operating systemSampling ModeSynchronous SamplingDisplay Mode10.4 inch industrial bright LCD screen 1024*768Operating ModeImports of industrial resistive touch screenStorage Mode(16GB)Electrical Hard DiskDepth Measurement ModeTwo-way Counting and Real-Time Repetition MeasurementIntervals of Sampling0.03μs ~1024μsPhonatory Time Measurement Accuracy0.03μsPhonatory Time Measurement Range2×106μsRecord Length0.5~4kTransmit Voltage(V)50/250/500/1000 AdjustableDynamic Range of Gain90dBControl Accuracy of Gain0.4dBTest ProfileSix sectionsTransmit Pulse Width20μsBroadband2~500kHzReceiver Sensitivity≤10μVInter-channel Cross-talk≤-60dBData-Transmission ModeUSB2.0 High-speed interfaces and USB TransmissionPower-Supply ModeBuilt-in Lithium Battery(Working Hours≥8 Hours )Operating Temperature-10ºC~+45ºCMain Machine Dimensions325×243×56mmMain Machine Weight3.5kgOthersIntelligent Search, Real-time Control of Sampling in all Channels, Parameters of Dynamic sound , Automatic Interpretation, Cryptographic Measurement, Repetition Measurement.Counting Device4 SlotsDirectionTwo-way CountingResolution Ratio0.3cmSpace between Measuring Point5cm~100cm, OptionalMax Hoisting SpeedSix sections, up to 60 Meters per minute

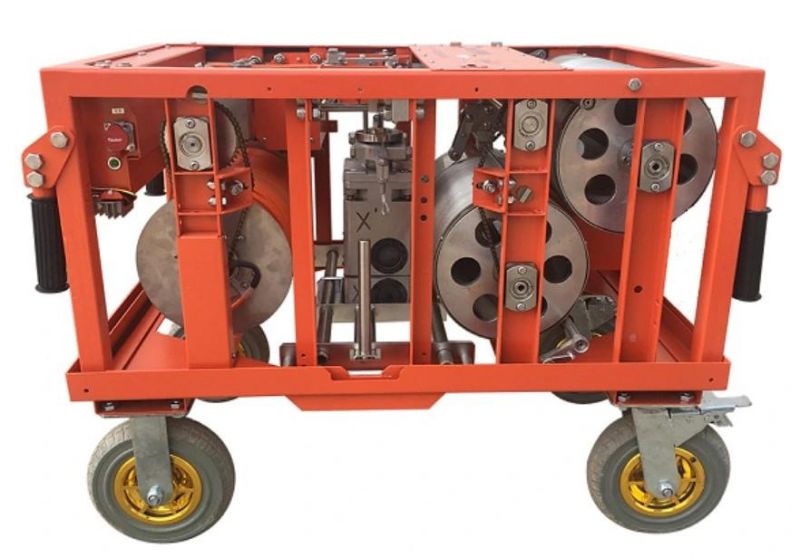

 HPTLPTL-HPT 6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System  6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging SystemSLPTDRILLHOLECSL6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System
6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System6 Sections Ultrasonic Cross Hole Pile Testing System/ Sonic Logging System
