CB Circuit Breaker Time Trip Velocity Analyzer High Voltage Switch Circuit Breaker Characteristics Analyzer
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Time Measurement Range:4000ms
- Time Measurement Error:< 0.1ms
- Resolution:0.01ms
- Test Current:25~100A
- Vibration Measurement Range:0~5000g; Error: <3%
- Coil Current Measurement:Range: 0~20A; Resolution: 0.001A; Error:<0.01A
Base Info
- Model NO.:GDGK-307
- Internal DC Power Source:Voltage: 12~265V; Current:0~20A
- Pre-Insertion Resistance Measurement:Range: 50~5000ohm; Error :<1%Rdg+2D
- Power Supply:AC220V±10%; 50Hz±10%
- Working Environment:Temperature: -10~50°c; Humidity:<80%
- Transport Package:Standard Wooden Case
- Specification:ISO
- Trademark:GOLD
- Origin:Chongqing
- HS Code:9031809090
- Production Capacity:100PCS,Month
Description

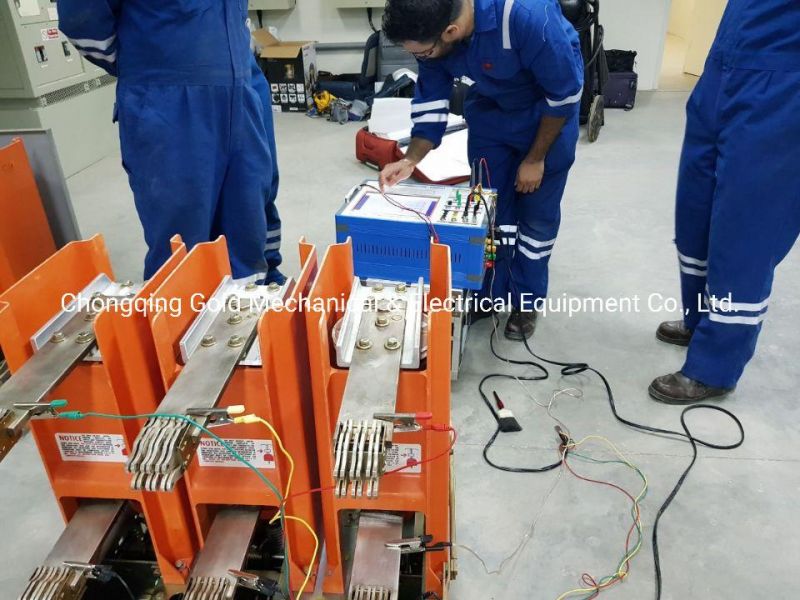

Speed measurement250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D25mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2DAngle sensor: 0~20m/s; error: <0.5%RDG+2DAcceleration sensor: 0~20m/s; error: <5%RDG+2DCoil current measurementRange: 0~20A; resolution: 0.001A; error: <0.01AVibration measurementRange: 0~5000G; error: <3%Internal DC power sourceVoltage: 12~265V; current:0~20AData SaveBuilt-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connectionPower supplyAC220V±10%; 50Hz±10%Working environmentTemperature: -10~50°C; Humidity: <80% GDGK-307 Circuit Breaker Analyzer Worked in UAE:

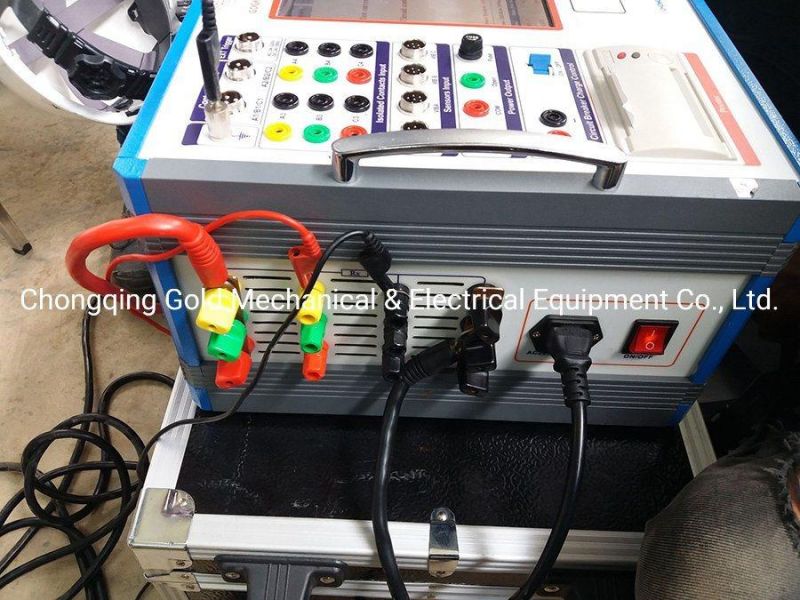

GDGK-307 Circuit Breaker Analyzer worked in Thailand:

Product Details

GDGK-307 Circuit Breaker Analyzer worked in Thailand:
