AC50kv DC70kv 50kVA Hipot Test Set Power Frequency Voltage Withstand Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Maximum Output Voltage：50kv~250kv
- Output Capacity：3kVA~200kVA
- Structure：Seperate Structure, with Controller and Transforme
- Work Temperature：0~50 Degree
- Hv Transformer Mode：Single Phase
- Rated Frequency：50Hz,60Hz
Base Info
- Model NO.：GDJZ
- Work Humidity：<80%
- Warranty：12 Months
- Product Name：AC Hipot Tester
- Transport Package：Standard Wooden Case
- Specification：100kg
- Trademark：GOLD
- Origin：Chongqing, China (Mainland)
- HS Code：9031809090
- Production Capacity：500PCS,Month
Description
Capacity
KVA
GDJZ-50 Series
GDJZ-100 Series
GDJZ-150 Series
AC
DC
AC
DC
AC
DC
3kVA
50KV
70KV
5kVA
50KV
70KV
100KV
140KV
10kVA
50KV
70KV
100KV
140KV
150kV
210KV
15kVA
50KV
70KV
100KV
140KV
150kV
210KV
20kVA
50KV
70KV
100KV
140KV
150kV
210KV
25kVA
50KV
70KV
100KV
140KV
150kV
210KV
30kVA
50KV
70KV
100KV
140KV
150kV
210KV
50kVA
50KV
70KV
100KV
140KV
150kV
210KV
Notice:
If the maximum voltage is less than 100kv we will offer dry HV transformer for the tester, otherwise we will offer oil HV transformer for the tester;
The capacity and maximum voltage output could be customized according to the requirements of customer if you can not find the right one in this table;
The weight listed in the table is HV transformer only it does not include the weight of main control box. Please confirm the total weight of the tester with our sales engineer before order;

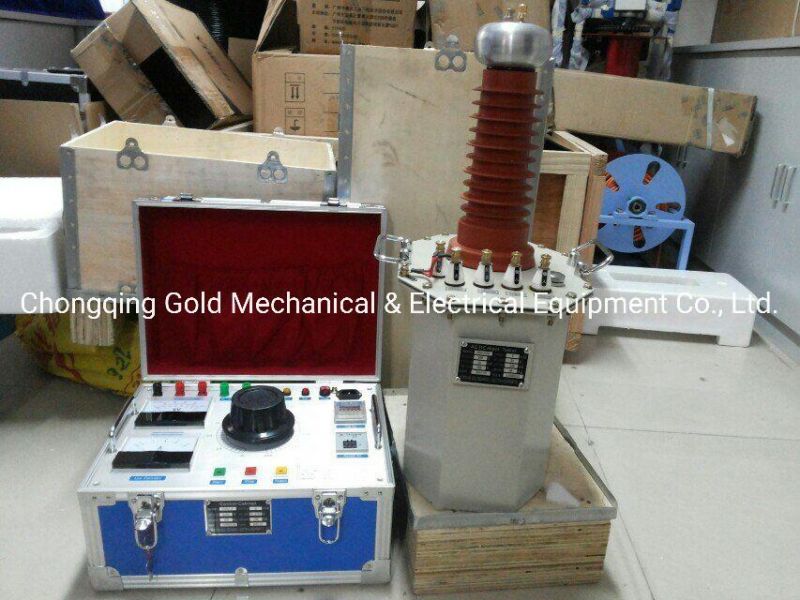

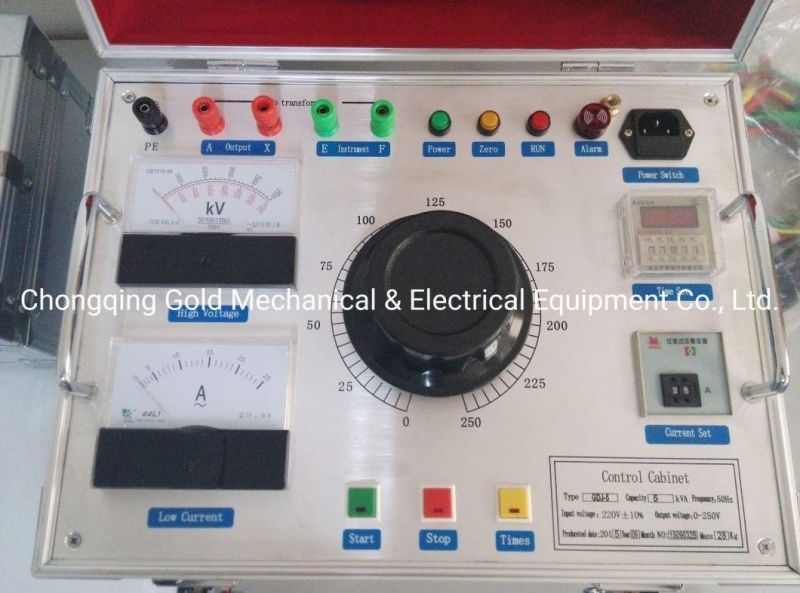

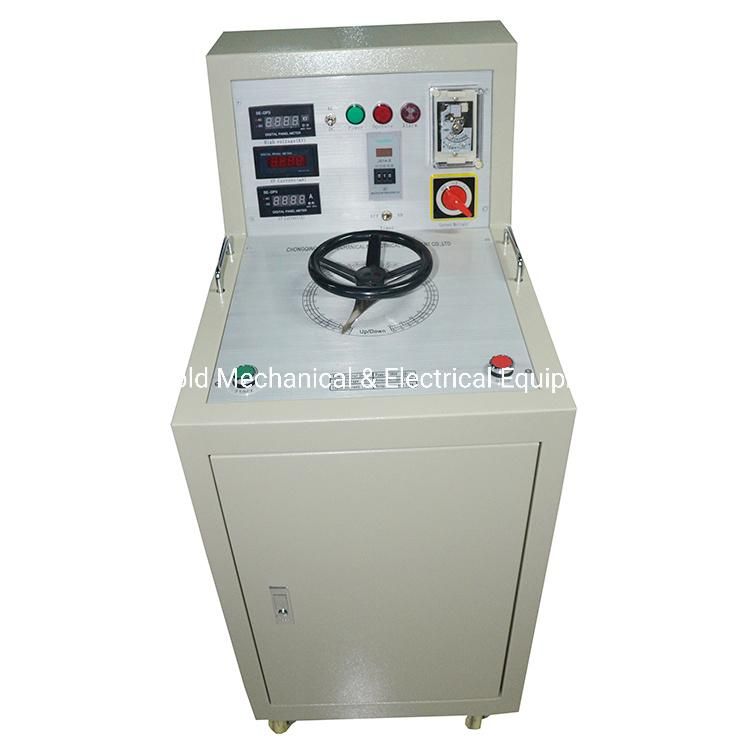

Real Pictures:
