• Model NO.：K60-V
• Working Voltage：3.7V Rechargeable Lithium Battery
• Weight：Approx. 300g
• Alarm Type：Vibration Alarm with Light, Sound
• Sensor Life：2-5 Years
• Explosion-Proof Grade：Ex Ib Iic T3
• Sampling：Pump,Diffusion

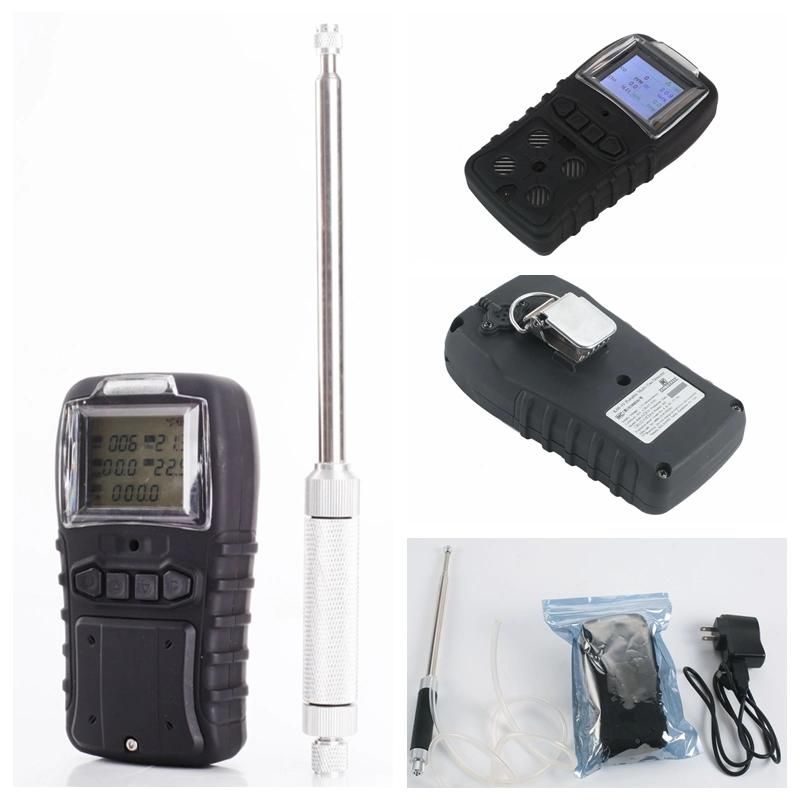

• Accessories：Detection Probe&Rubber Protection Case
• Transport Package：Carton
• Specification：133x70x36mm
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000PCS

Basic Info.

Model NO. K60-V Working Voltage 3.7V Rechargeable Lithium Battery Weight Approx. 300g Alarm Type Vibration Alarm with Light, Sound Sensor Life 2-5 Years Explosion-Proof Grade Ex Ib Iic T3 Sampling Pump/Diffusion Accessories Detection Probe&Rubber Protection Case Transport Package Carton Specification 133x70x36mm Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 1000PCS

Product Description

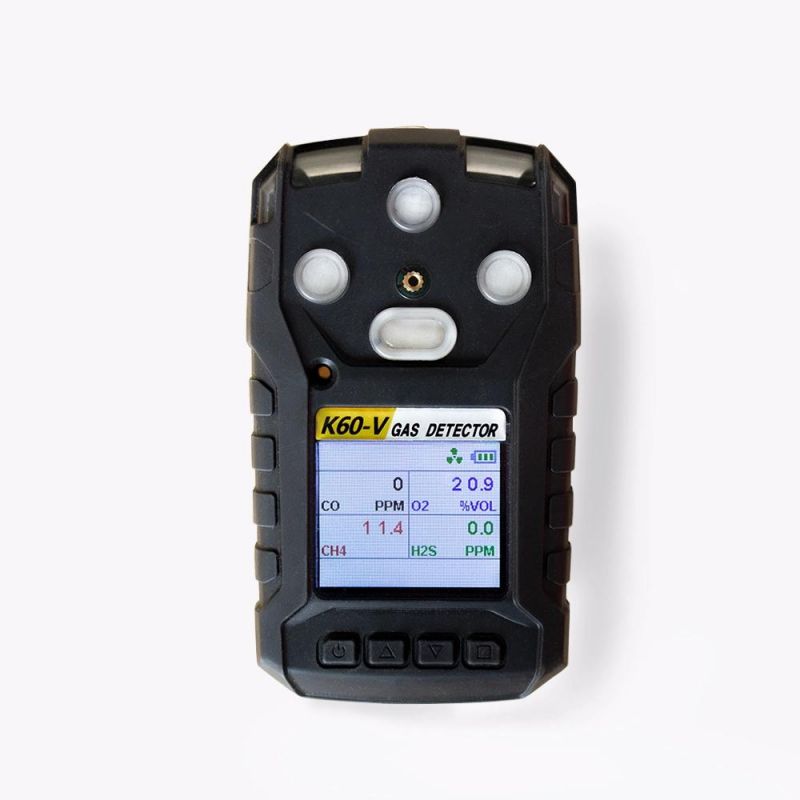

O2, CO2, H2S, CH4, PID Portable Multi Gas Detector Pump and Diffusion in Mine Gas Safety Monitoring

The K60-V is a full-featured, compact, 5 in1 sensor gas detector for VOC ,oxygen, combustibles, hydrogen sulfide,carbon monoxide or sulfur dioxide. Key features include easy-to-operate design, a water-resistant case and high sensitivity sensors.


>>>Technical Specification

Dimension	133 L×70 W×36 H mm
Weight	Approx. 300g
Sampling	Pump, diffusion
Working Temperature	- 10 °C ~ + 44 °C
Relative Humidity	15%~90% RH (non-condensing)
Power	3.7V rechargeable lithium battery, continuously work for over 10 hours
Sensor Life	One year for combustible gas sensor; two years for oxygen and toxic gases sensors
Display	LCD display / color screen LCD display
Alarm Mode	Acousto optic alarm
Explosion-proof Grade	Ex ib IIC T3
Warranty	1 year



Gas type	Detection range	Resoltion	T90 response time	Alarm set point
O2	0-30%Vol	0.1%Vol	T90≤15s	18%Vol/23%Vol
Ex	0-100%LEL	0.1%LEL	T90≤5s	25%LEL/50%LEL
CO	0-1999ppm	1ppm	T90≤25s	50ppm/100ppm
H2S	0-100ppm	0.1ppm	T90≤30s	10ppm/20ppm

>>>Key Features

1. Light weight and small size design(less than 300g), easy to operate
2. Excellent built-in vibration alert for use in areas of high ambient noiseapplications
3. 90dB audible vibration alarm
4. Strong, protective, concussion-proof shockproof design for normal working in harsh enviroments
5. Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage
6. Rechargeable lithium battery for over 10 hours continuously operation
7. Intuitive simple-to-operate four-button
8. User interface with built-in pump
9. 9600 sets data record
10. 2+2 digits LCD real time displays gas concentration and corresponding gas types
11. Full featured self-test:sensors, lithium battery, circute integrity and acousto optic vibration alarm function
12. Accessories:operator's manual, calibration hose, charger and conversion plug
13. CERTIFICATIONS: CMC, Ex, MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)


If you are interested in our products, please feel free to contact me.Thank you!
